Specifications

Technical Data

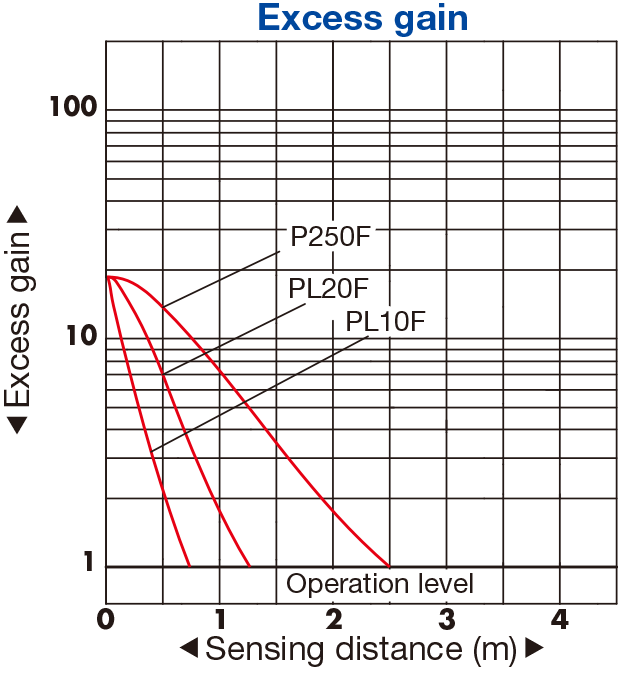

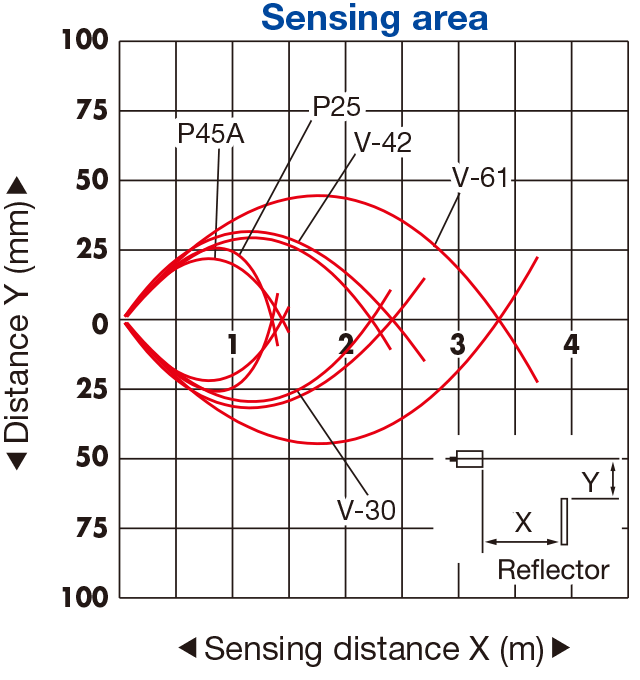

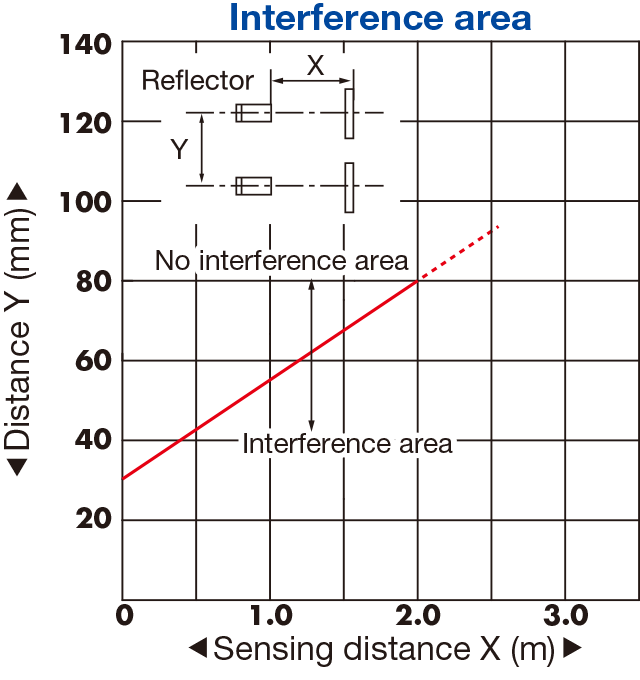

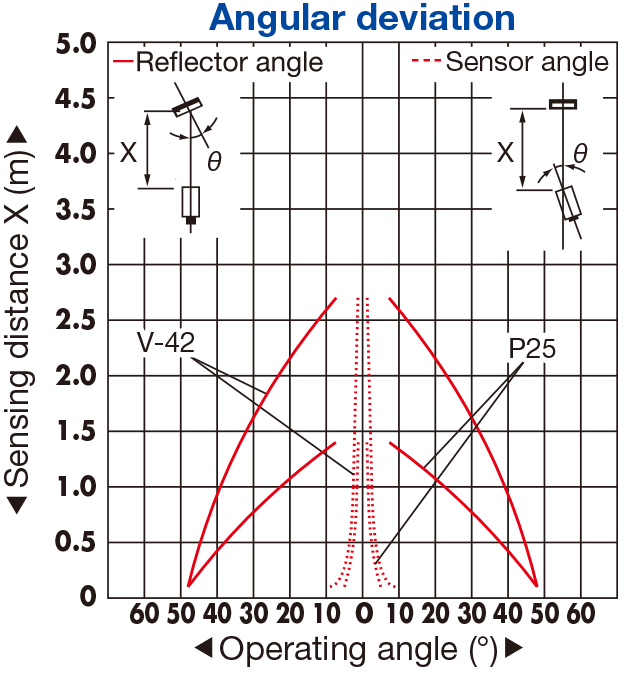

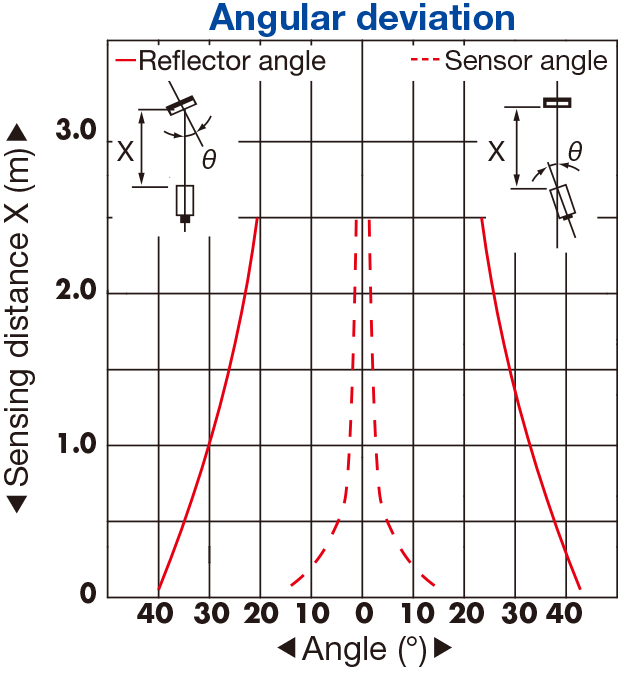

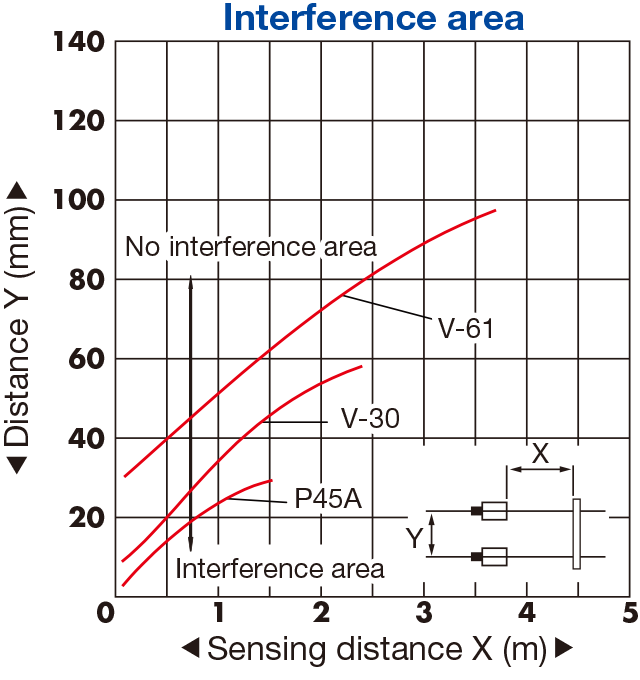

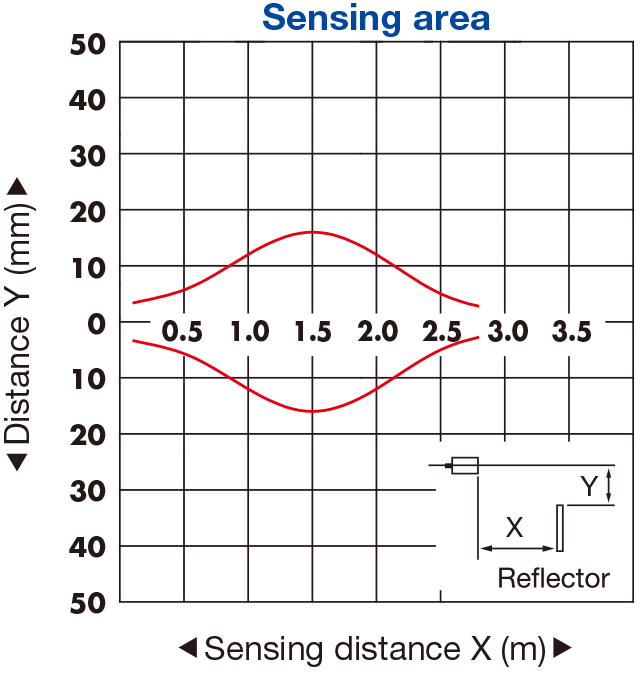

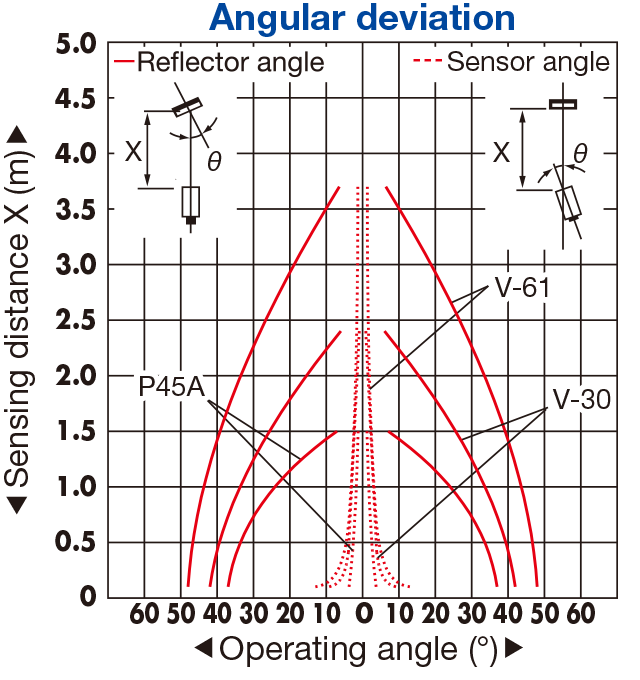

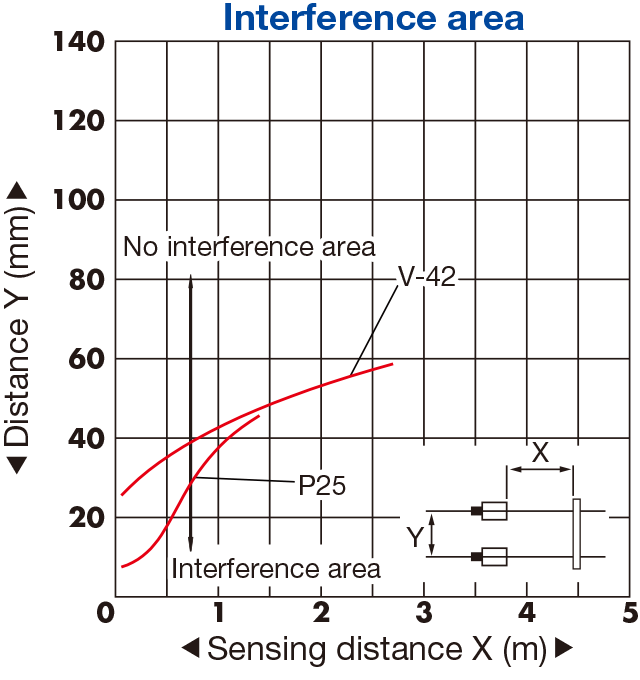

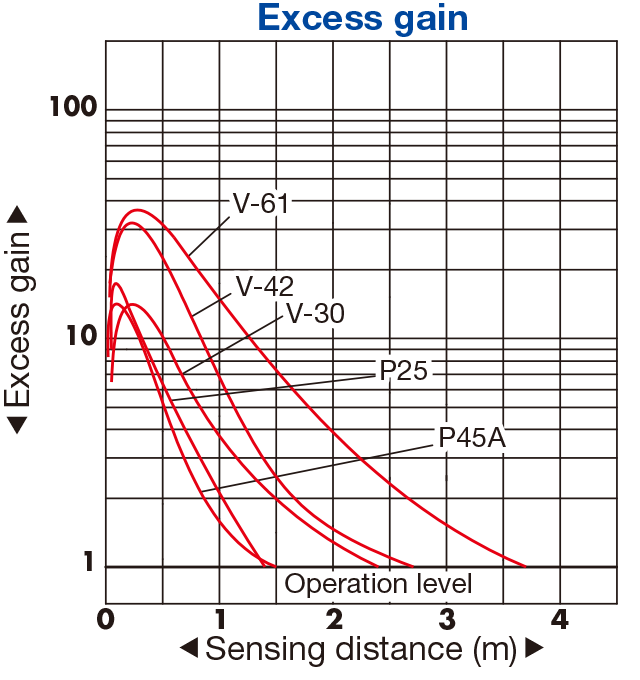

Typical characteristic data

Technical Data

Type			Low cost	Coaxial type
Model	NPN	Cable type	Z3R-Q200N	ZR-QX200N
	NPN	Connector type	Z3R-Q200CN4	ZR-QX200CN4
	PNP	Cable type	Z3R-Q200P	ZR-QX200P
	PNP	Connector type	Z3R-Q200CP4	ZR-QX200CP4
Sensing distance			0.01 to 2 m*¹	0 to 2 m*²
Light source			4 element red LED	Red LED

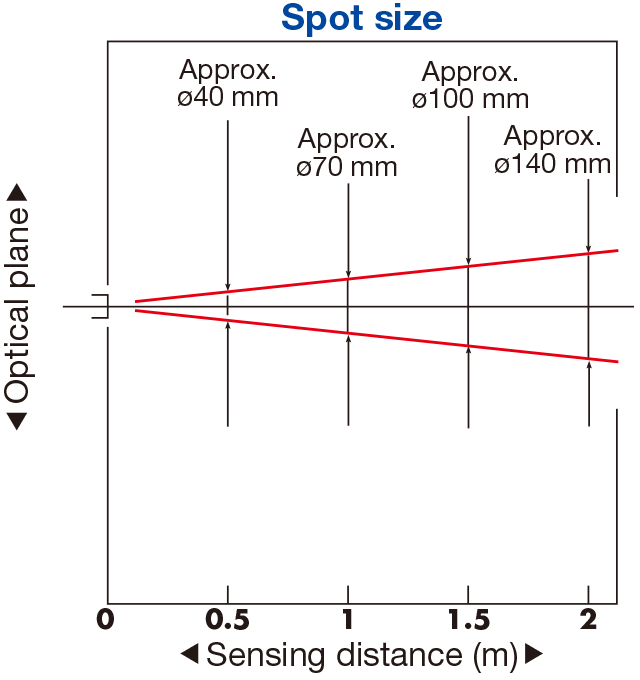

Spot size			Approx. ø140 mm (at a distance of 2 m)	Approx. ø60 mm (at a distance of 2 m)
Response time			500 μs or less
Distance adjustment			1-turn potentiometer
Indicators			Output indicator (orange), stability indicator (green)	Output indicator (orange)
Control output			NPN/PNP type open collector Max. 100 mA/30 VDC
Output mode			Light ON / Dark ON selectable
Connection type			Cable type: Cable length: 2 m ø3.8 / Connector type: M8, 4-pin
Rating	Supply voltage		10 to 30 VDC, including 10% ripple (p-p)
Rating	Current consumption		20 mA or less
Environmental resistance	Ambient temperature/humidity		-25 to +55℃ (no freezing) / 35 to 85% RH (no condensation)
	Ambient illuminance		Sunlight: 10,000 lx Incandescent lamp: 3,000 lx or less
	Vibration resistance		10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
	Shock resistance		Approx. 100 G (1000 m/s²), 3 times in each of the X, Y, and Z directions
	Degree of protection		IEC standard: IP67
Material			Housing: ABS Front cover: PMMA
Weight without cable			Approx. 10 g
Included accessories			None	Reflector: P250F Mounting bracket: BEF-W100-B *³

*1. When reflector V-61 is used.
*2. When reflector P250F is used.
*3. Mounting bracket BEF-W100-A is included with the connector type.
• Specifications are subject to change without prior notice for product improvement purposes.
