Circuit Diagram

Output circuit diagram

Z3R-Q200☐

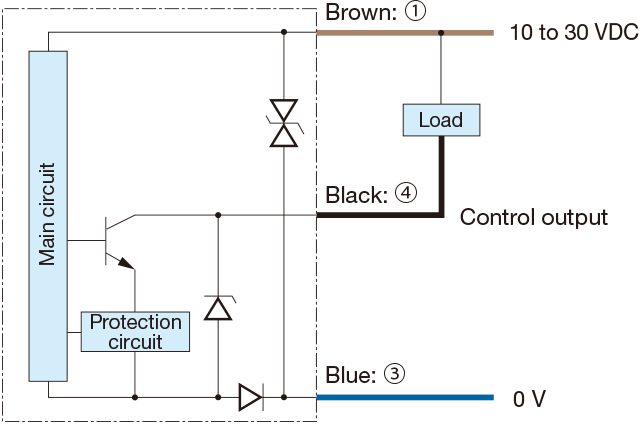

• NPN output type



• PNP output type



ZR-QX200☐

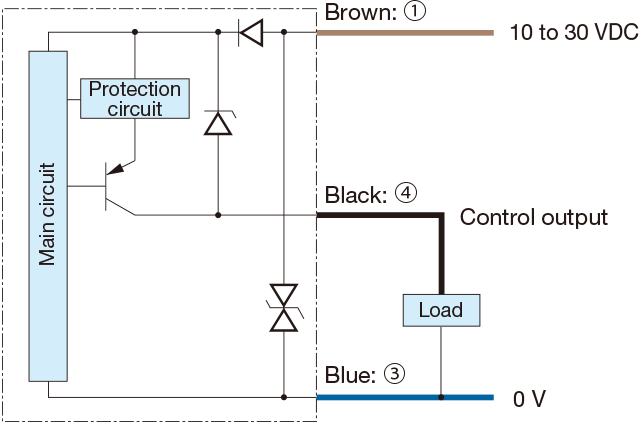

• NPN output type

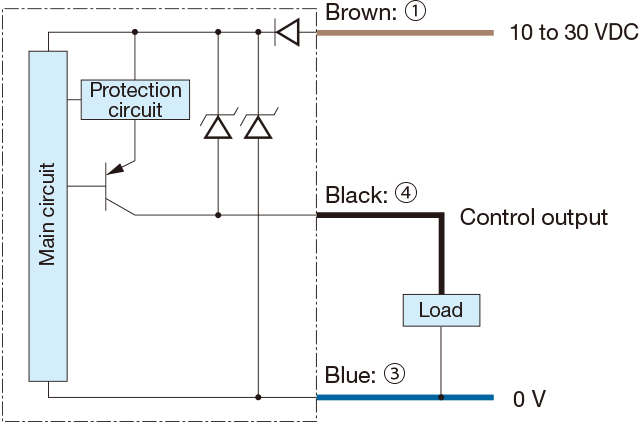

• PNP output type

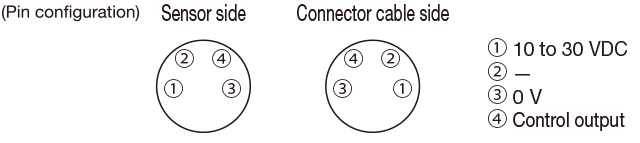

• Connector type



• Connecting

  • 1 to 4 are connector pin No.

  Notes

  • When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
  • Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  • Avoid using the transient state while the power is on (approx. 100 ms).
  • The connector direction is fixed as in the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.
