Specifications
Technical Data
| Type | |||||
|---|---|---|---|---|---|
| Mode | NPN | Cable type | Z2T-2000N | Z2R-400N | Z2D-80N |
| Connector type | Z2T-2000CN4 | Z2R-400CN4 | Z2D-80CN4 | ||
| PNP | Cable type | Z2T-2000P | Z2R-400P | Z2D-80P | |
| Connector type | Z2T-2000CP4 | Z2R-400CP4 | Z2D-80CP4 | ||
| Sensing distance | 25 m | 0.01 to 4.4 m*1 | 0 to 1 m*2 | ||
| Light source | 4 element red LED, wavelength 640 nm | ||||
| Spot size | Approx. ø1000 mm (at distance of 25 m) |
Approx. ø220 mm (at distance of 4.4 m) |
Approx. ø140 mm (at distance of 1 m) |
||
| Response time | 500 μs or less | ||||
| Hysteresis | - | - | 20% Max. | ||
| Distance adjustment | 1-turn potentiometer | ||||
| Indicators | Output indicator: orange LED, Stability indicator: green LED (no indicator equipped on through-beam type emitter) |
||||
| Control output | NPN/PNP type Open collector Max. 100 mA/30 VDC | ||||
| Output mode | Light ON / Dark ON selection switch | ||||
| Connection type | Cable type: Cable length: 2 m ø3.8 mm Connector type: M8, 4-pin |
||||
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | |||
| Current consumption | Emitter: 11 mA or less Receiver: 8 mA or less |
13 mA or less | 15 mA or less | ||
| Applicable regulations | EMC | EMC Directive (2014/30/EU) | |||
| Environment | RoHS Directive (2011/65/EU), China RoHS (MIIT Order No.32) | ||||
| Applicable standards | EN 60947-5-2, IEC 60825-1 | ||||
| NRTL certification | UL Recognized Components Proximity Switch Certified for US and Canada. |
||||
| Company standards | Noise resistance: Feilen Level 4 cleared | ||||
| Environmental resistance | Ambient temperature/humidity | -25 to +55°C (no freezing) / 35 to 85% RH (no condensation) | |||
| Ambient illuminance | Sunlight: 10,000 lx Incandescent lamp: 3,000 lx | ||||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
||||
| Shock resistance | Approx. 100 G (1000 m/s2); 3 times in each of the X, Y, and Z directions |
||||
| Degree of protection | IP67 | ||||
| Material | Housing: ABS (glass fiber filled), Front cover: PMMA | ||||
| Weight without cable | Approx. 10 g | ||||
| Included accessories | Mounting bracket: BEF-W100-B *3 |
Mounting bracket: BEF-W100-B *3 Reflector: V-61 |
Mounting bracket: BEF-W100-B *3 |
||
*1 When reflector V-61 is used
*2 Using a 100 × 100 mm white sheet of paper.
*3 Mounting bracket BEF-W100-A is included with the connector type.
Typical characteristic data
Z2T-2000☐
When slit mask is attached Z2T-2000☐
Z2R-400☐

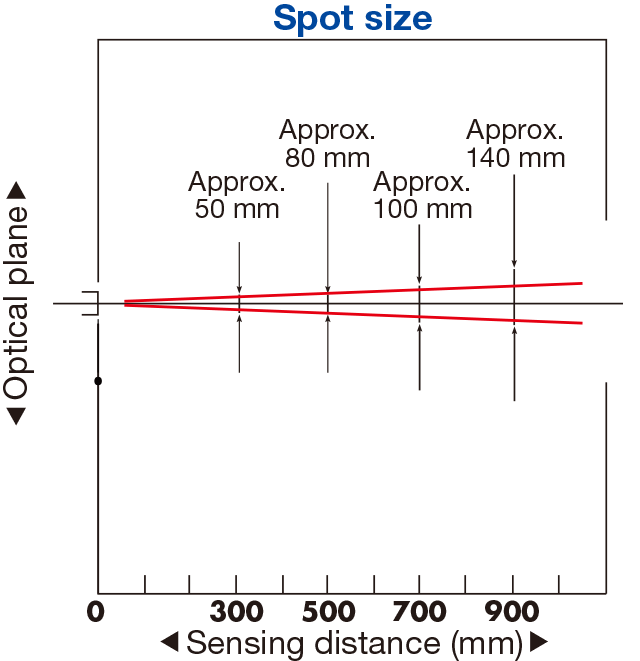

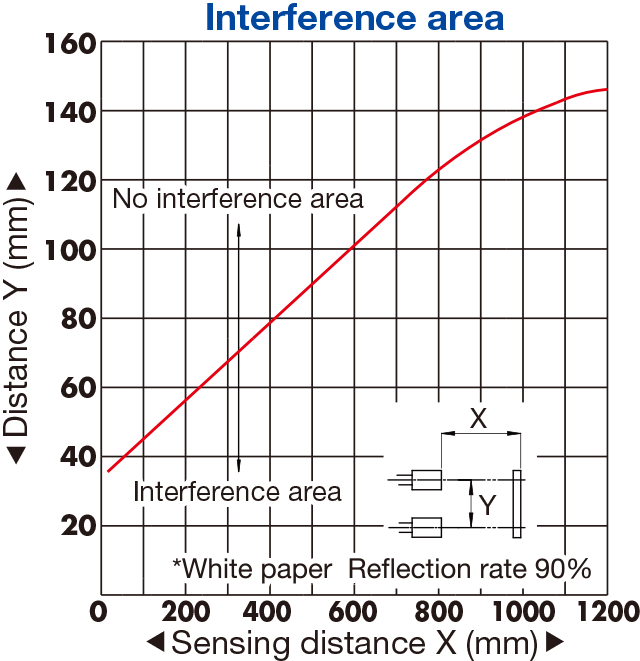

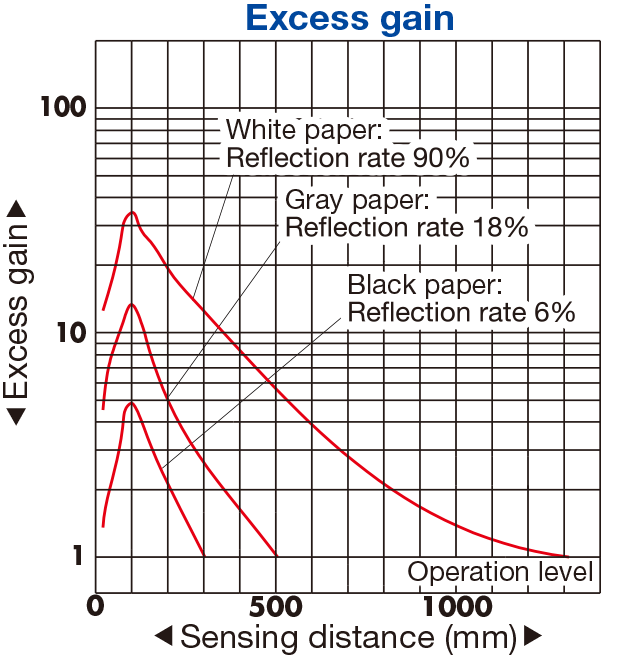

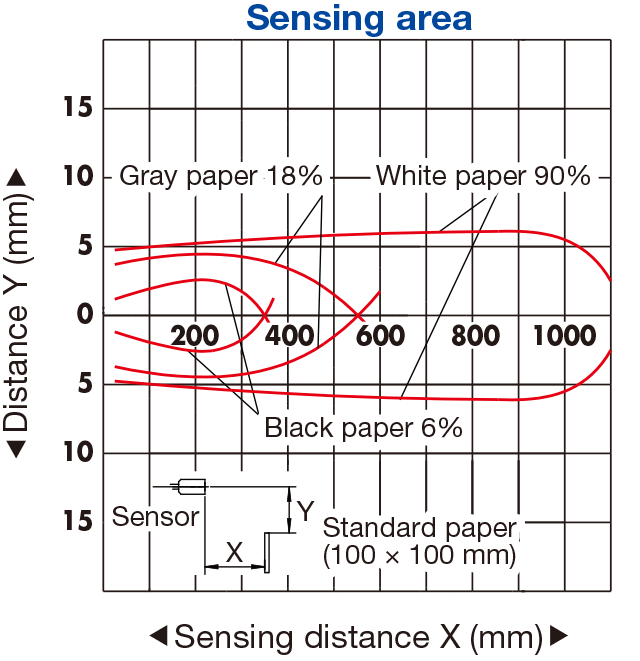

Z2D-80☐
