Dimensions

Sensor

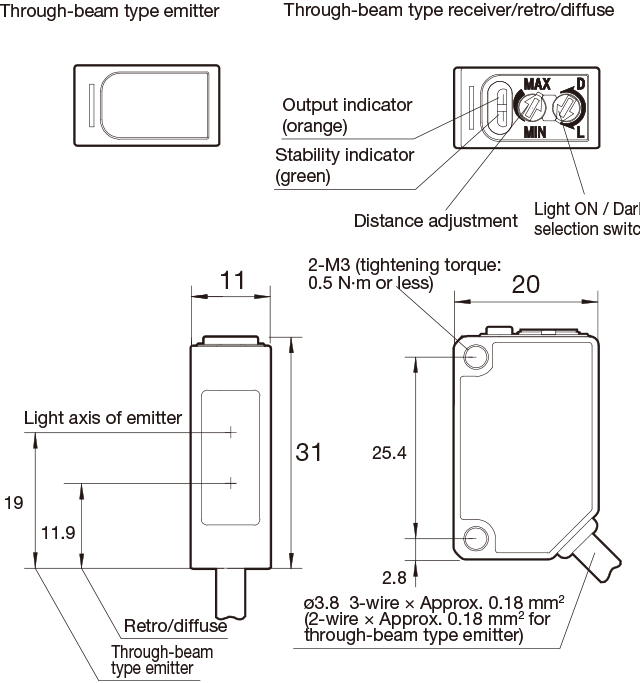

• Cable type



• Connector type



Mounting bracket

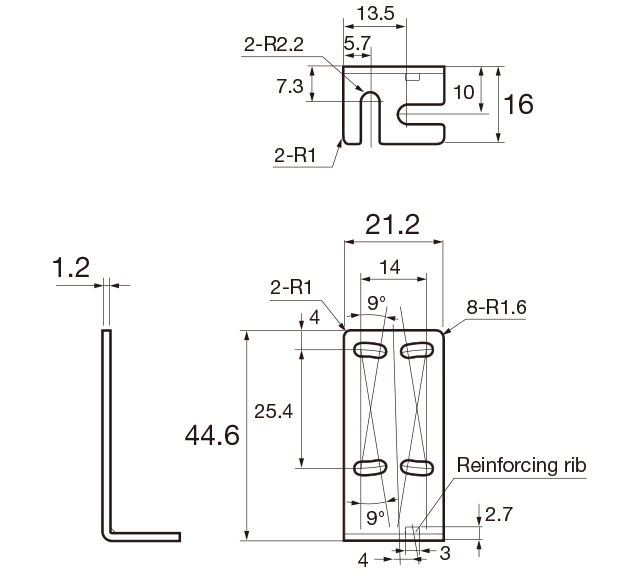

• BEF-W100-B (included with cable type)

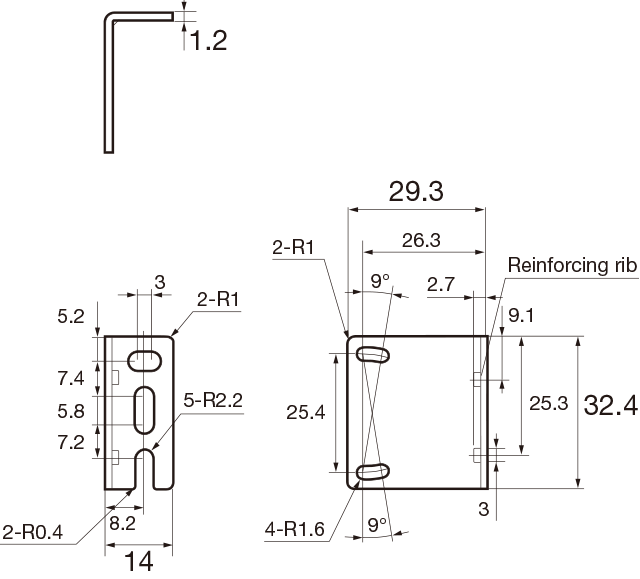

• BEF-W100-A (included with connector type)



Reflector

• V-61: Standard type reflector
  (included with retro-reflective type)



• V-42: Small reflector (optional)

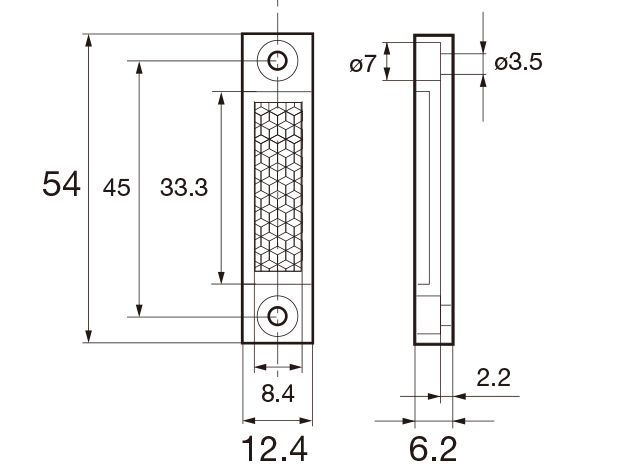

• P45A: Vertical type reflector (optional)

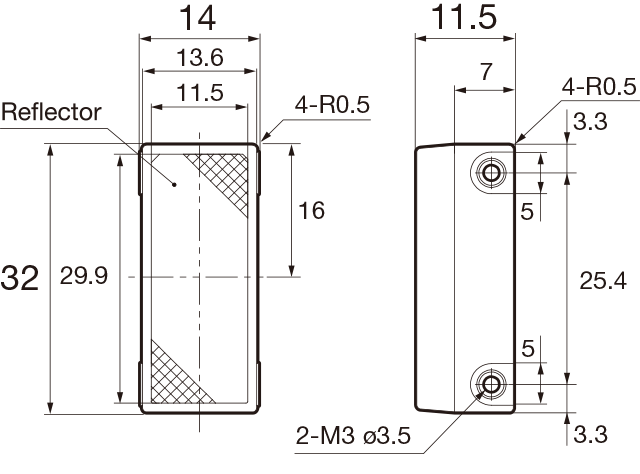

• P25: Side mount reflector (optional)

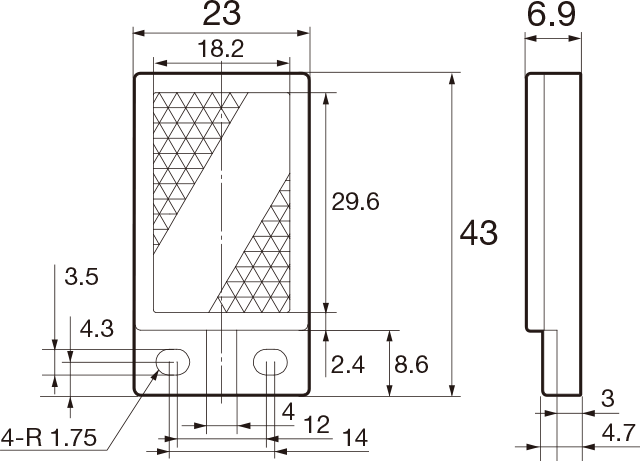

• V-30: Ultra-small reflector (optional)



•

Protective mounting bracket

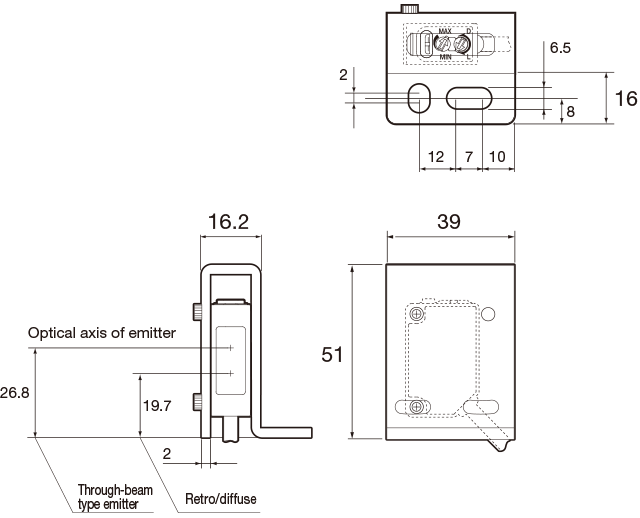

• LK-S01

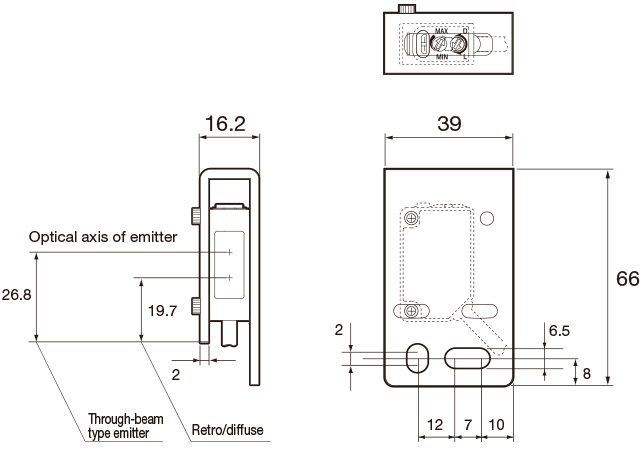

• LK-S02



Connector cable (optional)

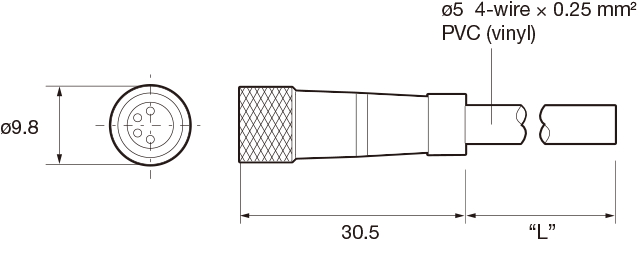

• JCN-S
  JCN-5S
  JCN-10S

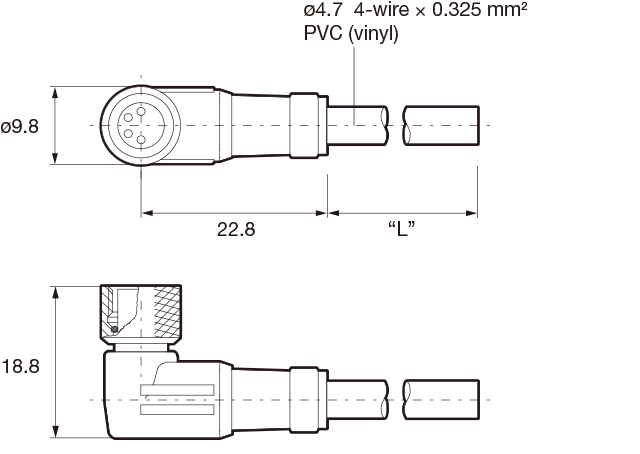

• JCN-L
  JCN-5L
  JCN-10L



Successor models

• M84CN-2S
  M84CN-5S
  M84CN-10S



• M84CN-2L
  M84CN-5L
  M84CN-10L

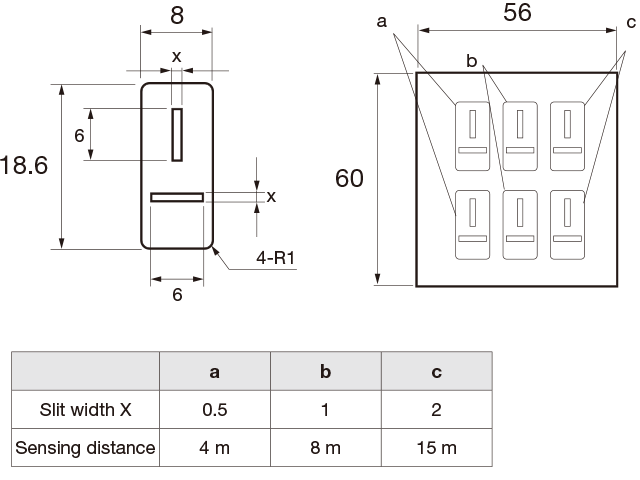

Slit mask

• BL-W100: Slit mask (optional)
