Specifications
Technical Data
Cable type
| Type | Through-beam type | Retro-reflective type | Diffuse-reflective type | |
|---|---|---|---|---|
| Model | NPN type | ZT-M3000N | ZR-M550N | ZD-M80N |
| PNP type | ZT-M3000P | ZR-M550P | ZD-M80P | |
| Sensing distance | 30 m | 0.01 to 5.5 m*1 | 0 to 800 mm*2 | |
| Light source | 4 element red LED | |||
| Spot size | Approx. ø1200 mm (at distance of 30 m) |
Approx. ø300 mm (at distance of 5.5 m) |
Approx. ø40 mm (at distance of 800 mm) |
|
| Response time | 500 μs or less | |||
| Hysteresis | - | - | 20% or less | |
| Distance adjustment | 1-turn potentiometer | |||
| Indicators | Output indicator: orange LED, Stability indicator: green LED (no indicator equipped on through-beam type emitter) |
|||
| Control output | NPN/PNP type Open collector Max. 100 mA/30 VDC | |||
| Output mode | Light ON / Dark ON selection switch | |||
| Connection type | Cable type: Cable length: 2 m (ø4) | |||
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | ||
| Current consumption | Emitter/receiver: 15 mA or less |
18 mA or less | 18 mA or less | |
| Applicable regulations | EMC directive (2004/108/EC) | |||
| Applicable standards | EN 60947-5-2 | |||
| Company standards | Noise resistance: Feilen Level 3 cleared | |||
| Environmental resistance | Ambient temperature/humidity | -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | ||
| Ambient illuminance | Sunlight: 10,000 lx or less Incandescent lamp: 3,000 lx or less | |||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
|||
| Shock resistance | Approx. 100 G (1000 m/s2); 3 times in each of the X, Y, and Z directions |
|||
| Degree of protection | IP67 DIN standard: IP69K |
IP67 DIN standard: IP69K (IP67 for reflector) |
IP67 DIN standard: IP69K |
|
| Material | Housing: SUS316L Top cover: PES Front window: PPSU Switch, potentiometer: PEEK Cable: PVC Gasket: FKM |
Housing: SUS316L Top cover: PES Front window: PMMA Switch, potentiometer: PEEK Cable: PVC Gasket: FKM |
Housing: SUS316L Top cover: PES Front window: PPSU Switch, potentiometer: PEEK Cable: PVC Gasket: FKM |
|
| Weight without cable | Approx. 20 g | |||
| Included accessories | Mounting bracket: BEF-W100-B | Mounting bracket: BEF-W100-B Reflector: V-61 |
Mounting bracket: BEF-W100-B | |
*1. With the V-61 reflector *2. Using a 200 × 200 mm white sheet of paper.
•Specifications are subject to change without prior notice for product improvement purposes.
Connector type
| Type | Through-beam type | Retro-reflective type | Diffuse-reflective type | |
|---|---|---|---|---|
| Model | NPN type | ZT-M3000CN4 | ZR-M550CN4 | ZD-M80CN4 |
| PNP type | ZT-M3000CP4 | ZR-M550CP4 | ZD-M80CP4 | |
| Sensing distance | 30 m | 0.01 to 5.5 m*1 | 0 to 800 mm*2 | |
| Light source | 4 element red LED | |||
| Spot size | Approx. ø1200 mm (at distance of 30 m) |
Approx. ø300 mm (at distance of 5.5 m) |
Approx. ø40 mm (at distance of 800 mm) |
|
| Response time | 500 μs or less | |||
| Hysteresis | - | - | 20% or less | |
| Distance adjustment | 1-turn potentiometer | |||
| Indicators | Output indicator: orange LED, Stability indicator: green LED (no indicator equipped on through-beam type emitter) |
|||
| Control output | NPN/PNP type Open collector Max. 100 mA/30 VDC | |||
| Output mode | Light ON / Dark ON selection switch | |||
| Connection type | Connector type: M8, 4-pin | |||
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | ||
| Current consumption | Emitter/receiver: 15 mA or less | 18 mA or less | 18 mA or less | |
| Applicable regulations | EMC directive (2004/108/EC) | |||
| Applicable standards | EN 60947-5-2 | |||
| Company standards | Noise resistance: Feilen Level 3 cleared | |||
| Environmental resistance | Ambient temperature/humidity | -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | ||
| Ambient illuminance | Sunlight: 10,000 lx or less Incandescent lamp: 3,000 lx or less |
|||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
|||
| Shock resistance | Approx. 100 G (1000 m/s2); 3 times in each of the X, Y, and Z directions |
|||
| Degree of protection | IP67 Company standards: Oil resistance (JEM standard: equivalent to IP67g) |
IP67 Company standards: Oil resistance (JEM standard: equivalent to IP67g) (IP67 for reflector) |
IP67 Company standards: Oil resistance (JEM standard: equivalent to IP67g) |
|
| Material | Housing: SUS316L Top cover: PES Front window: PPSU Switch, potentiometer: PEEK Gasket: FKM |
Housing: SUS316L Top cover: PES Front window: PMMA Switch, potentiometer: PEEK Gasket: FKM |
Housing: SUS316L Top cover: PES Front window: PPSU Switch, potentiometer: PEEK Gasket: FKM |
|
| Weight without cable | Approx. 20 g | |||
| Included accessories | Mounting bracket: BEF-W100-A | Mounting bracket: BEF-W100-A Reflector: V-61 |
Mounting bracket: BEF-W100-A | |
*1 With the V-61 reflector *2. Using a 200 × 200 mm white sheet of paper.
•Specifications are subject to change without prior notice for product improvement purposes.
Typical characteristic data

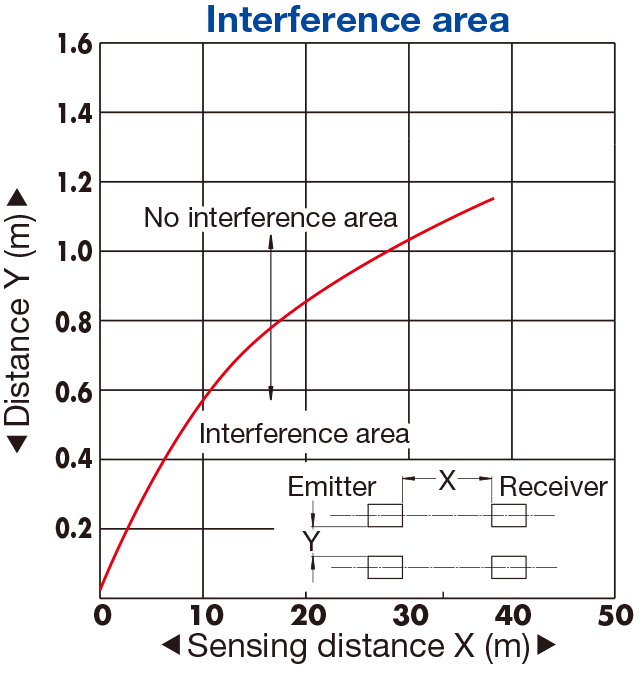

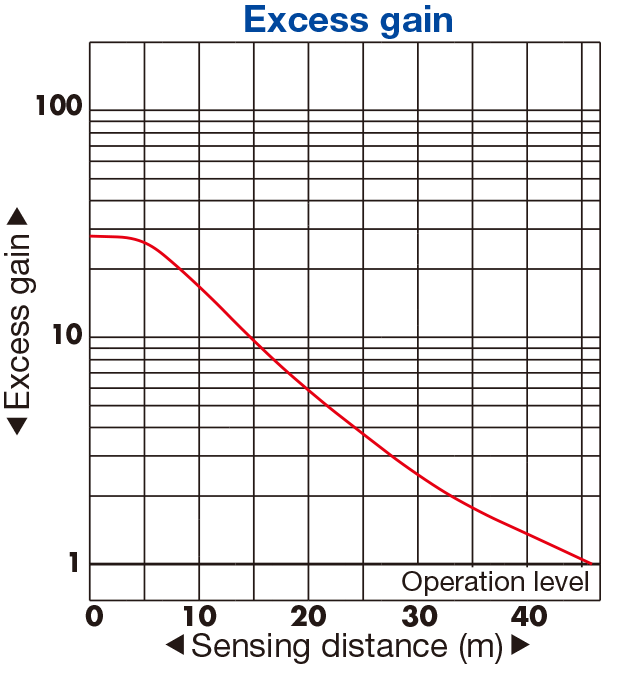

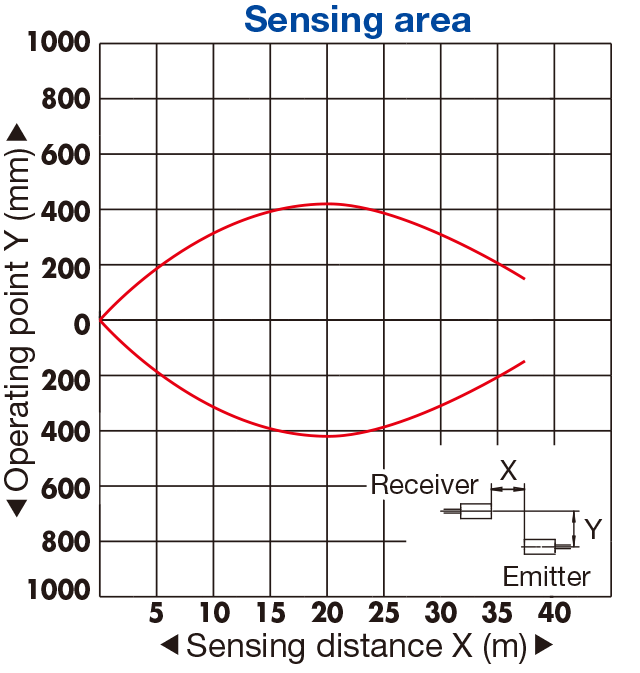

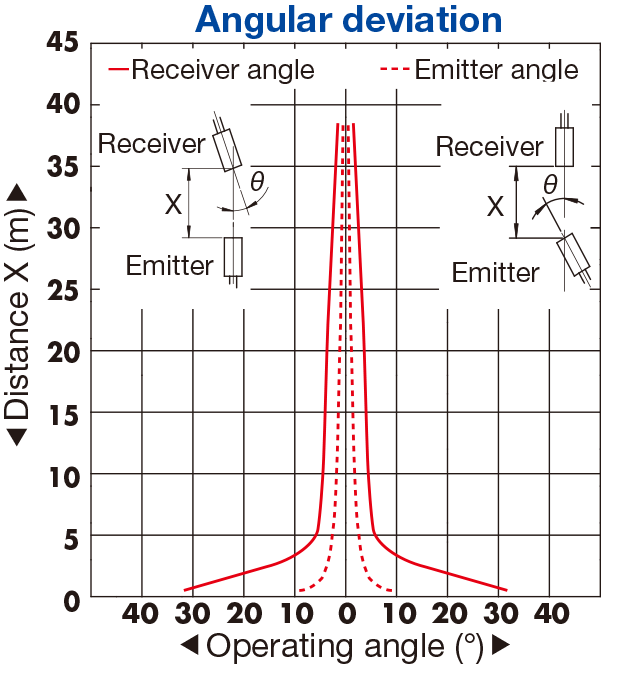

ZT-M3000☐

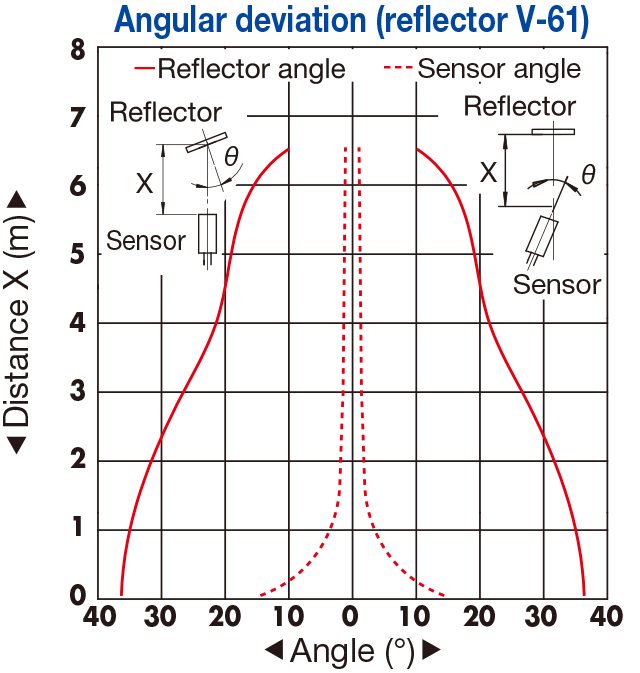

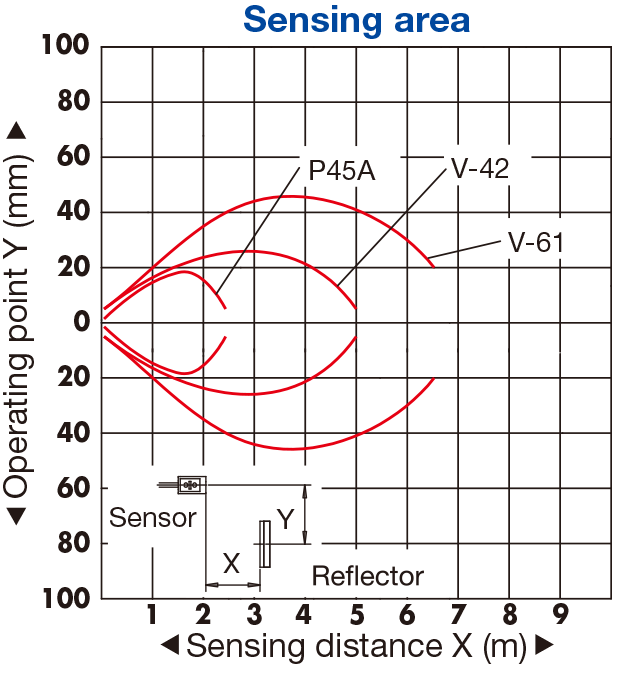

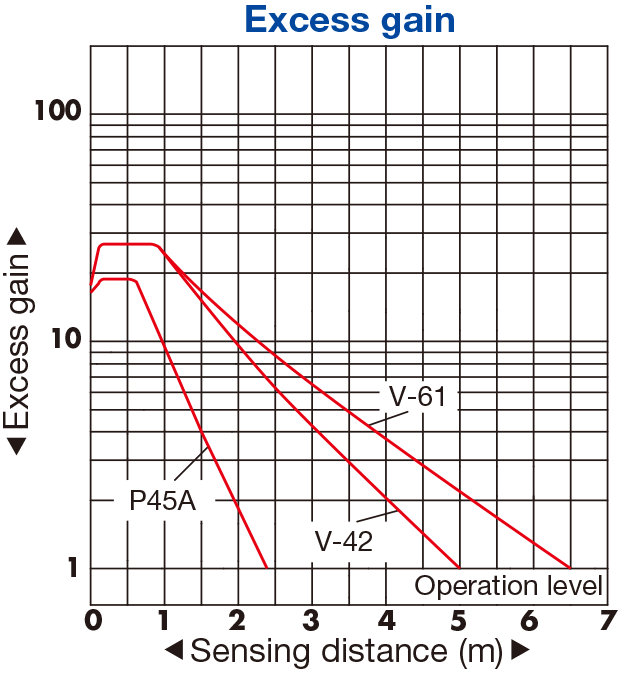

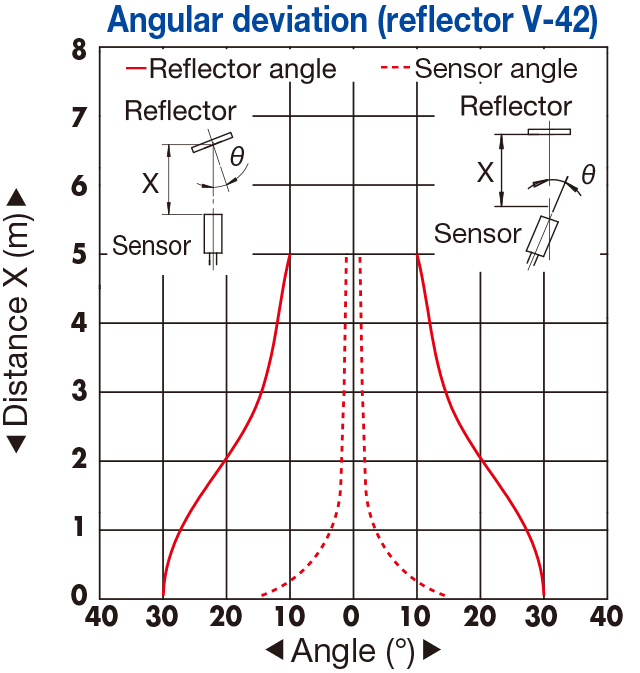

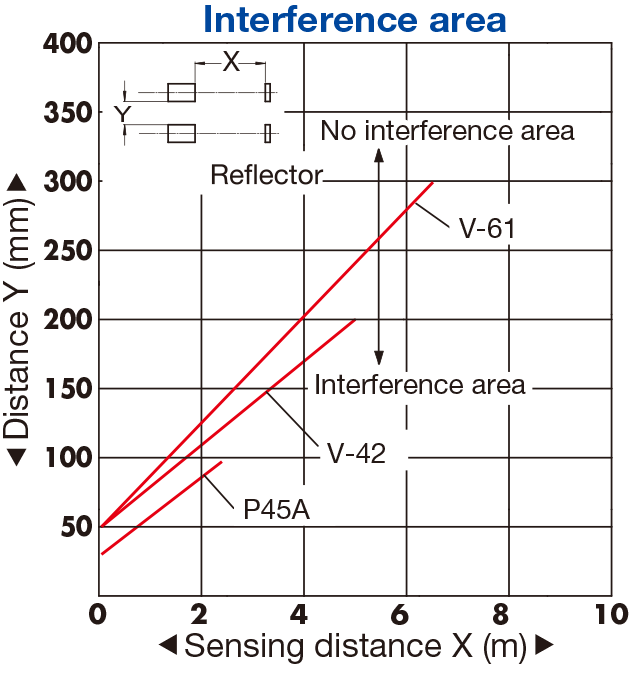

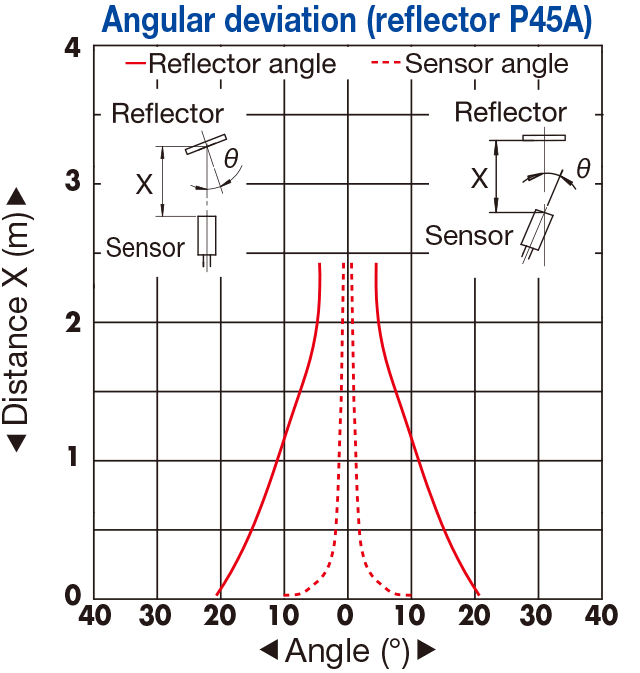

ZR-M550☐

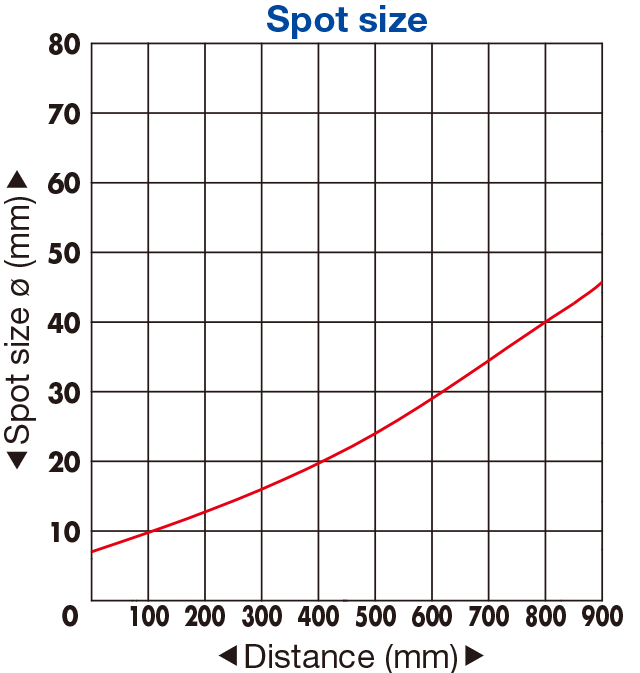

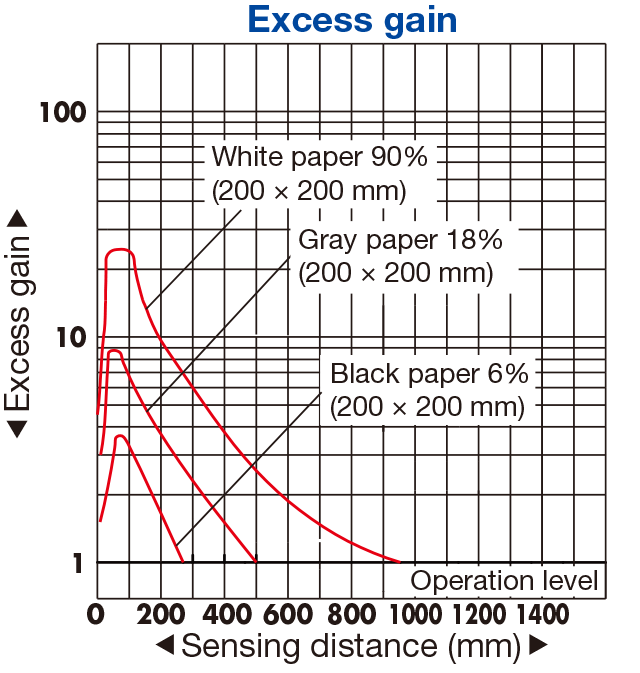

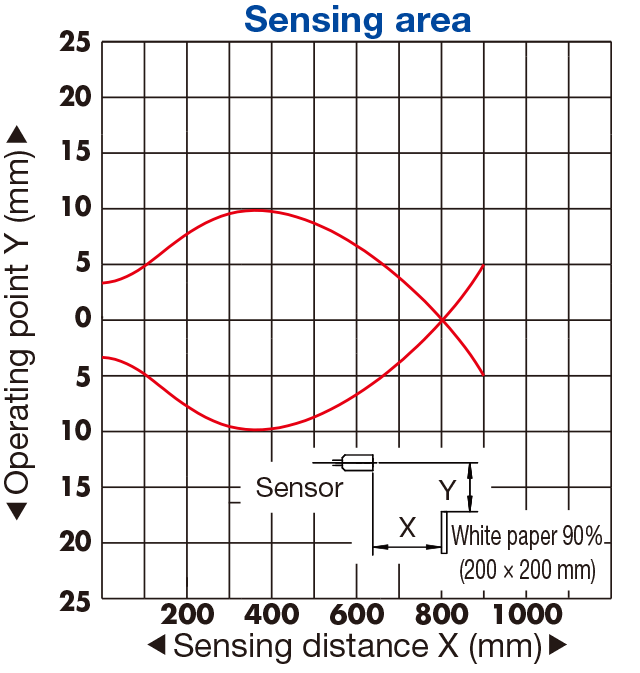

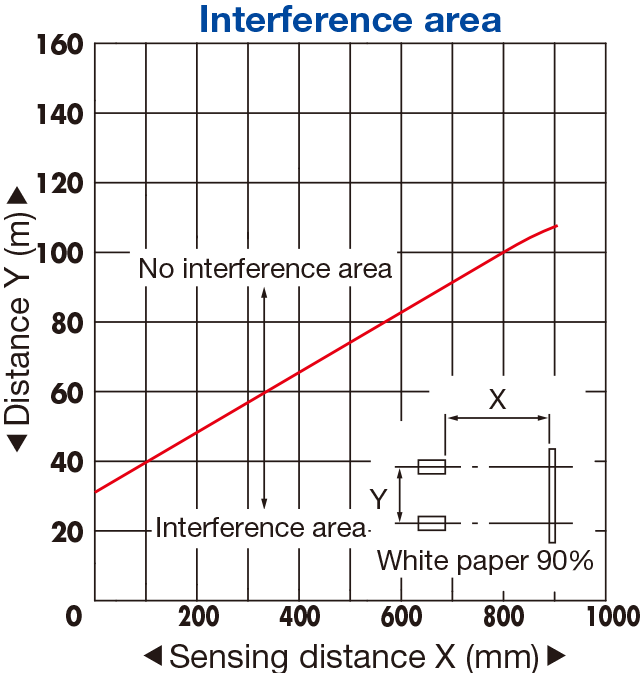

ZD-M80☐
