Circuit Diagram

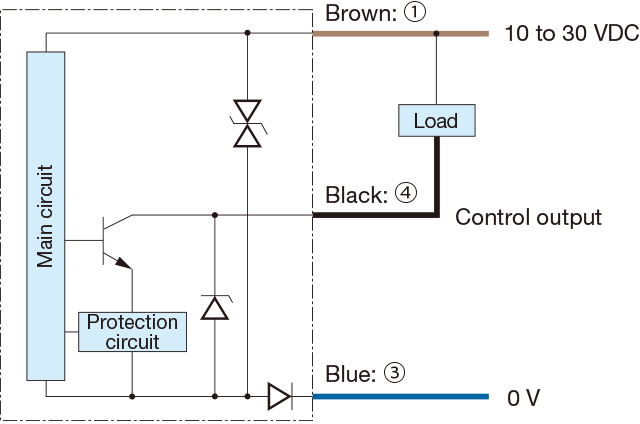

NPN output type

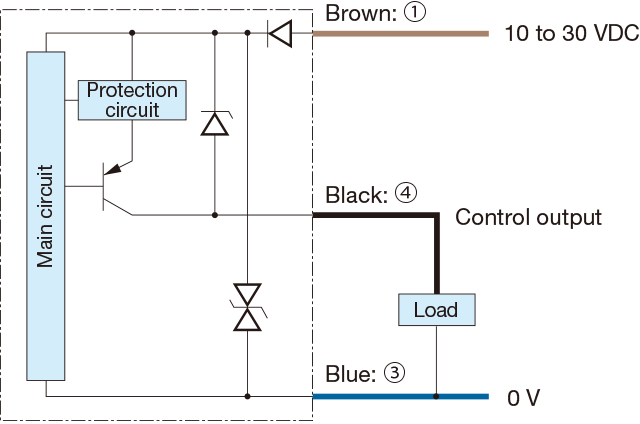

PNP output type

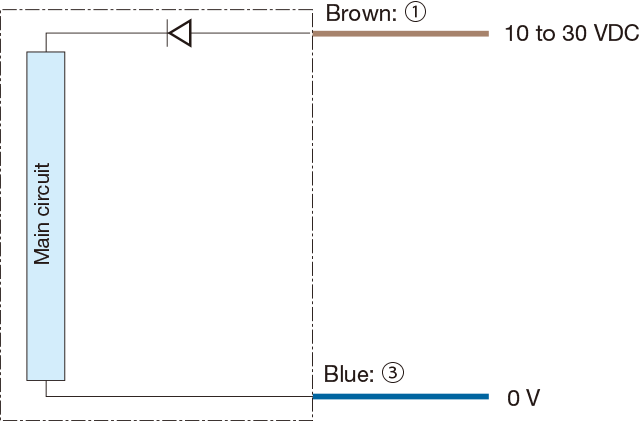

Through-beam type emitter

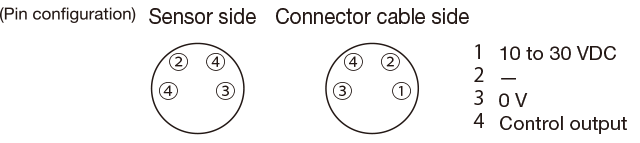

Connector type

Connecting

• 1 to 4 are connector pin No.

Notes

• When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
• Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
• Avoid using the transient state while the power is on (approx. 100 ms).

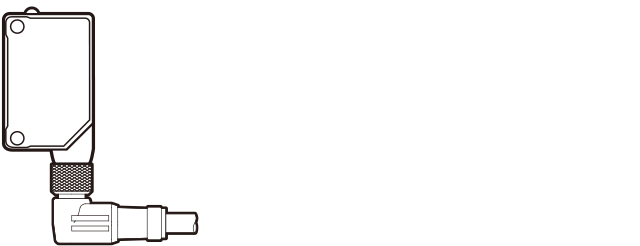

• The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.
