Specifications
Technical Data
| Type | Universal voltage type | |||
|---|---|---|---|---|
| Through-beam type | Retro-reflective type | Diffuse-reflective type | ||
| Model | Terminal block type | V4T-7000 | V4R-1200 | V4D-200 |
| Cable type | V3T-7000 | V3R-1200 | V3D-200 | |
| Sensing distance | 70 m | 0.01 to 12 m*1 | 0.01 to 2 m*2 | |
| Light source | Red LED | |||
| Response time | 15 ms or less | |||
| Hysteresis | - | 20% or less | ||
| Distance adjustment | 1-turn potentiometer | |||
| Indicators | Output indicator: orange LED, Stability indicator: green LED | |||
| Control output | Relay × 1C*3 240 VAC / 30 VDC, 3 A or less (load resistance) | |||
| Output mode | Fixed to Light ON | |||
| Connection type | Terminal block type: Applicable cable outer diameter: ø4 to 8, Cable type: Cable length: 2 m, ø6.3 |
|||
| Rating | Supply voltage | 24 to 240 VDC ±10%, 24 to 240 VAC ±10% 50/60 Hz | ||
| Power consumption | 4 VA or less | 2.5 VA or less | ||
| Applicable regulations | EMC directive (2004/108/EC), Low voltage directive (2006/95/EC) | |||
| Applicable standards | EN 60947-5-2 | |||
| Company standards | Noise resistance: Feilen Level 3 cleared | |||
| Environmental resistance |
Ambient temperature/humidity | -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | ||
| Ambient illuminance | Sunlight: 10,000 lx or less, Incandescent lamp: 3,000 lx or less | |||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
|||
| Shock resistance | Approx. 50 G (500 m/s2); 3 times in each of the X, Y, and Z directions |
|||
| Degree of protection | IP67 | |||
| Material | Housing: ABS (glass fiber filled, fire resistant), Front cover: Polycarbonate (retro-reflective type is PMMA) |
|||
| Weight without cable | Through-beam type emitter: Approx. 70 g Other: Approx. 85 g | |||
| Included accessories | Mounting bracket | Mounting bracket Reflector: V-61 | Mounting bracket | |
*1. With the V-61 reflector *2. Using a 200 ☓ 200 mm white sheet of paper.
*3. When driving the inductive load (with an induction valve, electromagnetic contactor, etc.) through the relay connection point, please use a noise absorption device (surge absorber).
• Specifications are subject to change without prior notice for product improvement purposes.
• Products certified for the Chinese CCC compulsory certification system also available. Contact us for details.
| Type | DC power type | ||||
|---|---|---|---|---|---|
| Through-beam type | Retro-reflective type | Diffuse-reflective type | |||
| Model | NPN | Terminal block type | V4T-7000N | V4R-1200N | V4D-200N |
| Cable type | V3T-7000N | V3R-1200N | V3D-200N | ||
| Connector type | V3T-7000CN | V3R-1200CN | V3D-200CN | ||
| PNP | Terminal block type | V4T-7000P | V4R-1200P | V4D-200P | |
| Cable type | V3T-7000P | V3R-1200P | V3D-200P | ||
| Connector type | V3T-7000CP | V3R-1200CP | V3D-200CP | ||
| Sensing distance | 70 m | 0.01 to 12 m*1 | 0.01 to 2 m*2 | ||
| Light source | Red LED | ||||
| Response time | 0.5 ms or less | ||||
| Hysteresis | - | 20% or less | |||
| Distance adjustment | 1-turn potentiometer | ||||
| Indicators | Output indicator: orange LED, Stability indicator: green LED | ||||
| Control output | NPN/PNP type Open collector Max. 100 mA/30 VDC | ||||
| Output mode | Light ON / Dark ON selection switch | ||||
| Connection type | Terminal block type: Applicable cable outer diameter: ø4 to 8, Cable type: Cable length: 2 m, ø3.8, Connector type: M12, 4-pin |
||||
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | |||
| Power consumption | 35 mA or less | ||||
| Applicable regulations | EMC directive (2004/108/EC) | ||||
| Applicable standards | EN 60947-5-2 | ||||
| Company standards | Noise resistance: Feilen Level 3 cleared | ||||
| Environmental resistance |
Ambient temperature/humidity | -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | |||
| Ambient illuminance | Sunlight: 10,000 lx or less, Incandescent lamp: 3,000 lx or less | ||||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
||||
| Shock resistance | Approx. 50 G (500 m/s2); 3 times in each of the X, Y, and Z directions |
||||
| Degree of protection | IP67 | ||||
| Material | Housing: ABS (glass fiber filled, fire resistant), Front cover: Polycarbonate (retro-reflective type is PMMA) |
||||
| Weight without cable | Through-beam type emitter: Approx. 70 g Other: Approx. 85 g | ||||
| Included accessories | Mounting bracket | Mounting bracket Reflector: V-61 | Mounting bracket | ||
*1. With the V-61 reflector *2. Using a 200 ☓ 200 mm white sheet of paper.
• Specifications are subject to change without prior notice for product improvement purposes.
Typical characteristic data

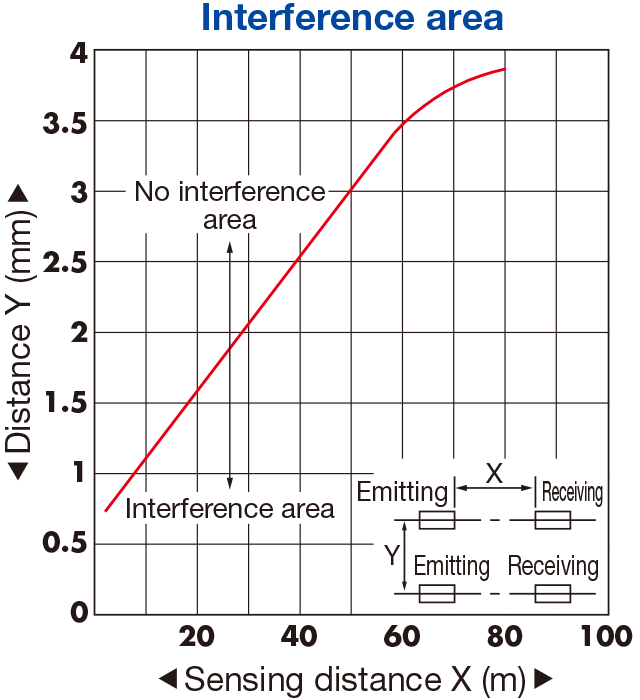

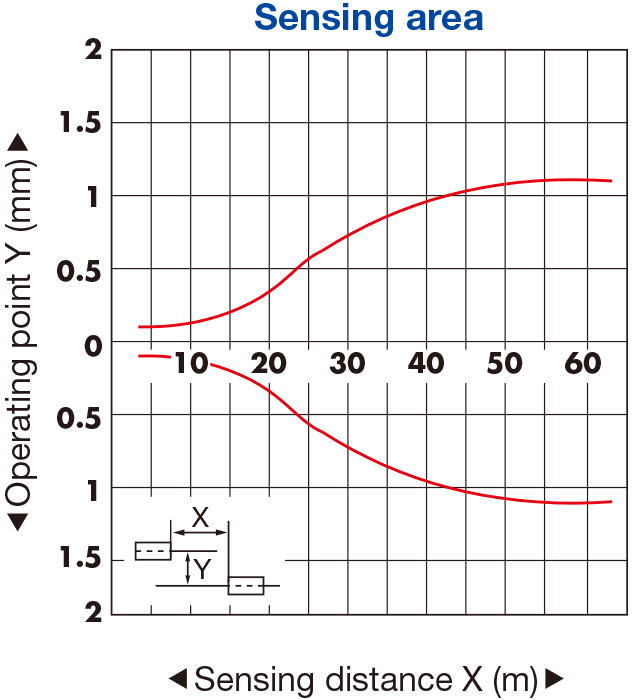

V3T-7000☐/V4T-7000☐

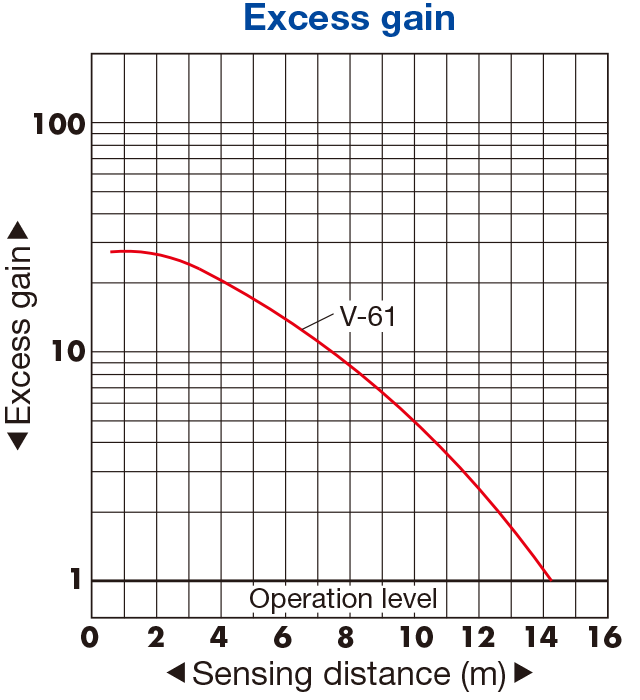

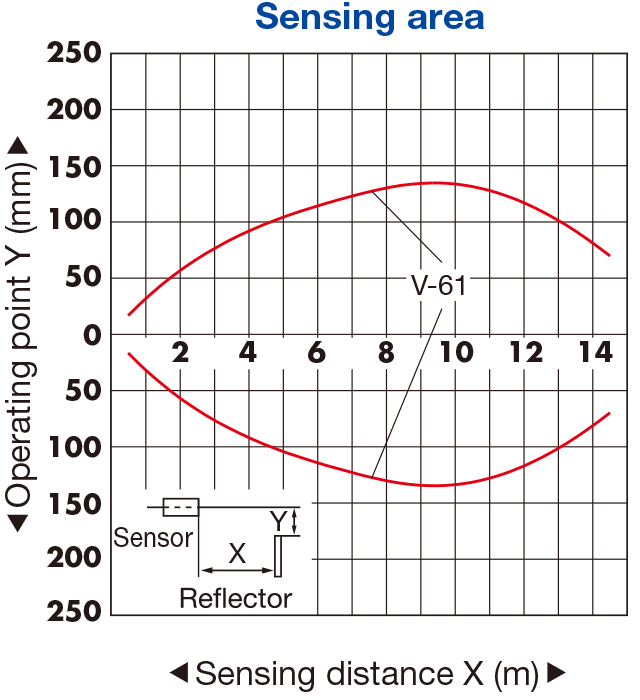

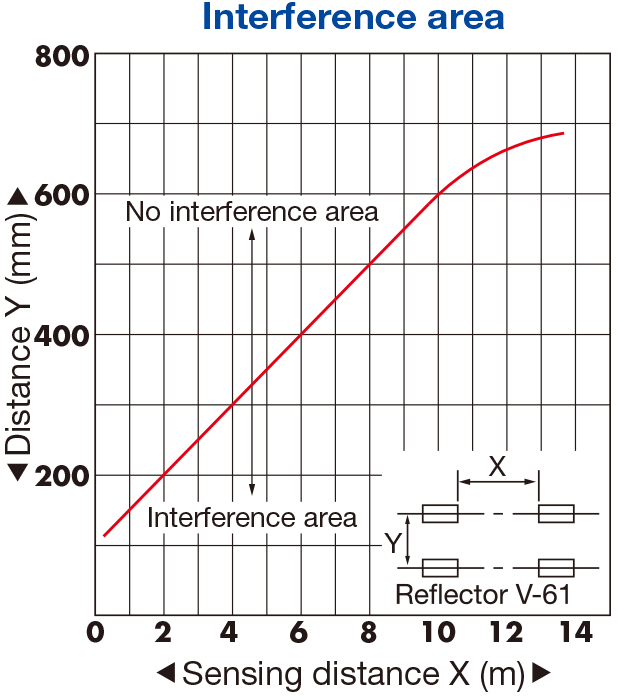

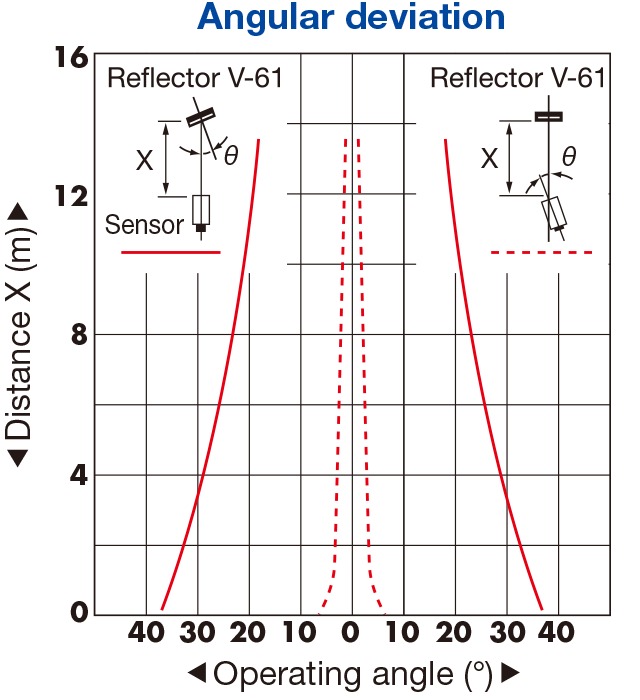

V3R-1200☐/V4R-1200☐

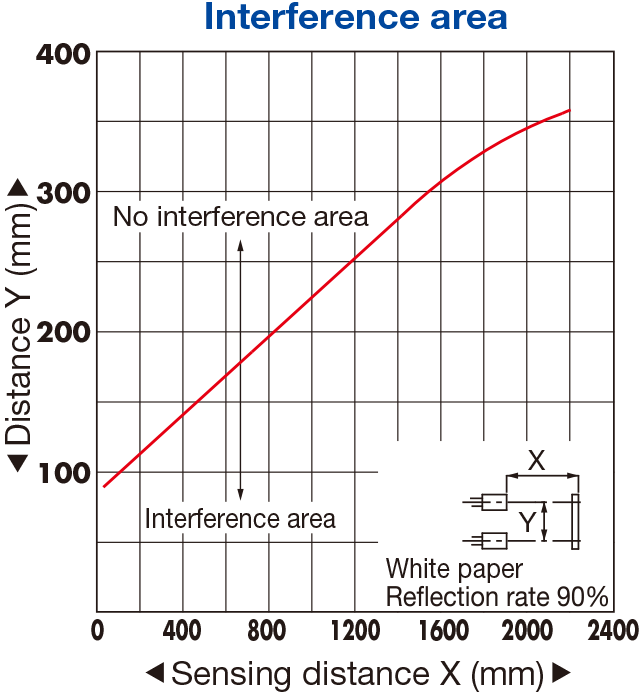

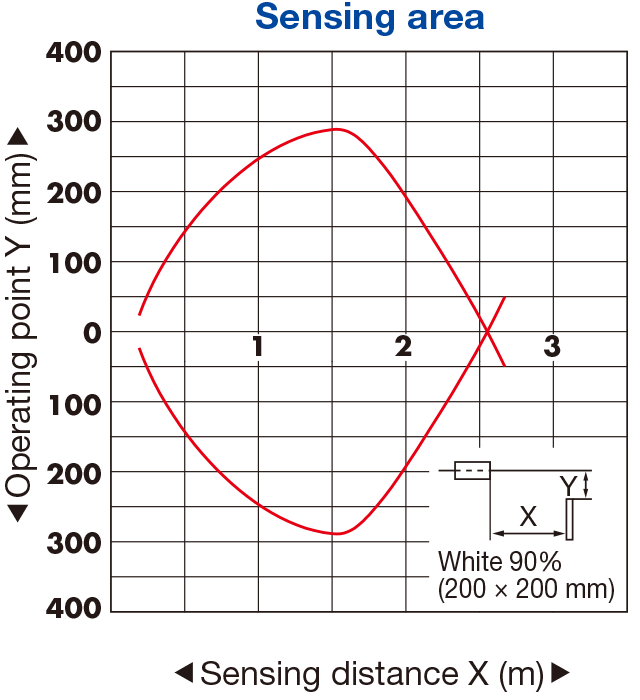

V3D-200☐/V4D-200☐
