Circuit Diagram

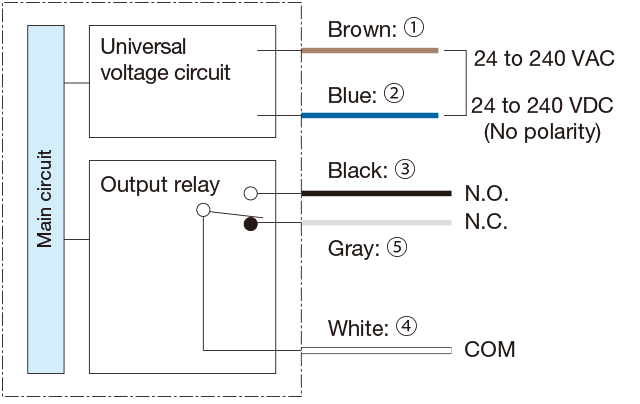

Universal voltage type

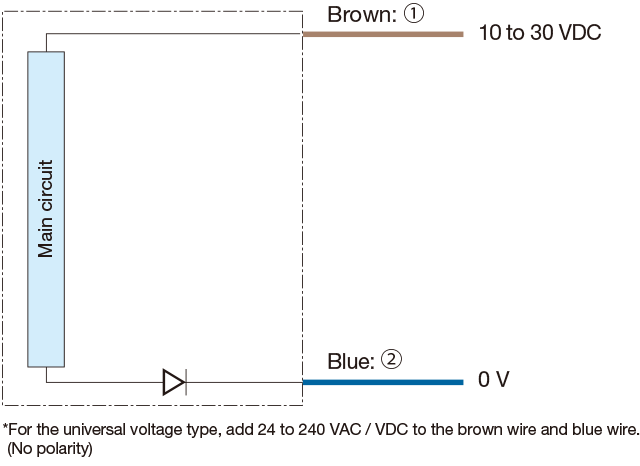

Through-beam type emitter

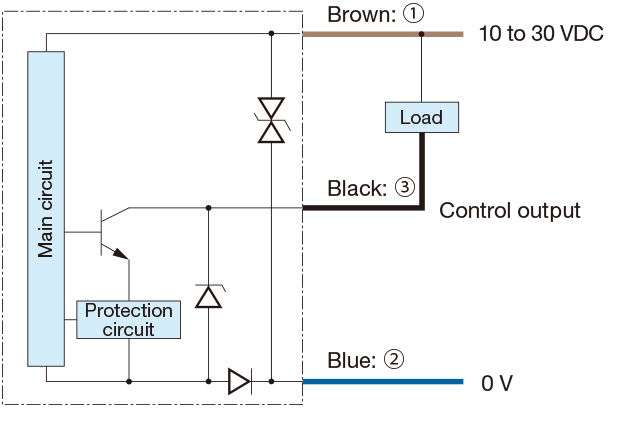

NPN output type

Connector type

Connecting

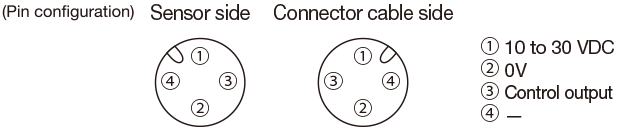

• 1 to 4 are connector pin No.

Notes

• When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
• Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
• Avoid using the transient state while the power is on (approx. 100 ms).
