Specifications
Technical Data
| Type | Universal voltage type | ||
|---|---|---|---|
| Through-beam type | Retro-reflective type | ||
| Model | Cable type | V2T-7000 | V2R-1200 |
| Connector type | - | - | |
| Sensing distance | 70 m | 0.01 to 12 m*1 | |
| Light source | Red LED | ||
| Smallest detectable object | ø15 mm | □40 mm | |
| Response time | 15 ms or less | ||
| Distance adjustment | 2-turn endless potentiometer (with indicator) | ||
| Indicators | Output indicator: orange LED, Stability indicator: green LED (no indicator equipped on through-beam type emitter) |
||
| Control output | Relay × 1C*2 250 VAC 3 A or less / 30 VDC 2 A or less (load resistance) |
||
| Output mode | Light ON (on during light detection) | ||
| Connection type | Cable type: Cable length: 2 m, ø6.4 mm | ||
| Insulation resistance | 20 MΩ or more (with 500 VDC) | ||
| Rating | Supply voltage | 24 to 240 VAC ±10% 50/60 Hz, 24 to 240 VDC ±10% | |
| Power consumption | 3 VA or less | 2 VA or less | |
| Applicable regulations | EMC directive (2004/108/EC), Low voltage directive (2006/95/EC) | ||
| Applicable standards | EN 60947-5-2 | ||
| Company standards | Noise resistance: Feilen Level 3 cleared | ||
| Environmental resistance |
Ambient temperature/humidity | -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | |
| Ambient illuminance | Sunlight: 10,000 lx Incandescent lamp: 3,000 lx | ||
| Voltage resistance | 2700 VAC / minute | ||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
||
| Shock resistance | Approx. 50 G (500 m/s2); 3 times in each of the X, Y, and Z directions |
||
| Degree of protection | IEC standard, IP67 | ||
| Material | Housing: ABS (glass fiber filled, fire resistant), Front cover: Polycarbonate (retro-reflective type is PMMA) |
||
| Weight without cable | Through-beam type emitter: Approx. 35 g Other: Approx. 50 g | ||
| Included accessories | Mounting bracket: BEF-W250 | Mounting bracket: BEF-W250 reflector: V-61 |
|
*1. With the V-61 reflector
*2. When driving the inductive load (with an induction valve, electromagnetic contactor, etc.) through the relay connection point, please use a noise absorption device (surge absorber).
• Specifications are subject to change without prior notice for product improvement purposes.
• Products certified for the Chinese CCC compulsory certification system also available. Contact us for details.
| Type | DC power type | |||
|---|---|---|---|---|
| Through-beam type | Retro-reflective type | |||
| Model | NPN | Cable type | V2T-7000DN | V2R-1200DN |
| Connector type | V2T-7000CDN | V2R-1200CDN | ||
| PNP | Cable type | V2T-7000DP | V2R-1200DP | |
| Connector type | V2T-7000CDP | V2R-1200CDP | ||
| Sensing distance | 70 m | 0.01 to 12 m* | ||
| Light source | Red LED | |||
| Smallest detectable object | ø15 mm | □40 mm | ||
| Response time | 0.5 ms or less | |||
| Distance adjustment | 2-turn endless potentiometer (with indicator) | |||
| Indicators | Output indicator: orange LED, Stability indicator: green LED (no indicator equipped on through-beam type emitter) |
|||
| Control output | NPN/PNP type Open collector Max. 100 mA/30 VDC | |||
| Output mode | Light ON / Dark ON wiring switching | |||
| Connection type | Cable type: Cable length: 2 m ø3.8 mm / Connector type: M12, 4-pin | |||
| Insulation resistance | 20 MΩ or more (with 500 VDC) | |||
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | ||
| Current consumption | 35 mA or less | |||
| Applicable regulations | EMC directive (2004/108/EC) | |||
| Applicable standards | EN 60947-5-2 | |||
| Company standards | Noise resistance: Feilen Level 3 cleared | |||
| Environmental resistance |
Ambient temperature/humidity | -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | ||
| Ambient illuminance | Sunlight: 10,000 lx Incandescent lamp: 3,000 lx | |||
| Voltage resistance | 1000 VAC / minute | |||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
|||
| Shock resistance | Approx. 50 G (500 m/s2); 3 times in each of the X, Y, and Z directions |
|||
| Degree of protection | IEC standard, IP67 | |||
| Material | Housing: ABS (glass fiber filled, fire resistant), Front cover: Polycarbonate (retro-reflective type is PMMA) |
|||
| Weight without cable | Through-beam type emitter: Approx. 35 g Other: Approx. 50 g | |||
| Included accessories | Mounting bracket: BEF-W250 | Mounting bracket: BEF-W250 reflector: V-61 |
||
*With the V-61 reflector
• Specifications are subject to change without prior notice for product improvement purposes.
Typical characteristic data

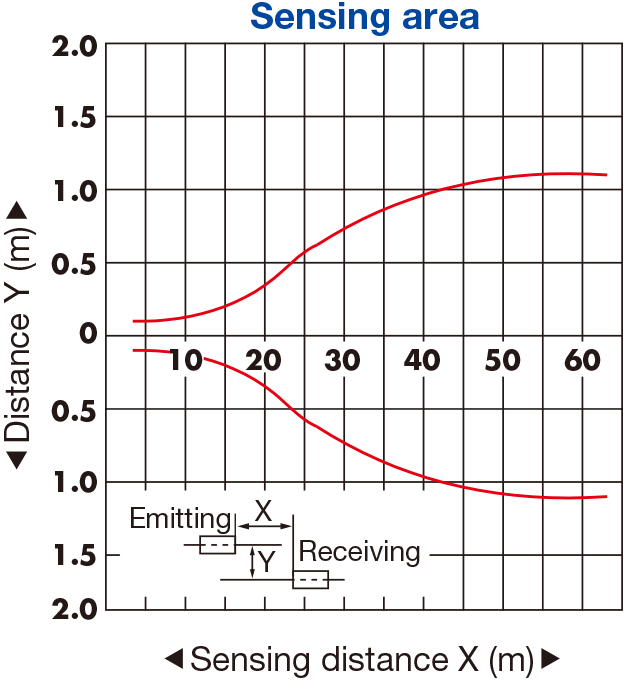

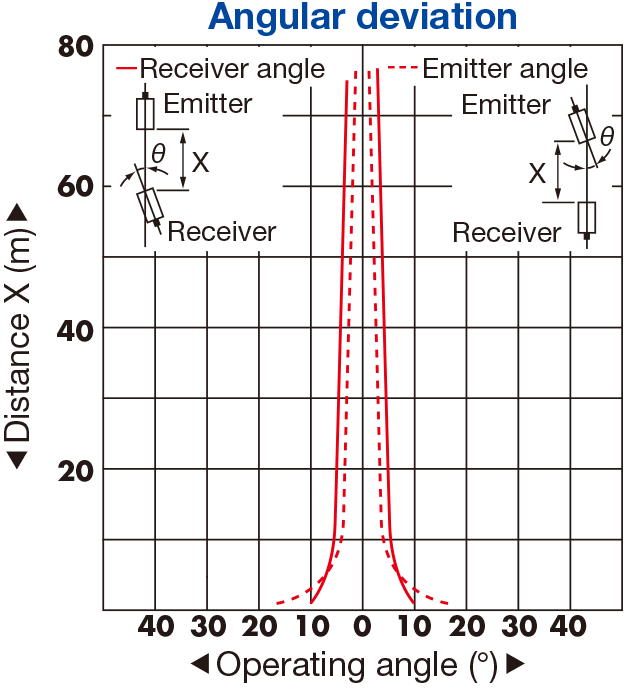

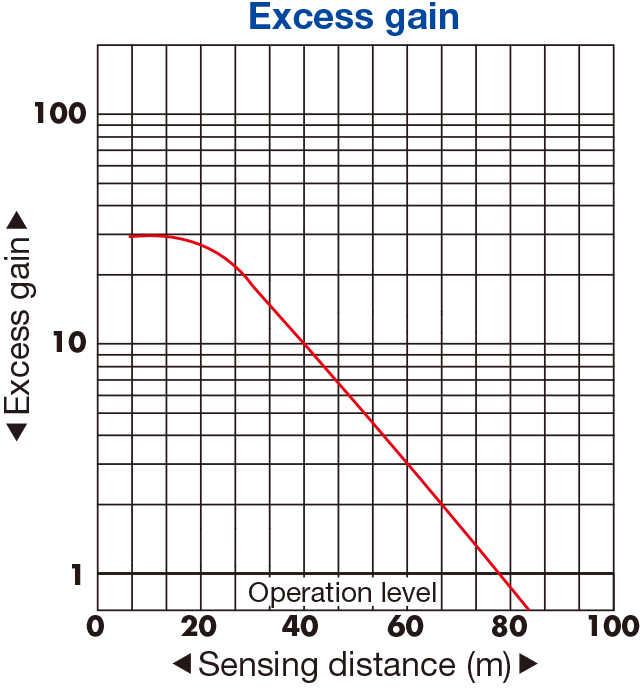

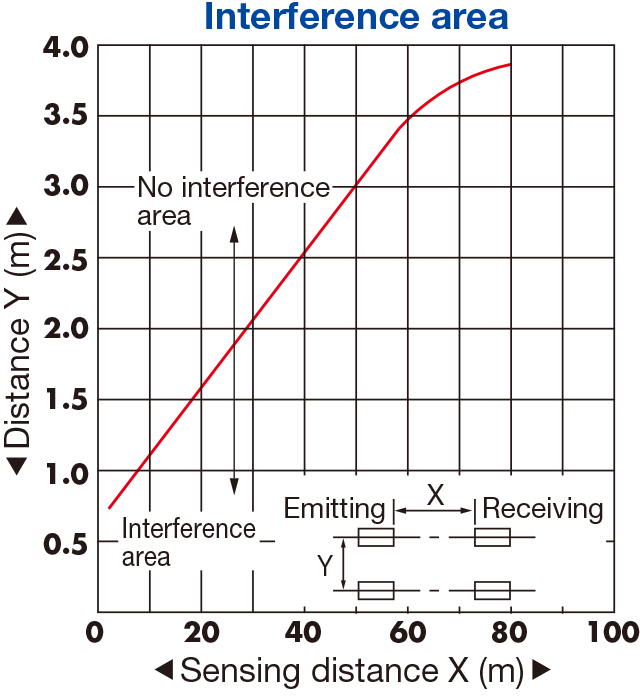

V2T-7000/V2T-7000D☐

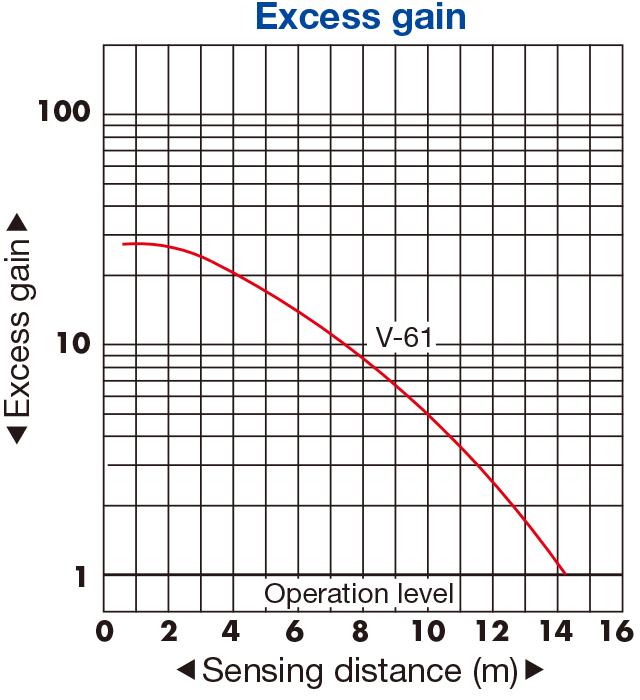

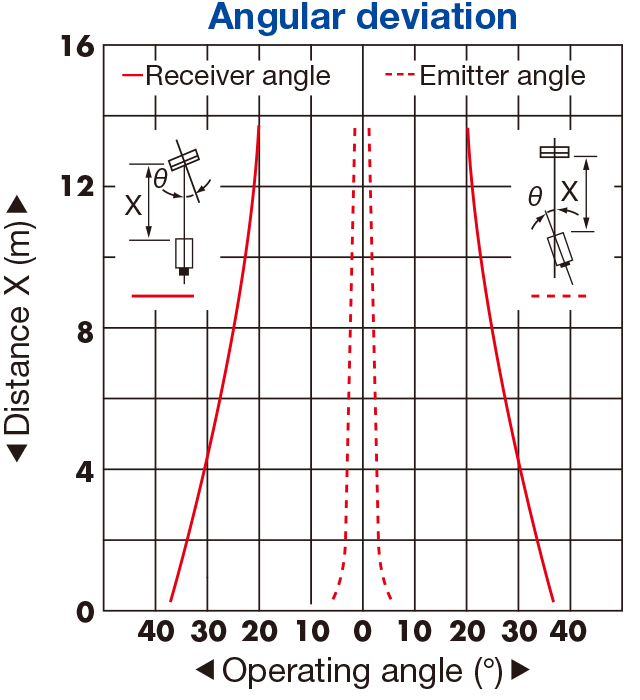

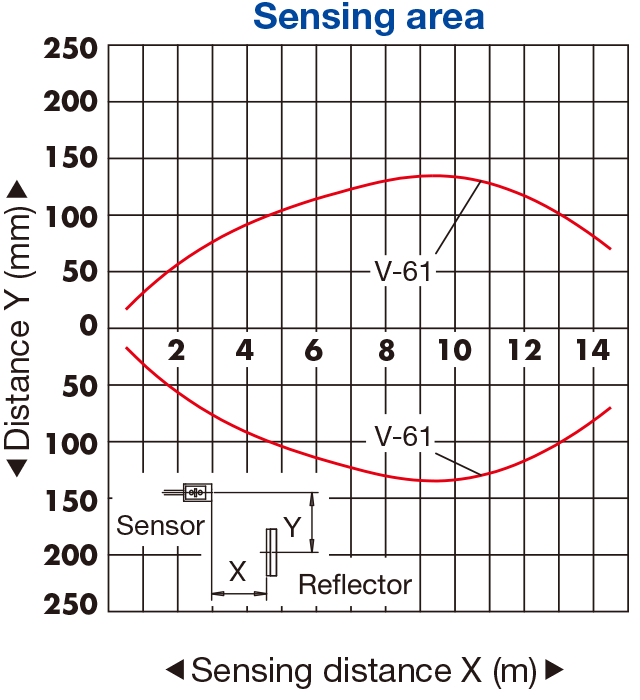

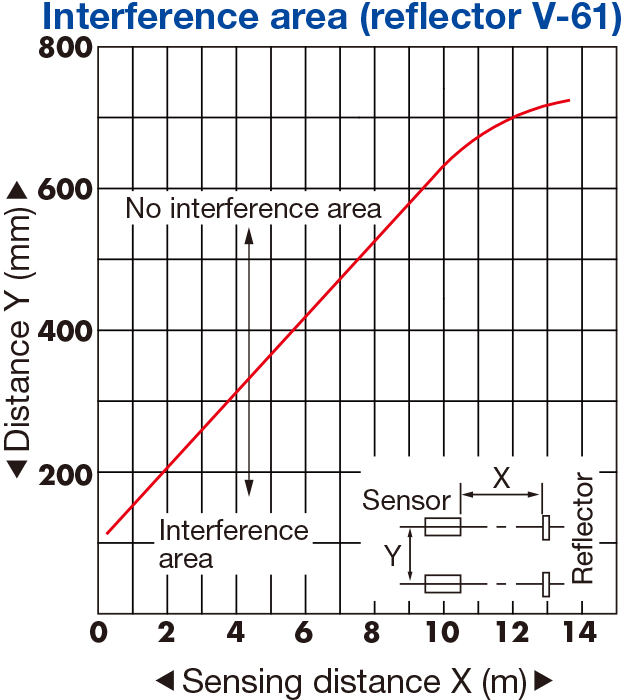

V2R-1200/V2R-1200D☐
