Discontinued Products
- Some models in this product series have been discontinued.
- Discontinued Models
Circuit Diagram
-
NPN output type
-
PNP output type
-

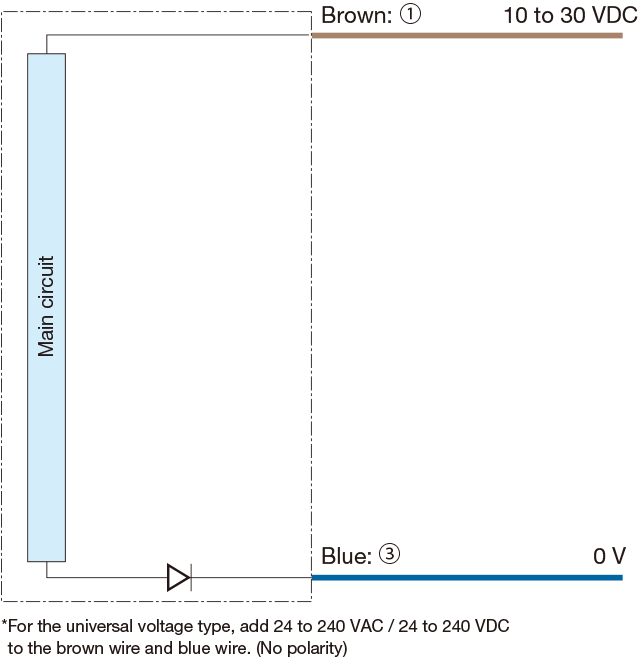

Through-beam type emitter
-

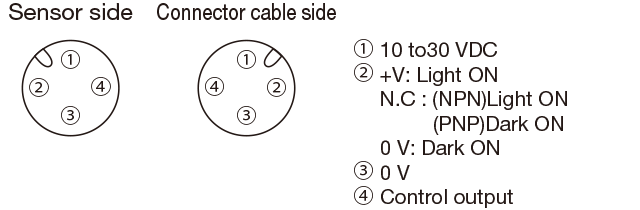

Connector type
-

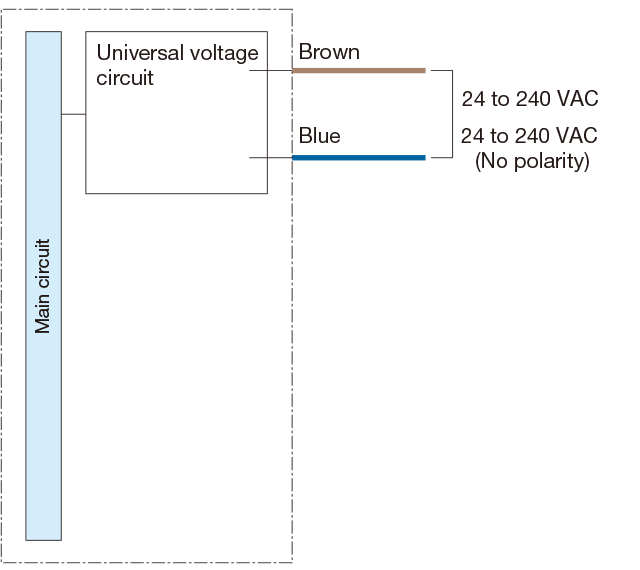

Through-beam type emitter
-

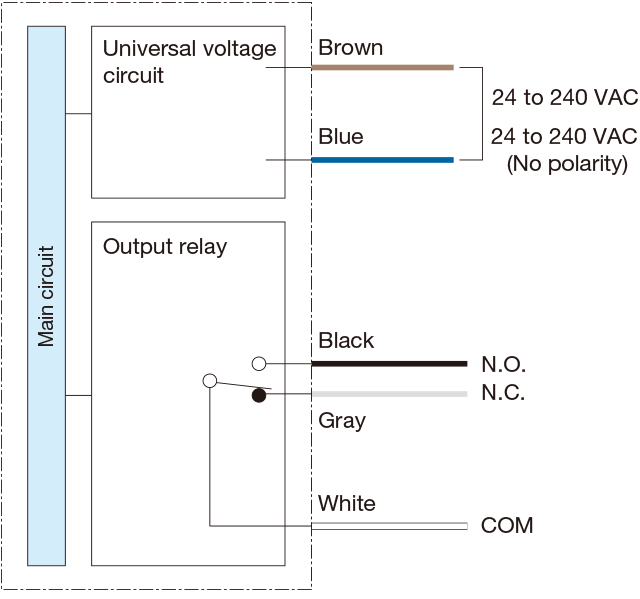

Universal voltage type
-
Notes
- When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
- Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
- Avoid using the transient state while the power is on (approx. 150 ms).
