Circuit Diagram
-

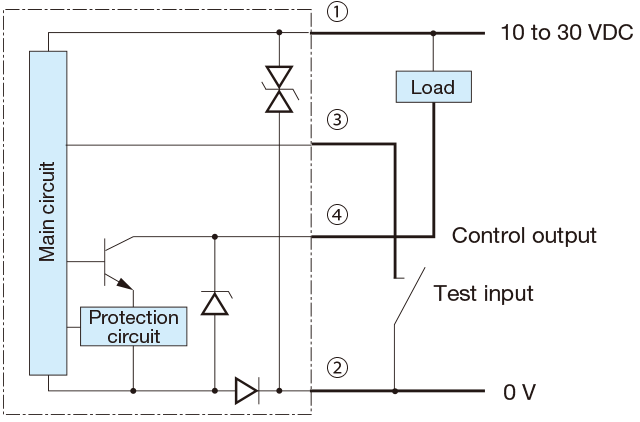

NPN output type (DC power type)
-

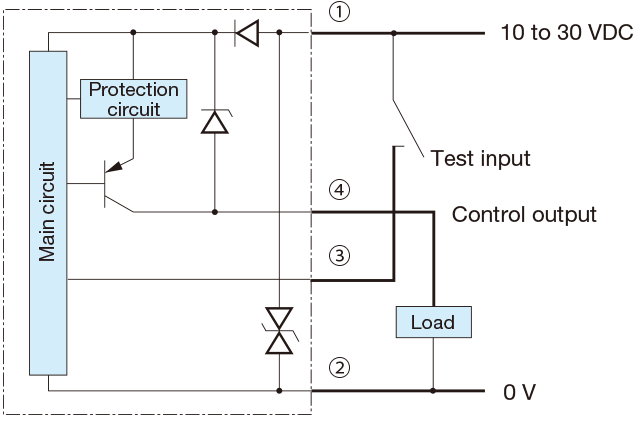

PNP output type (DC power type)
-

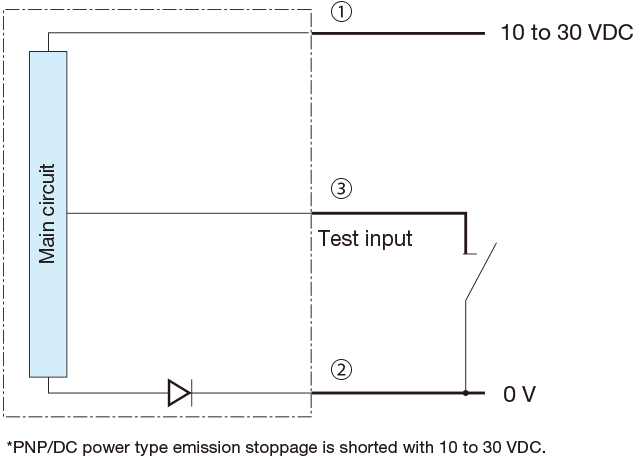

Through-beam type emitter
(NPN. DC power type)
-
Connecting
- 1 to 4 are connector pin No
Notes
- When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
- Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
- Avoid using the transient state while the power is on (approx. 100 ms).
-

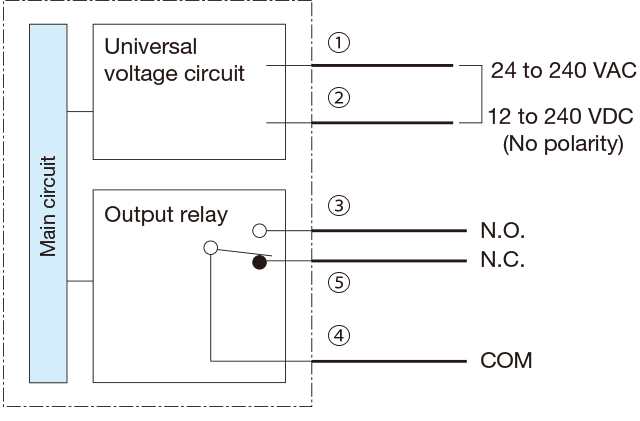

Universal voltage type
-

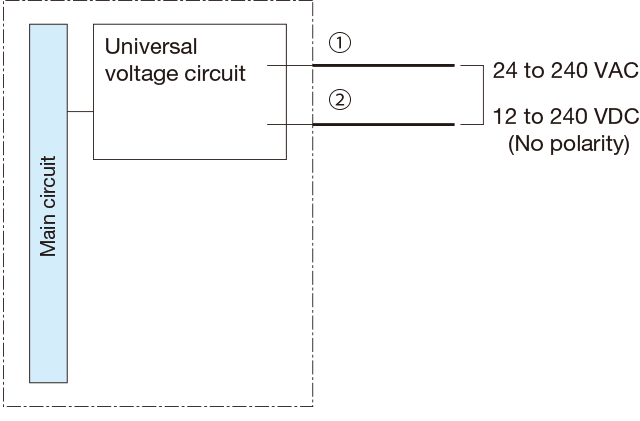

Through-beam type emitter
(universal voltage type)
