Discontinued Products
- Some models in this product series have been discontinued.
- Discontinued Models
Dimensions
Unit: mm
KR-Q series

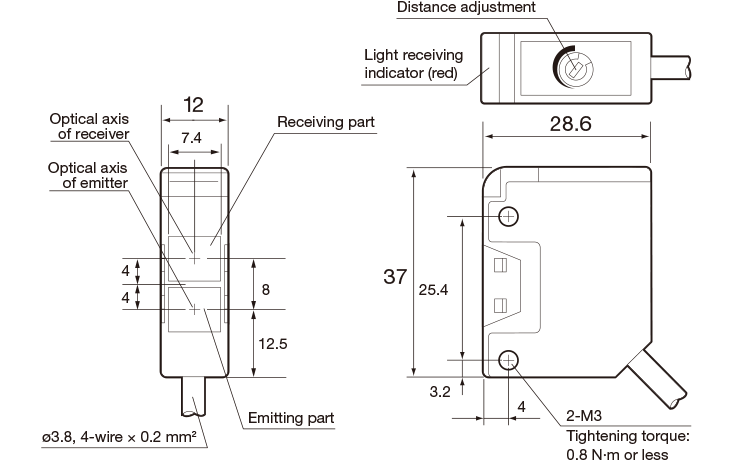

Cable type

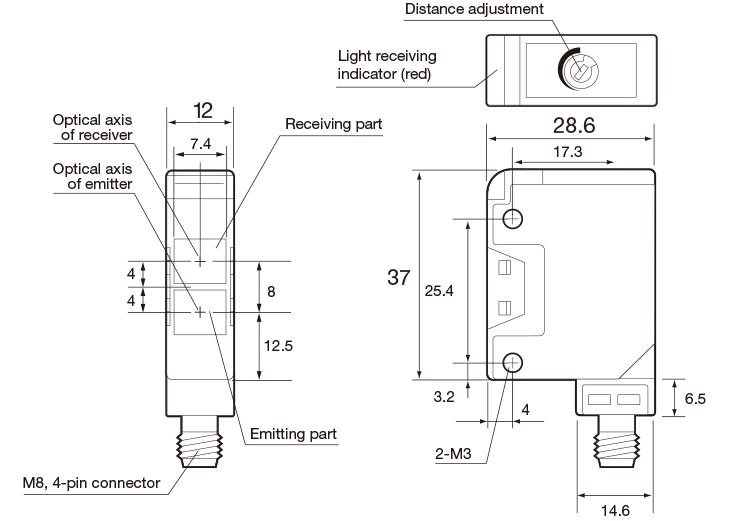

Connector type

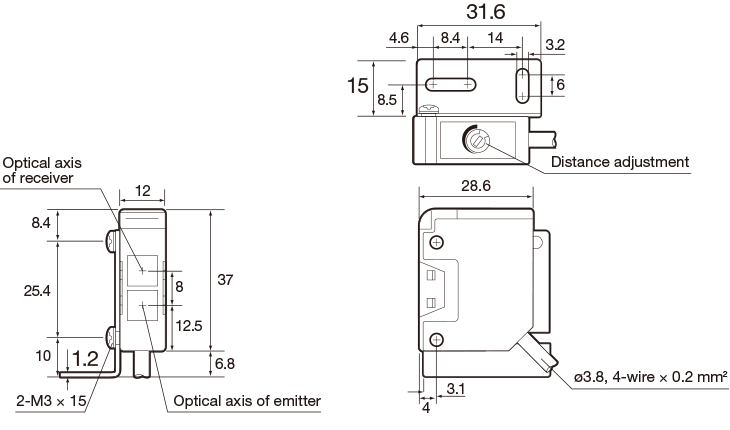

KR-Q with mounting bracket
Cable type

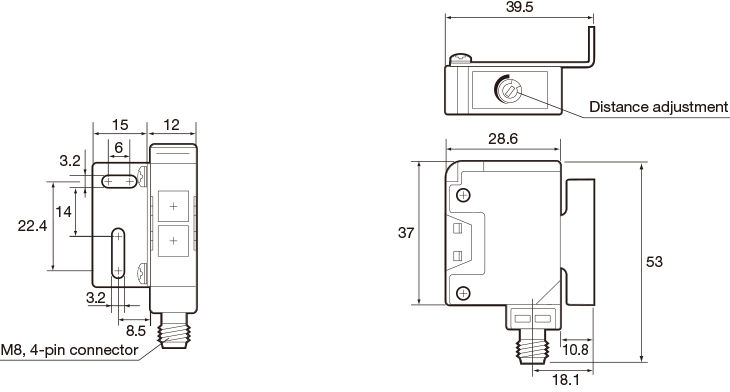

Connector type
Mounting bracket (included)
-

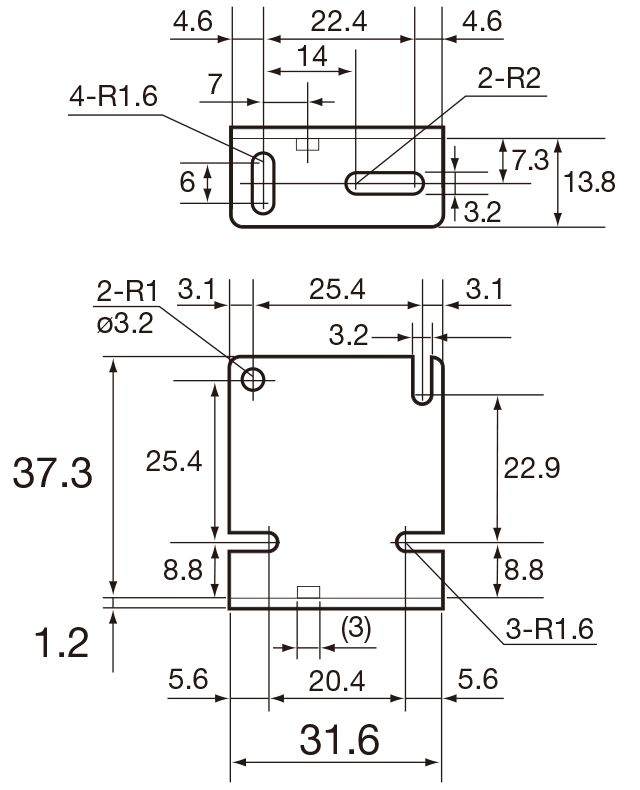

BEF-W170
KR-Q series with protective mounting bracket

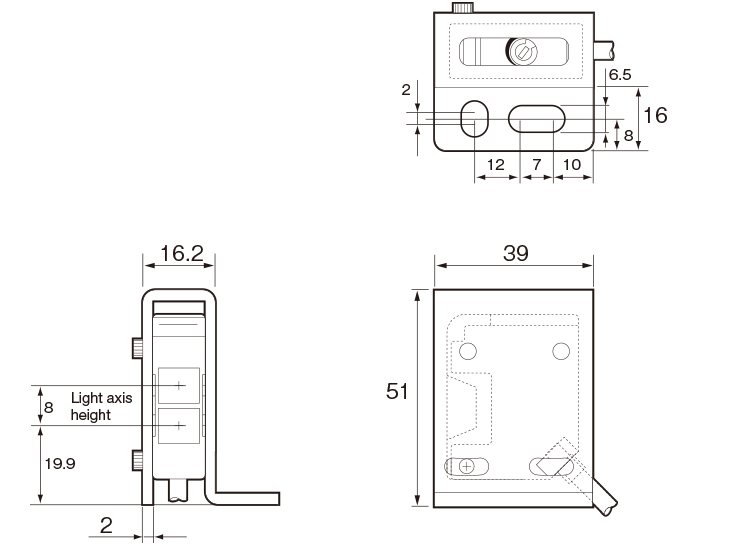

LK-S01

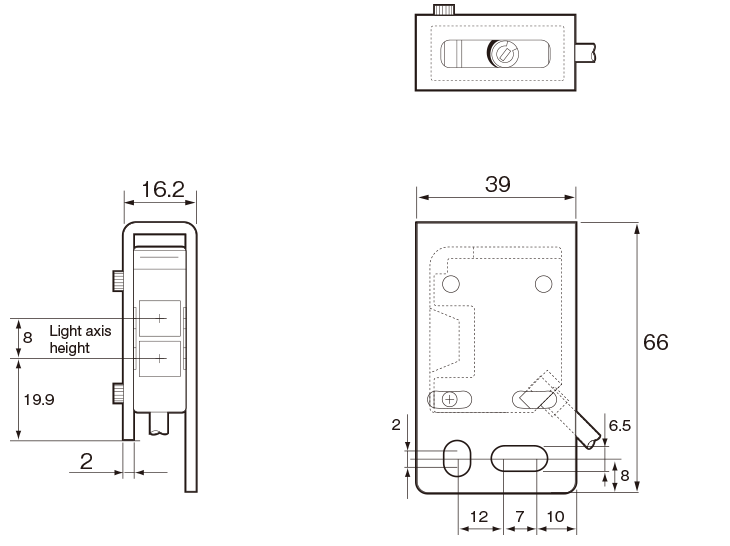

LK-S02
SR-Q series

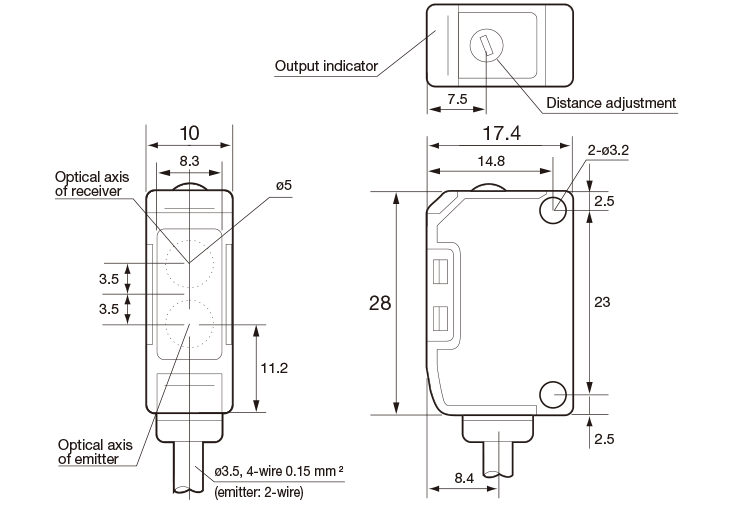

Cable type

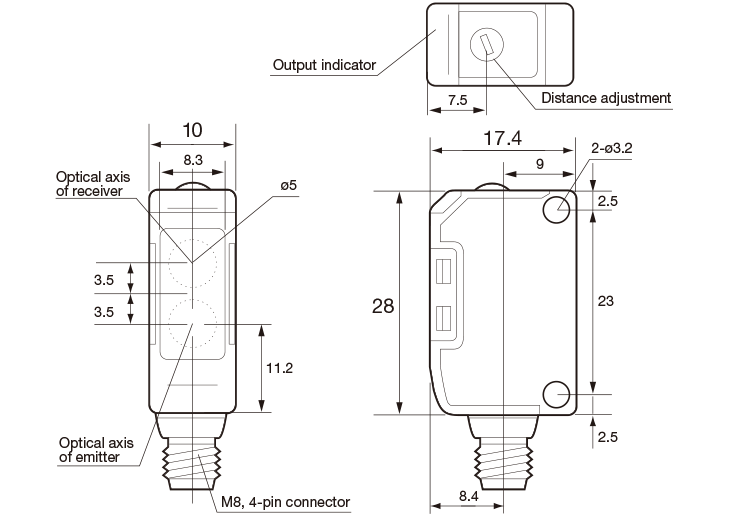

Connector type
SR-Q series with mounting bracket
Cable type (when using BEF-W150-B)

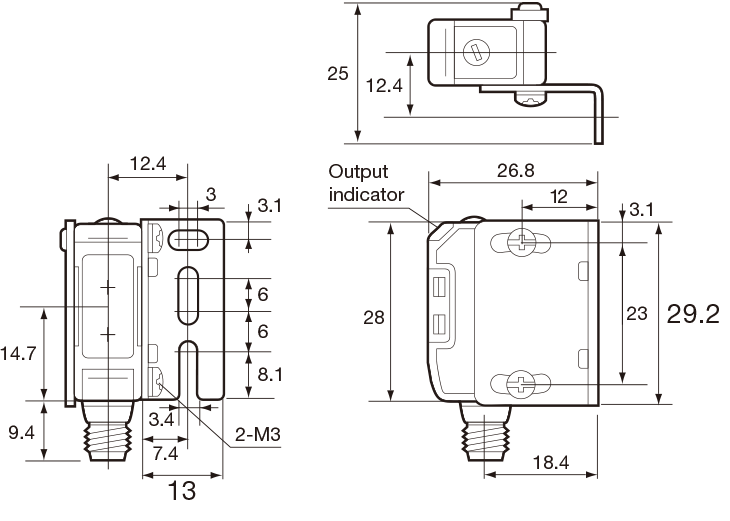

Connector type (when using BEF-W150-A)
Mounting bracket (included)
-
BEF-W150-B (included with sensor)
-
BEF-W150-A (optional)
-
Nut plate (included)
SR-Q series with protective mounting bracket

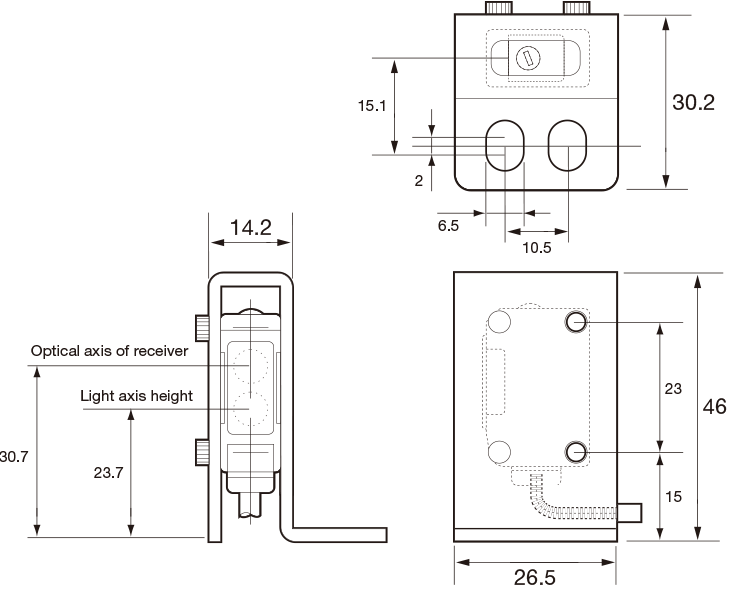

LS-S01
t = 2

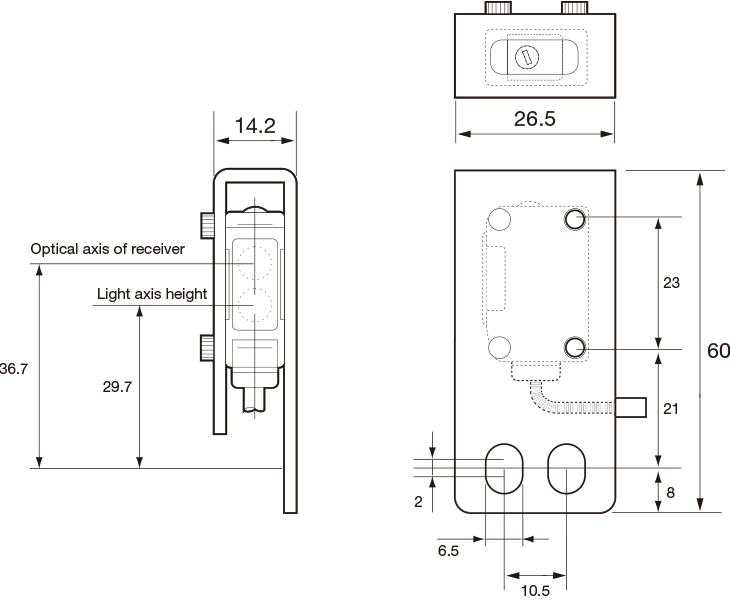

LS-S02
t = 2
Connector cable (optional)
-
M84CN-2S, M84CN-5S, M84CN-10S
-
M84CN-2L, M84CN-5L, M84CN-10L
Reflector
-
V-61: Standard type reflector (included)
-
V-42: Small reflector (optional)
-
P45A: Vertical type reflector (optional)
