Circuit Diagram

I/O circuit diagram

• NPN output type



• PNP output type



• Connector type



• Notes

  • When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
  • Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
  • Avoid using the transient state while the power is on (approx. 100 ms).

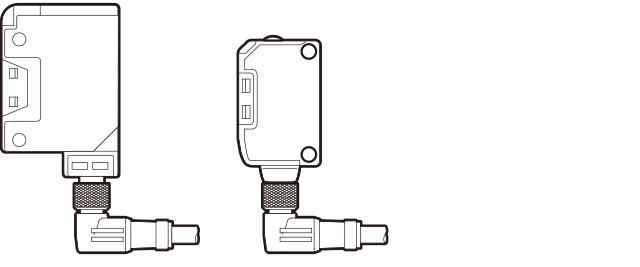

  • The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.
