Specifications

Technical Data

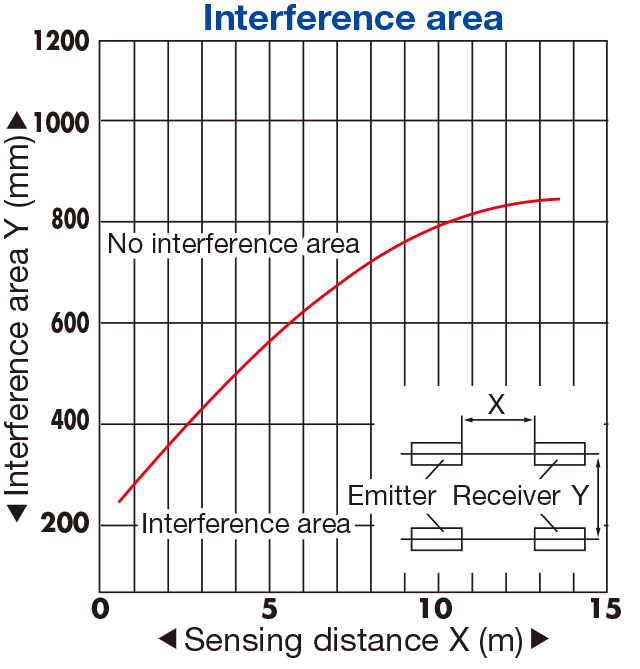

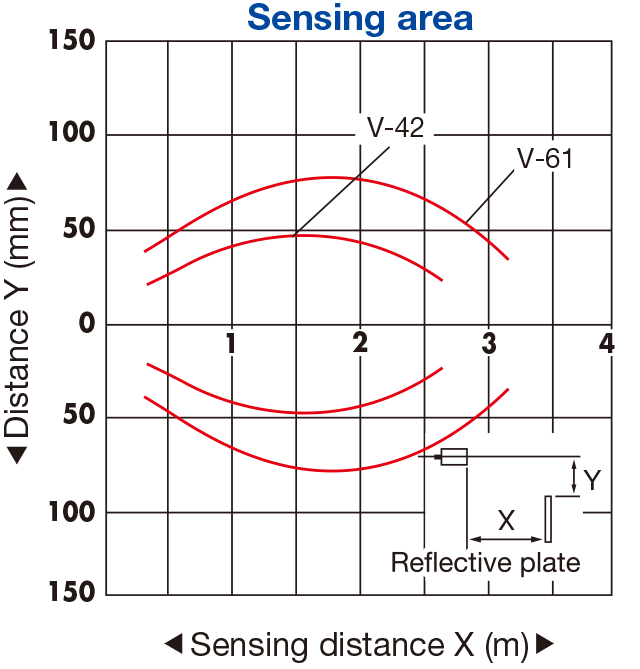

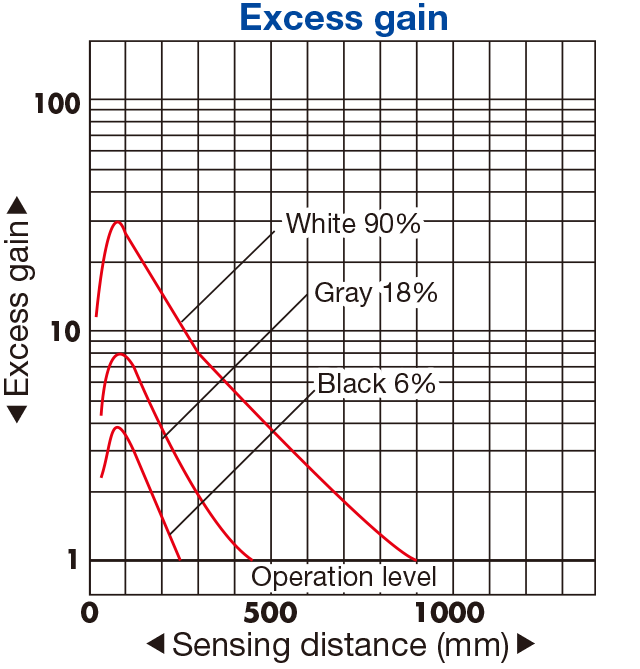

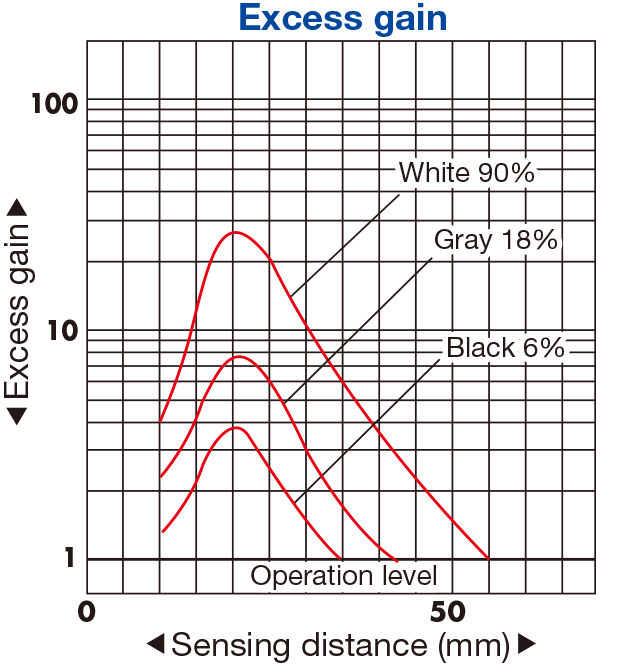

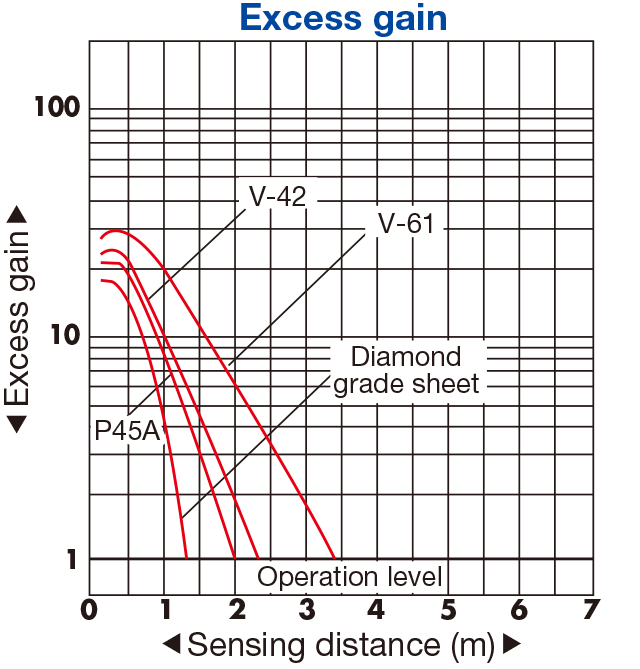

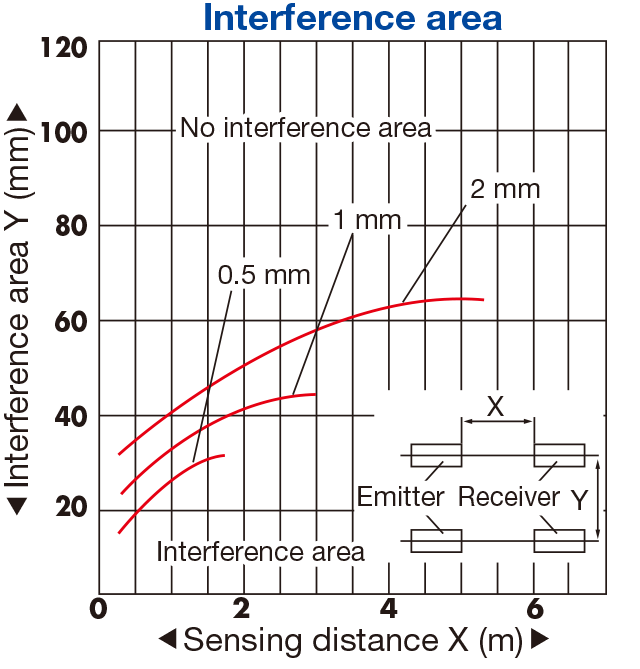

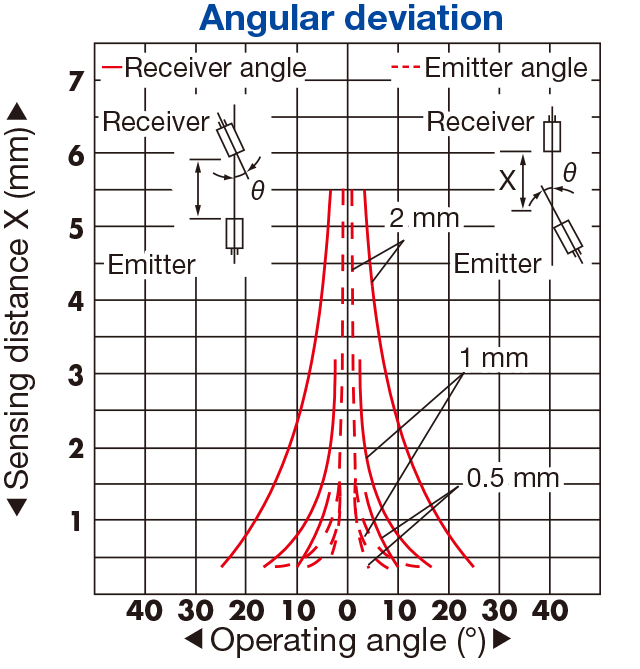

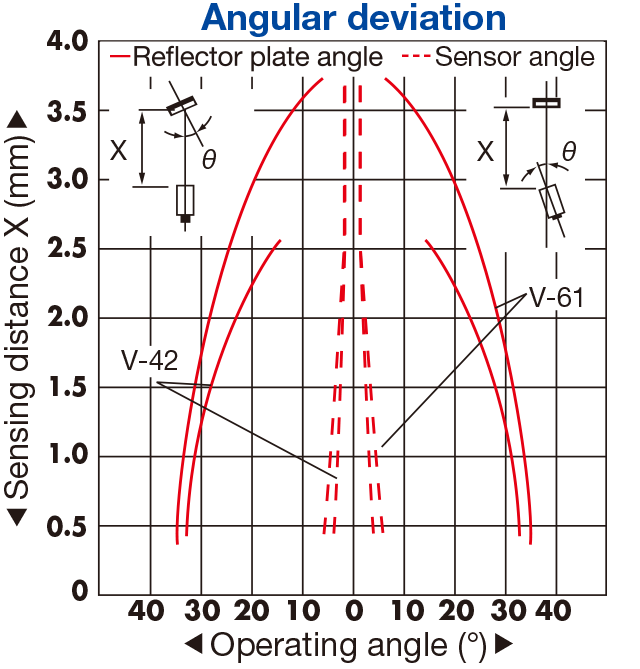

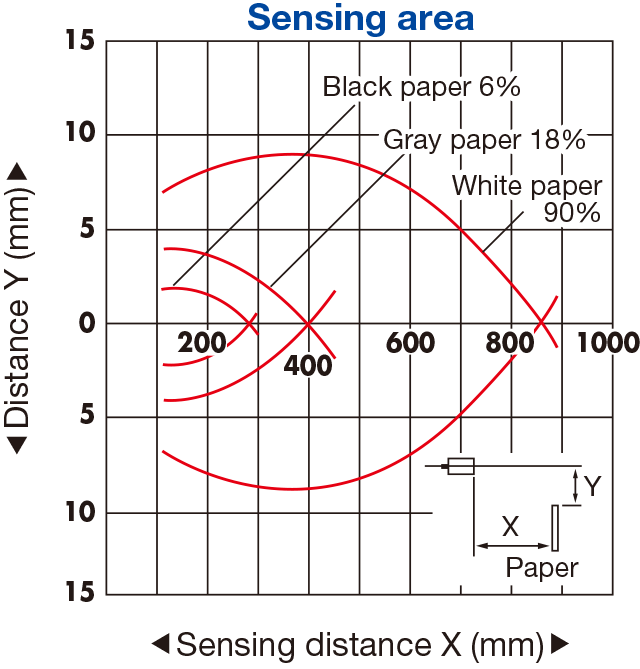

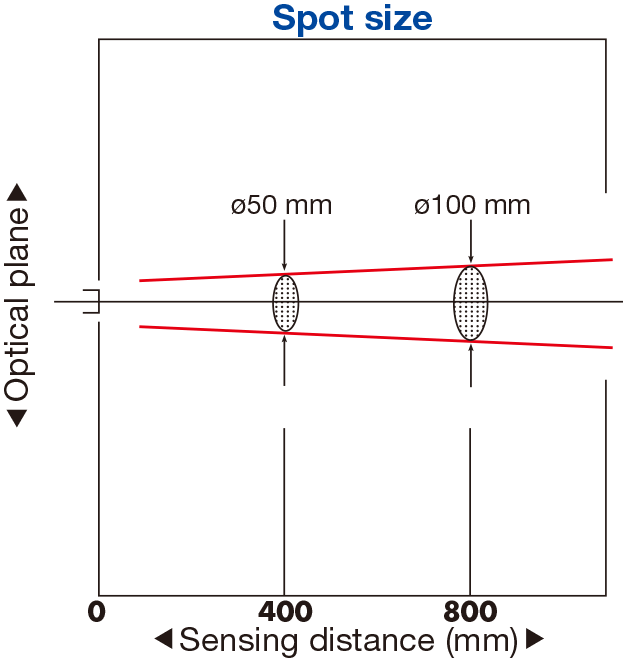

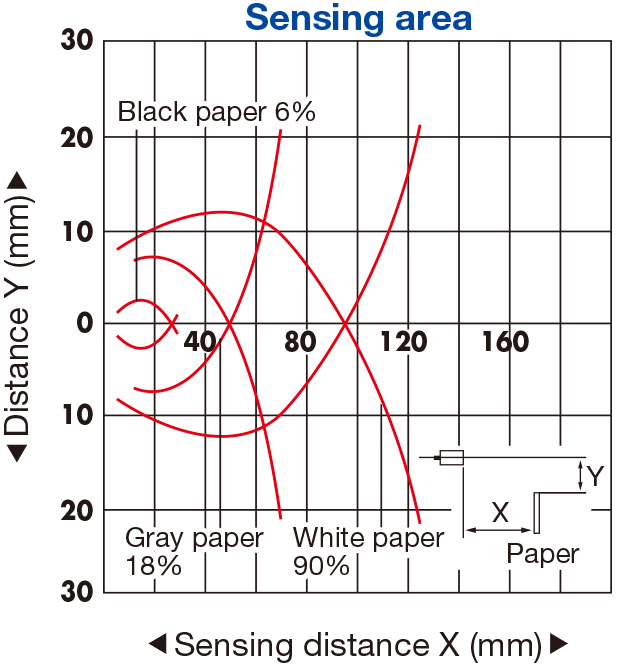

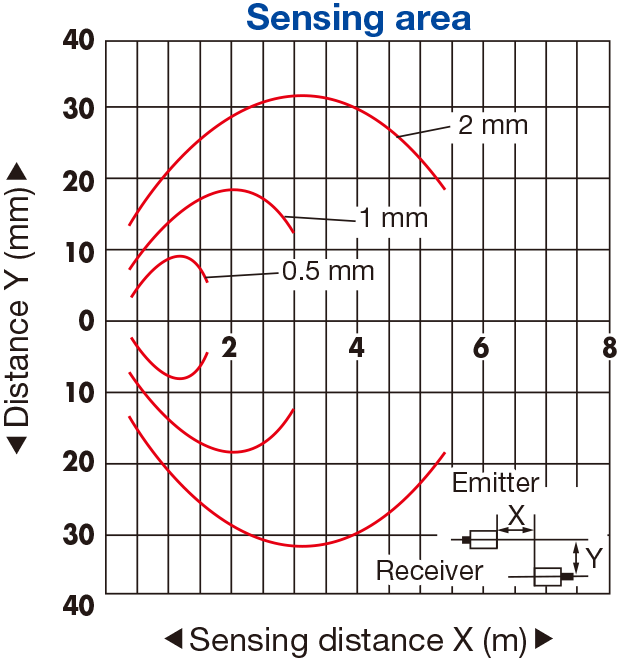

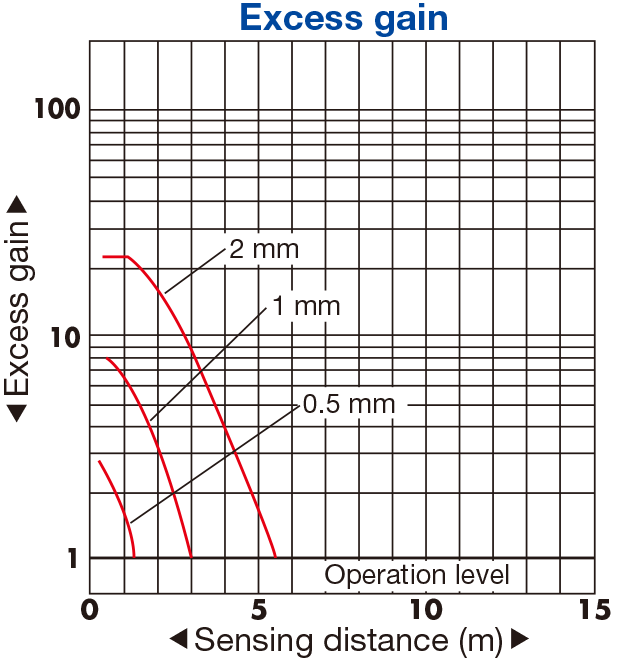

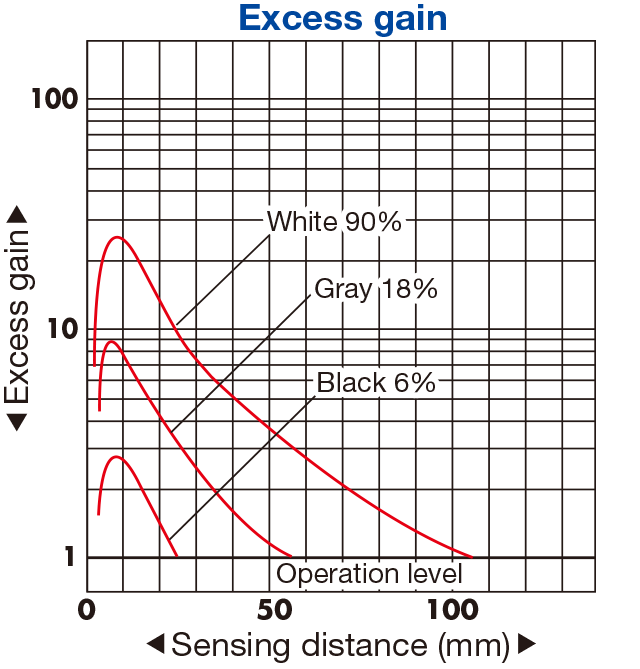

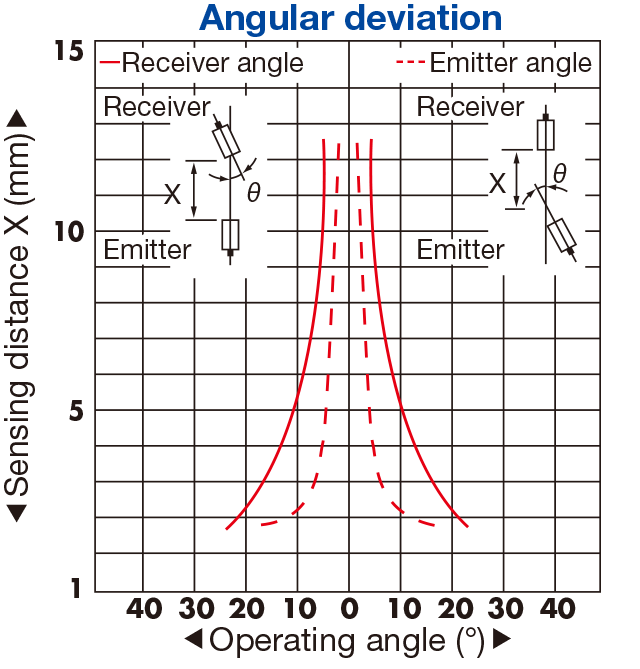

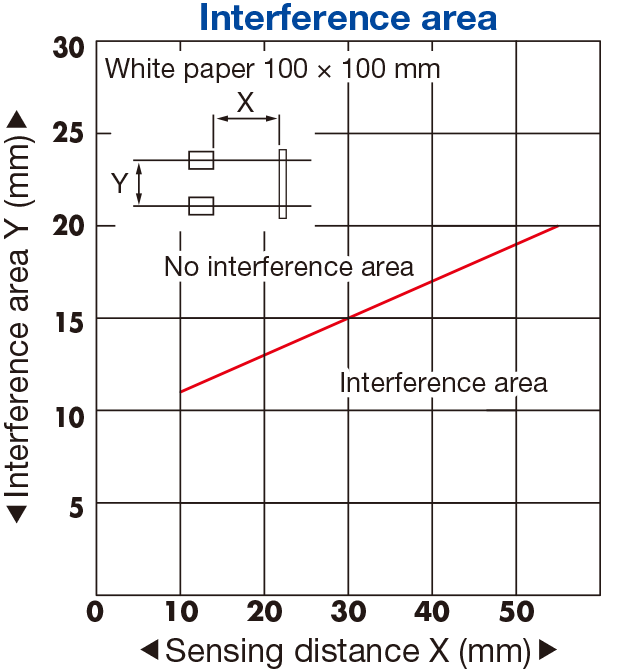

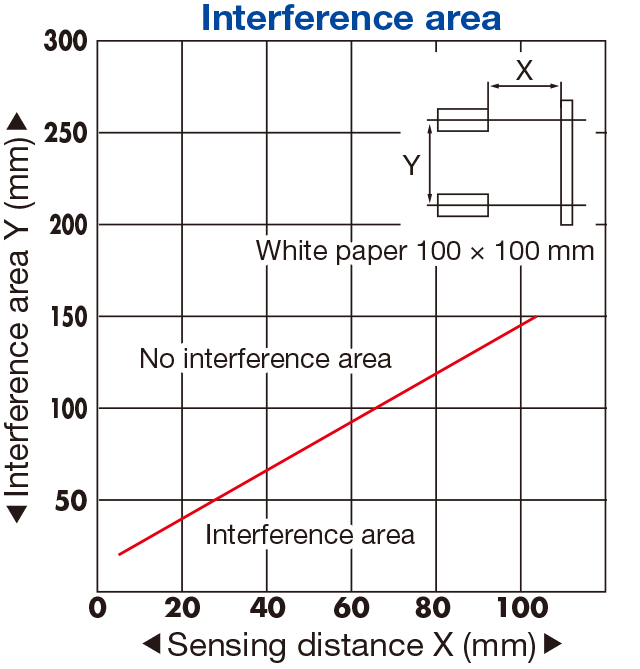

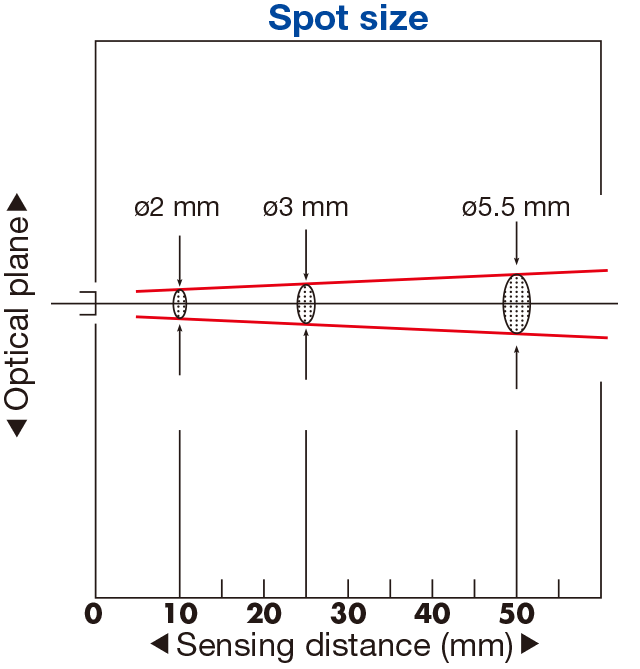

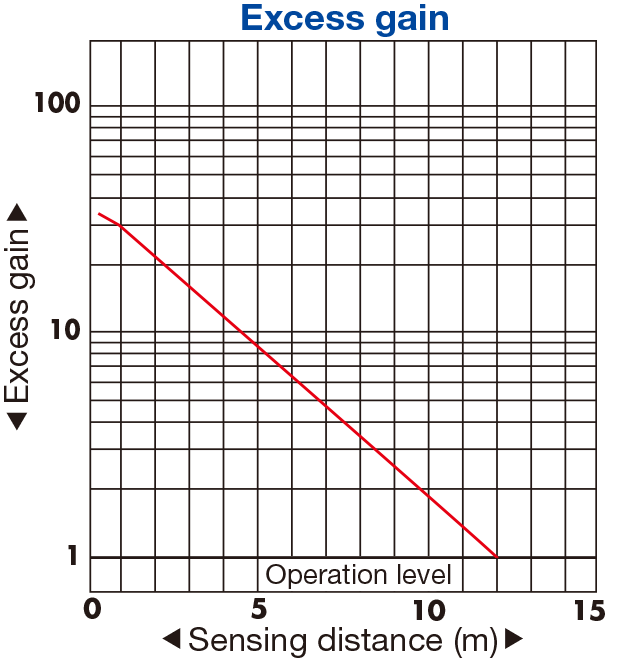

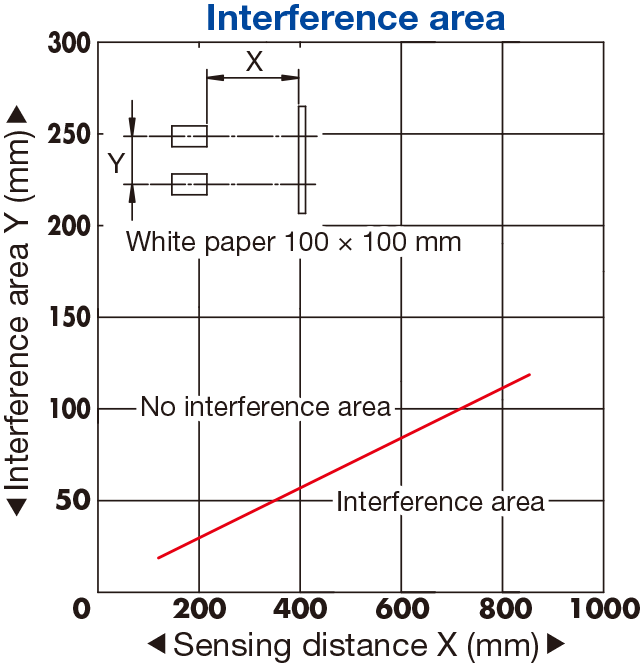

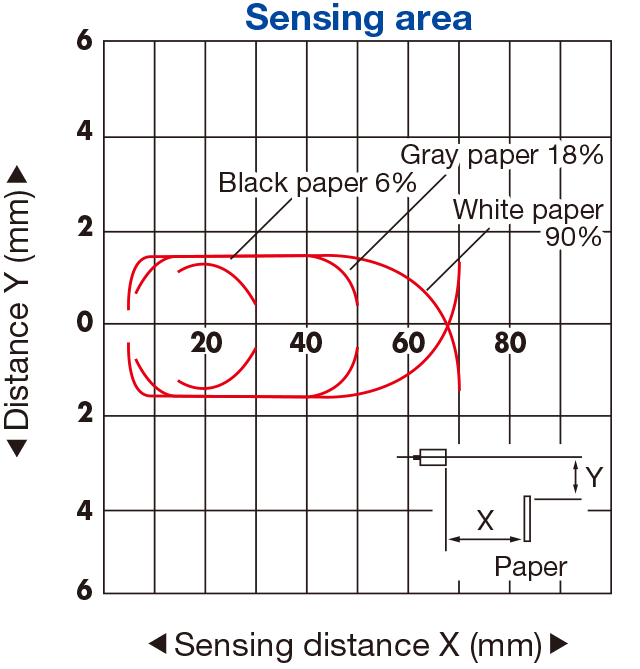

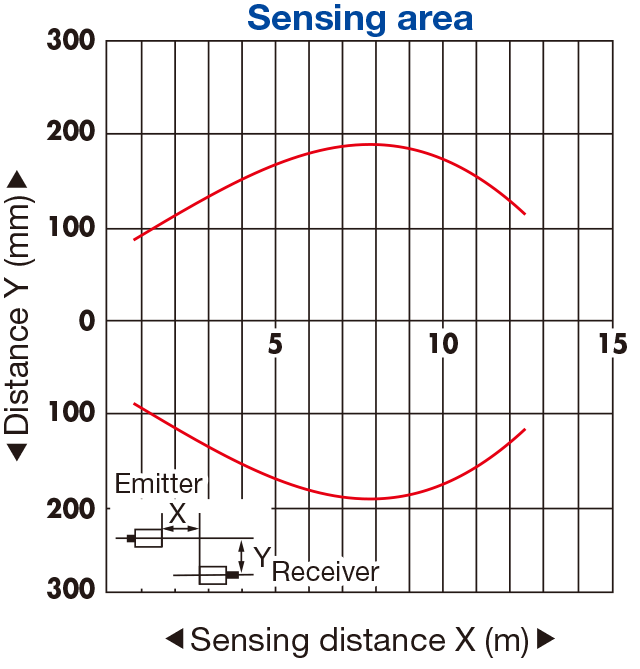

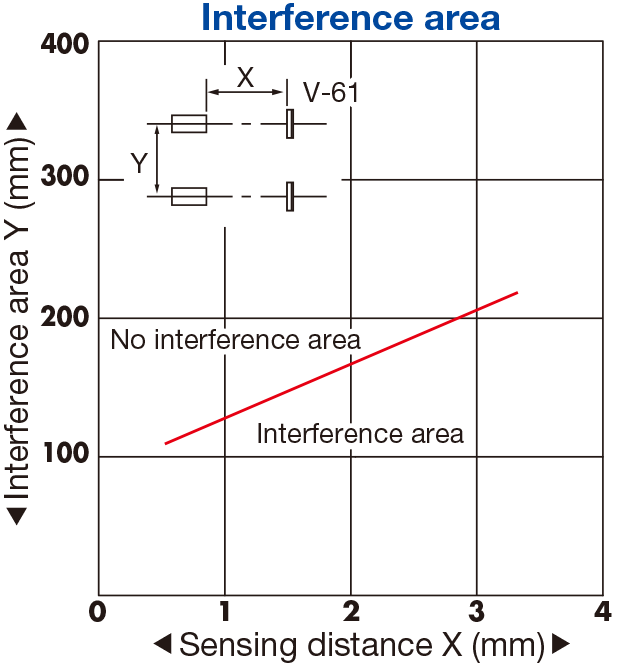

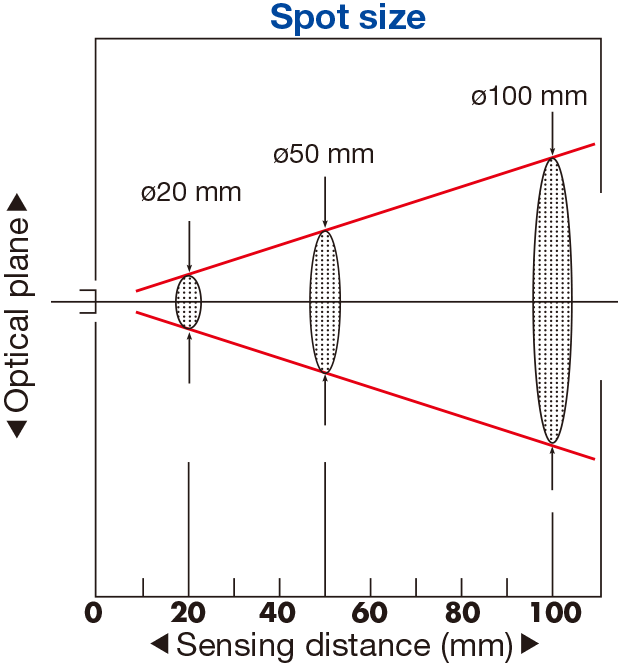

Typical characteristic data

Technical Data

Type			Through-beam type	Retro-reflective type
Model	NPN	Cable type	JT-H1000N/JT-S1000N	JR-H300N/JR-S300N
	NPN	Connector type	JT-H1000CN/JT-S1000CN	JR-H300CN/JR-S300CN
	PNP	Cable type	JT-H1000P/JT-S1000P	JR-H300P/JR-S300P
	PNP	Connector type	JT-H1000CP/JT-S1000CP	JR-H300CP/JR-S300CP
Sensing distance			10 m	0.01 to 3 m
Light source			Infrared LED	Red LED
Smallest detectable object			ø6 mm	ø40 mm
Response time			0.5 ms or less
Hysteresis			-

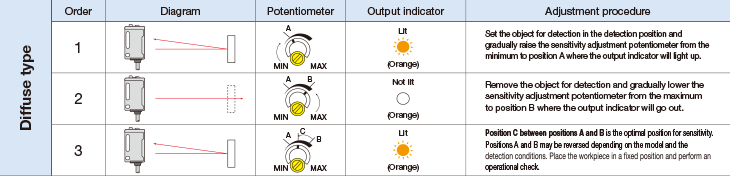

Distance adjustment			2-turn endless potentiometer (with indicator)
Indicators			Output indicator (orange LED), Stability indicator (green LED)
Control output			NPN/PNP type Open collector Max. 100 mA/30 VDC
Output mode			Light ON / Dark ON selection switch
Connection type			Cable type: Cable length: 2 m (ø4 mm) / Connector type: M8, 4-pin
Insulation resistance			20 MΩ or more (with 500 VDC)
Rating	Supply voltage		10 to 30 VDC, including 10% ripple (p-p)
Rating	Current consumption		Emitter: 20 mA or less Receiver: 15 mA or less	20 mA or less
Applicable regulations			EMC directive (2004/108/EC)
Applicable standards			EN 60947-5-2
Company standards			Noise resistance: Feilen Level 3 cleared
Environmental resistance	Ambient temperature/humidity		-25 to +55℃ (no freezing) / 35 to 85% RH (no condensation)
	Ambient illuminance		Sunlight: 10,000 lx Incandescent lamp: 3,000 lx
	Vibration resistance		10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
	Shock resistance		Approx. 100 G (1000 m/s²); 3 times in each of the X, Y, and Z directions
	Degree of protection		IEC standard, IP67 / JEM standard, IP67g
Material			Housing: PBT, Lens: Polycarbonate (retro-reflective type is PMMA)
Weight (including cable)			Through-beam type emitter: Approx. 13 g Other: Approx. 15 g
Included accessories			Mounting bracket)@@@: BEF-W160	Mounting bracket)@@@: BEF-W160 Reflector: V-61

•Specifications are subject to change without prior notice for product improvement purposes.

Type			Diffuse-reflective type	Limited diffuse reflective type	Wide angle diffuse reflective type
Model	NPN	Cable type	JD-HR80N/JD-SR80N	JD-HL03N/JD-SL03N	JD-HW08N/JD-SW08N
	NPN	Connector type	JD-HR80CN/JD-SR80CN	JD-HL03CN/JD-SL03CN	JD-HW08CN/JD-SW08CN
	PNP	Cable type	JD-HR80P/JD-SR80P	JD-HL03P/JD-SL03P	JD-HW08P/JD-SW08P
	PNP	Connector type	JD-HR80CP/JD-SR80CP	JD-HL03CP/JD-SL03CP	JD-HW08CP/JD-SW08CP
Sensing distance			800 mm	20 to 50 mm	80 mm
Light source			Red LED
Smallest detectable object			-
Response time			0.5 ms or less
Hysteresis			20% or less
Distance adjustm			2-turn endless potentiometer (with indicator)
Indicators			Output indicator (orange LED), Stability indicator (green LED)
Control output			NPN/PNP type Open collector Max. 100 mA/30 VDC
Output mode			Light ON / Dark ON selection switch
Connection type			Cable type: Cable length: 2 m (ø4 mm) / Connector type: M8, 4-pin
Insulation resistance			20 MΩ or more (with 500 VDC)
Rating	Supply voltage		10 to 30 VDC, including 10% ripple (p-p)
Rating	Current consumption		20 mA or less
Applicable regulations			EMC directive (2004/108/EC)
Applicable standards			EN 60947-5-2
Company standards			Noise resistance: Feilen Level 3 cleared
Environmental resistance	Ambient temperature/humidity		-25 to +55℃ (no freezing) / 35 to 85% RH (no condensation)
	Ambient illuminance		Sunlight: 10,000 lx Incandescent lamp: 3,000 lx
	Vibration resistance		10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
	Shock resistance		Approx. 100 G (1000 m/s²); 3 times in each of the X, Y, and Z directions
	Degree of protection		IEC standard, IP67 / JEM standard, IP67g
Material			Housing: PBT, Lens: Polycarbonate (retro-reflective type is PMM)
Weight without cable			Through-beam type emitter: Approx. 13 g Other: Approx. 15 g
Included accessor			Mounting bracket: BEF-W160
