Dimensions

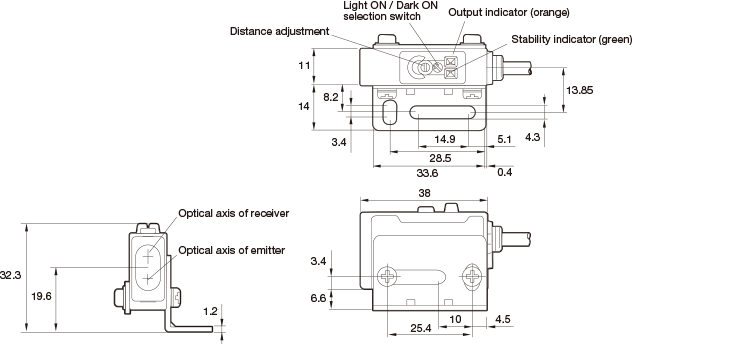

Sensor

*Tighten to each of the sensor mounting holes with a torque of 0.5 N・m or less.

Mounting bracket

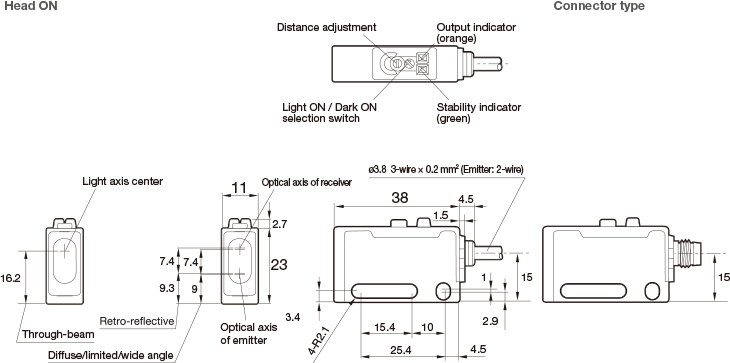

Head ON

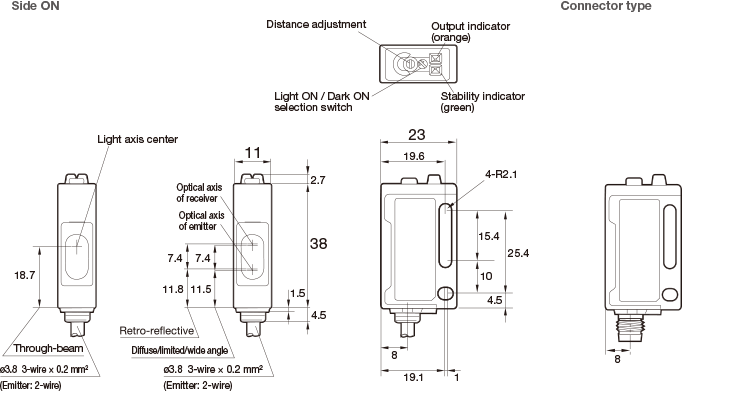

Side ON

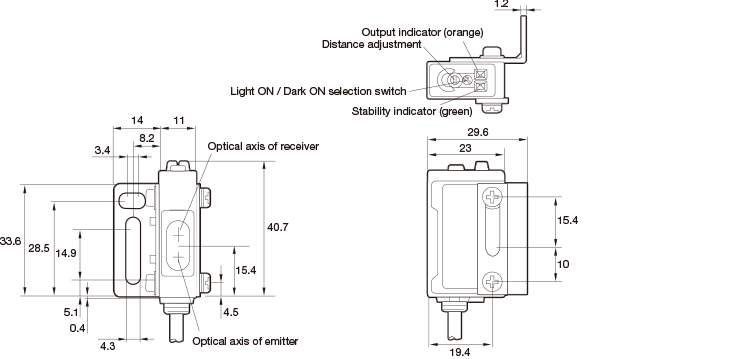

• Mounting bracket (included)

  BEF-W160

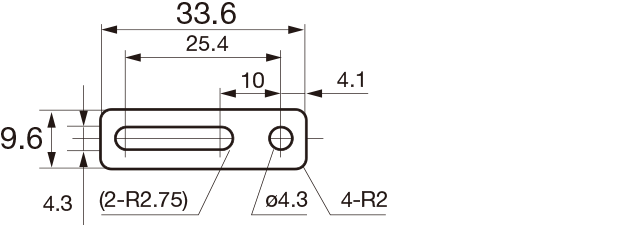

• Nut plate

  Included with BEF-W160 t = 1.2 mm



Connector cable (optional)

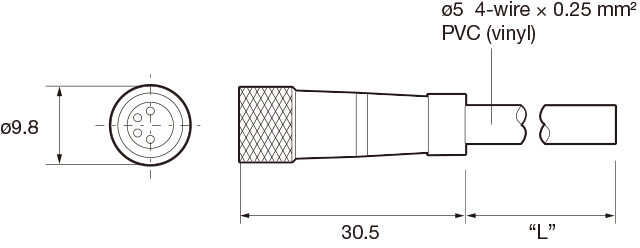

• JCN-S
  JCN-5S
  JCN-10S

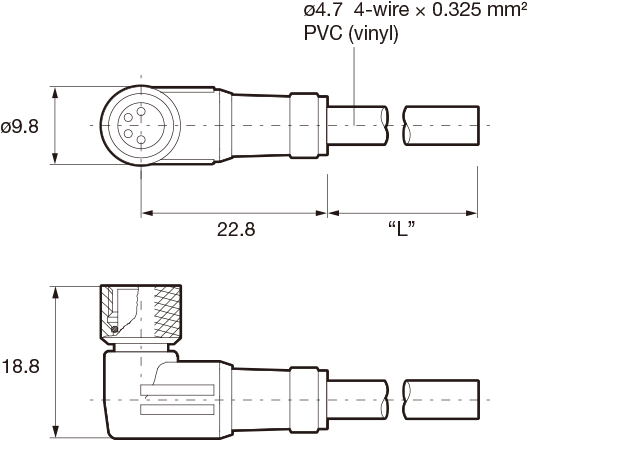

• JCN-L
  JCN-5L
  JCN-10L



Successor models

• M84CN-2S
  M84CN-5S
  M84CN-10S



• M84CN-2L
  M84CN-5L
  M84CN-10L



Reflector

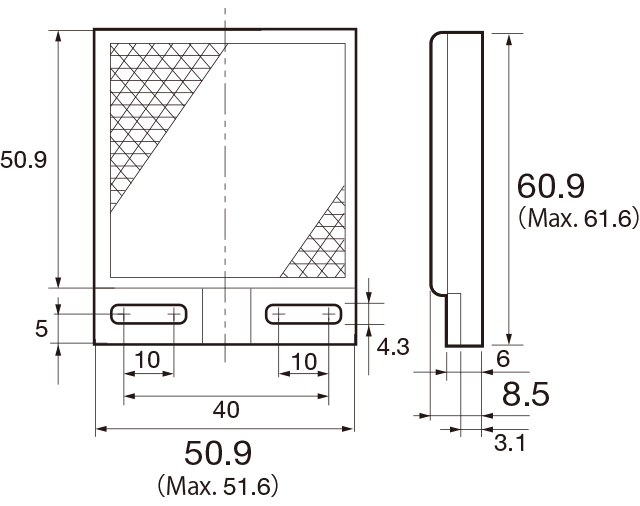

• V-61: Standard type reflector
  (included with retro-reflective type)

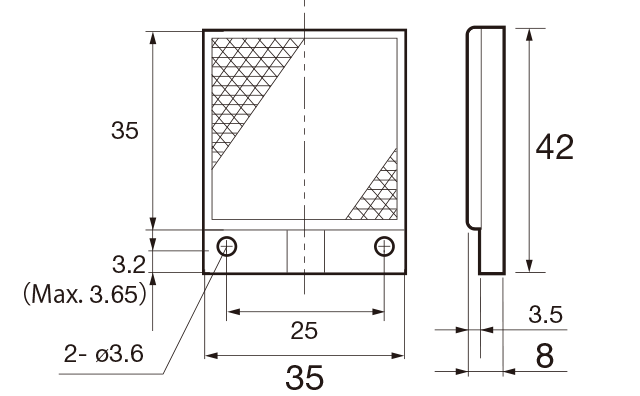

• V-42: Small reflector (optional)

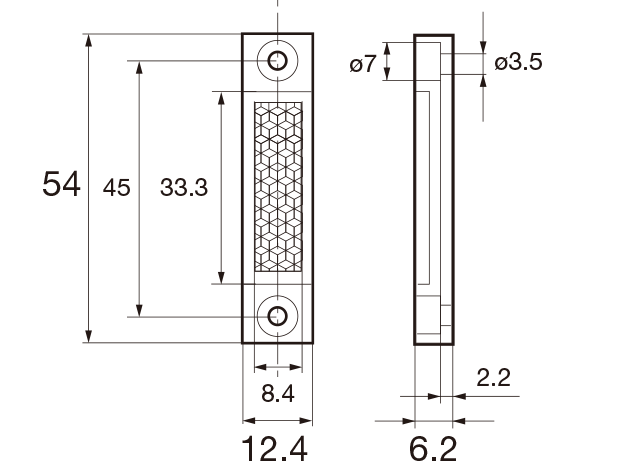

• P45A: Vertical type reflector (optional)
  DOL-1204-G02M



Slit mask

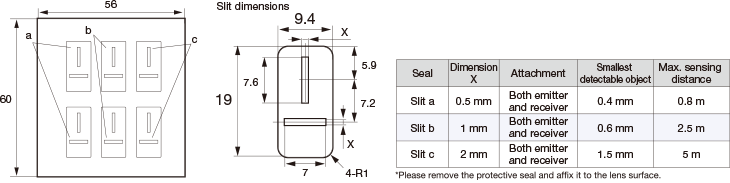

BL-160-SK: Slit mask (optional)

Protective mounting bracket (optional)

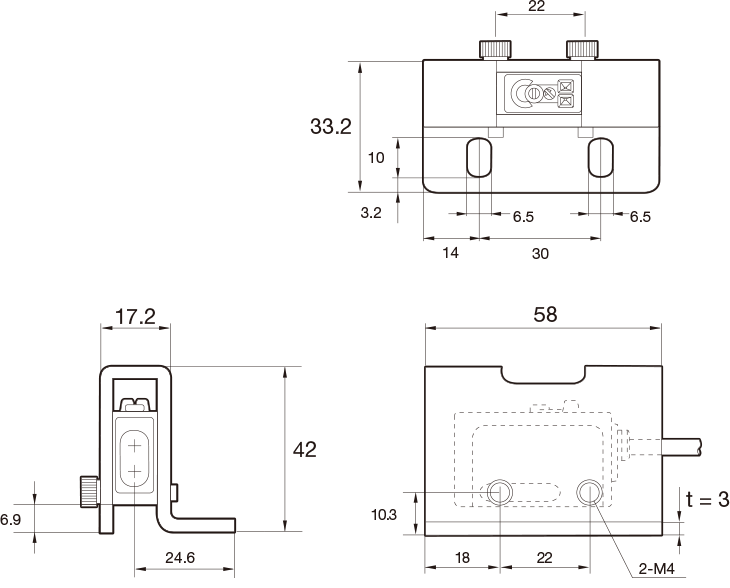

LJ-H01 (for Head ON)

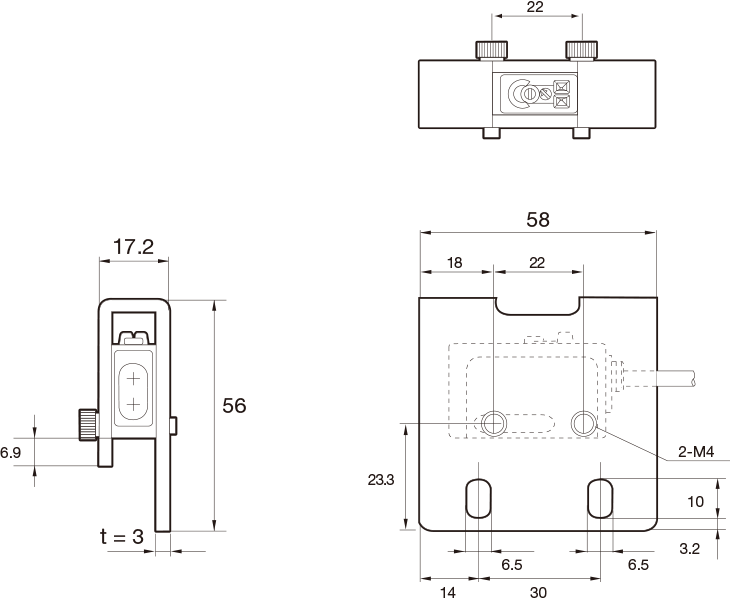

LJ-H02 (for Head ON)

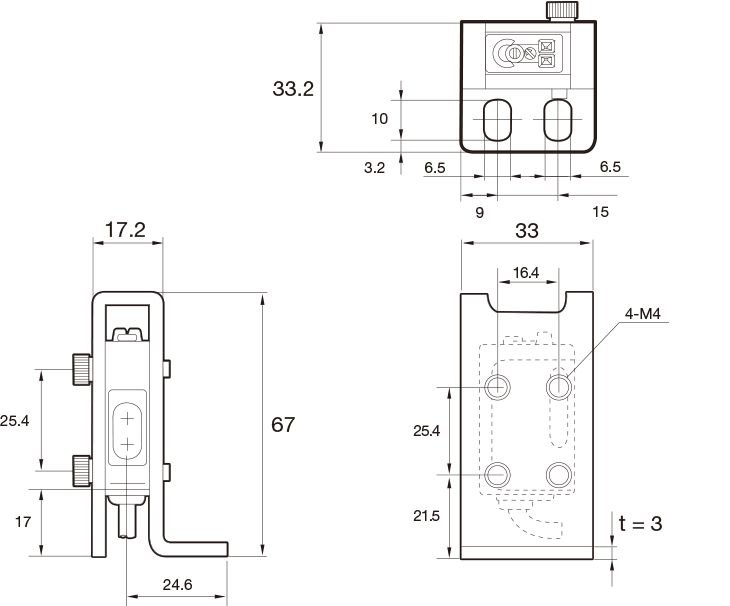

LJ-S01 (for Side ON)

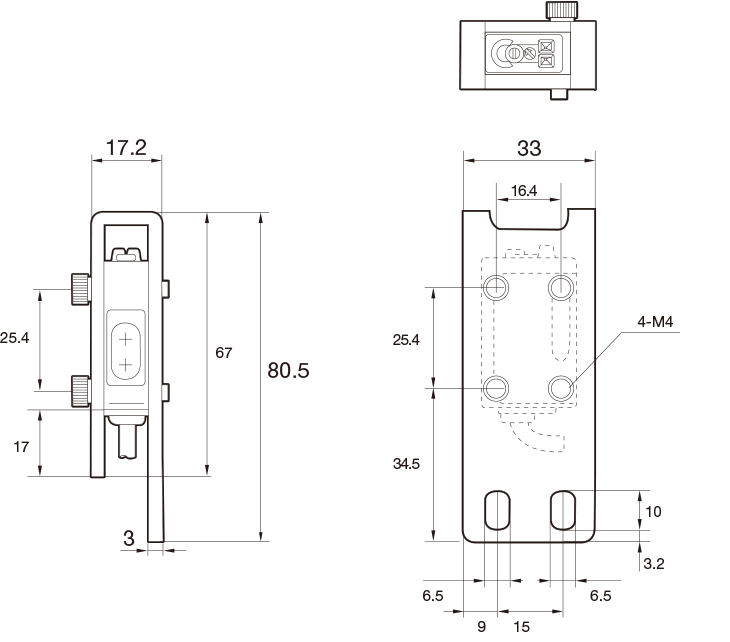

LJ-S02 (for Side ON)
