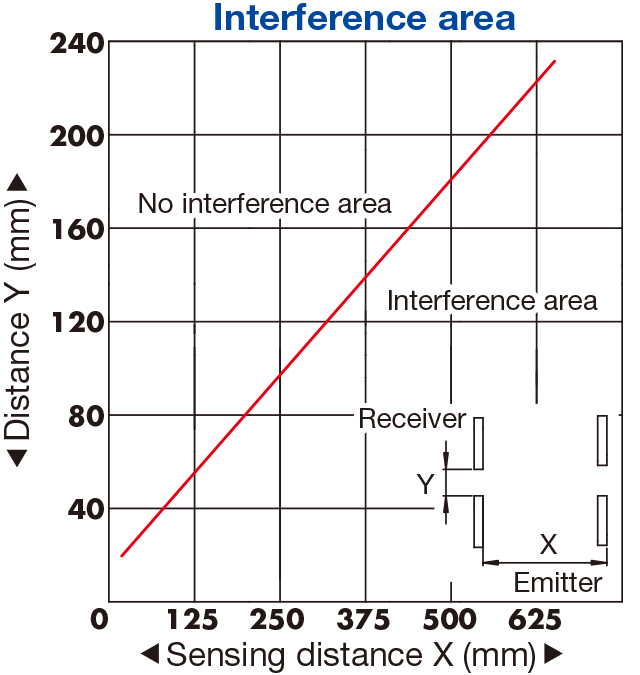

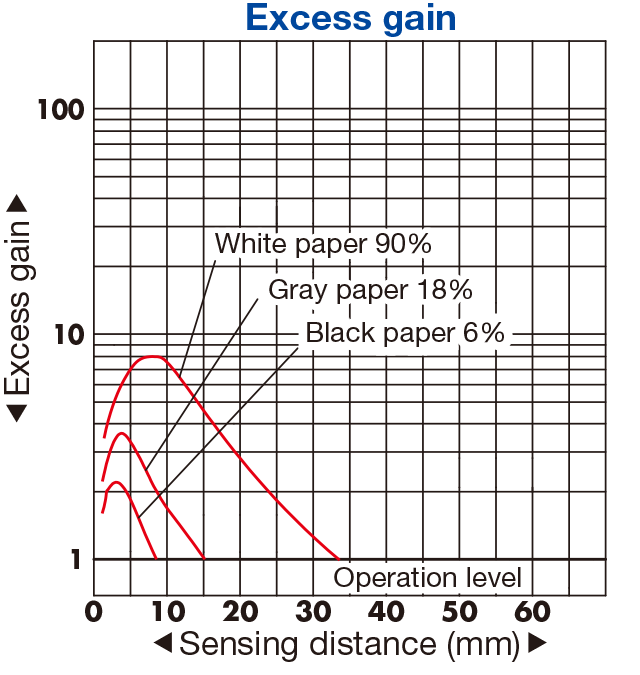

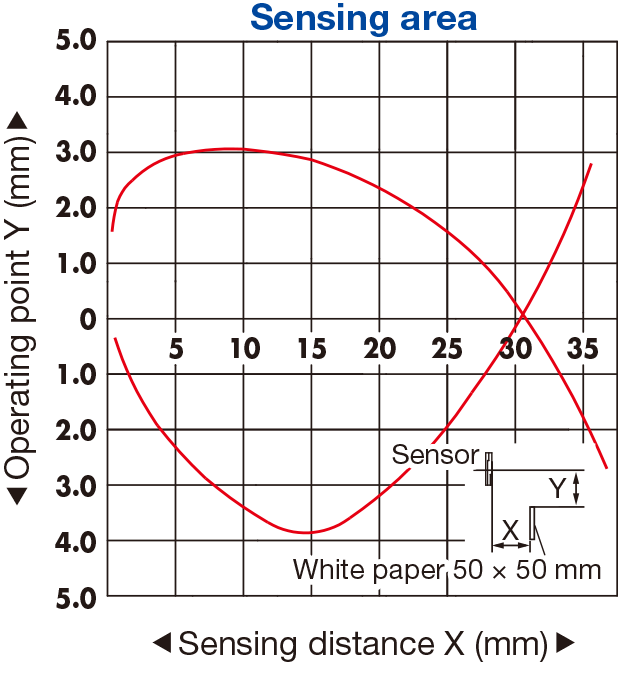

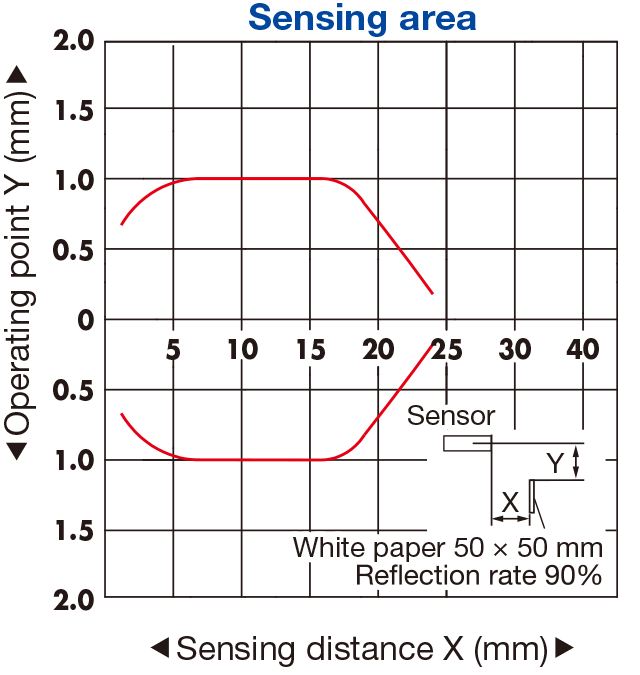

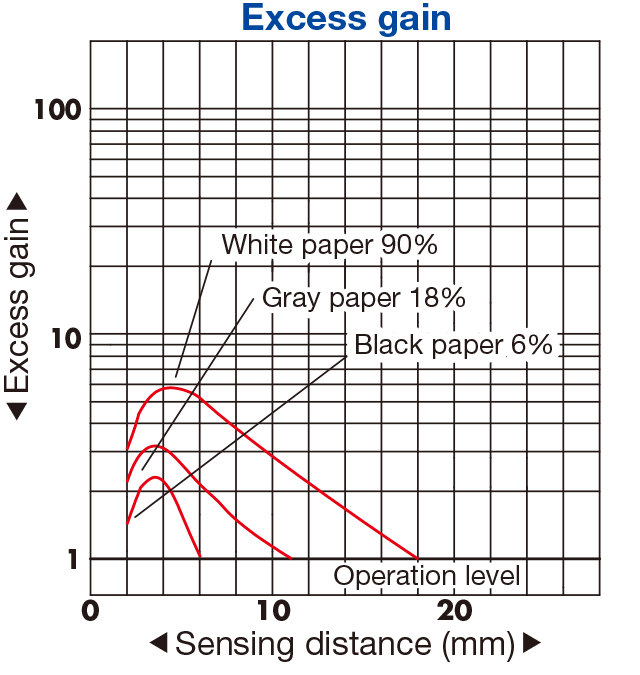

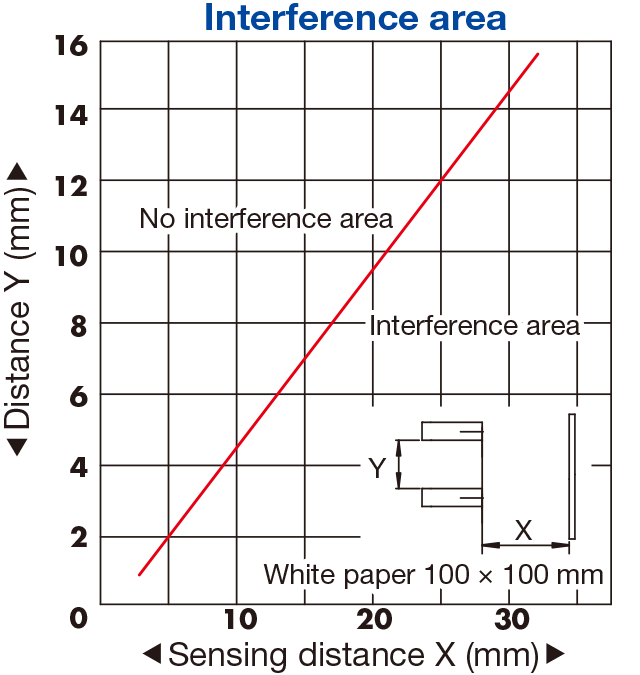

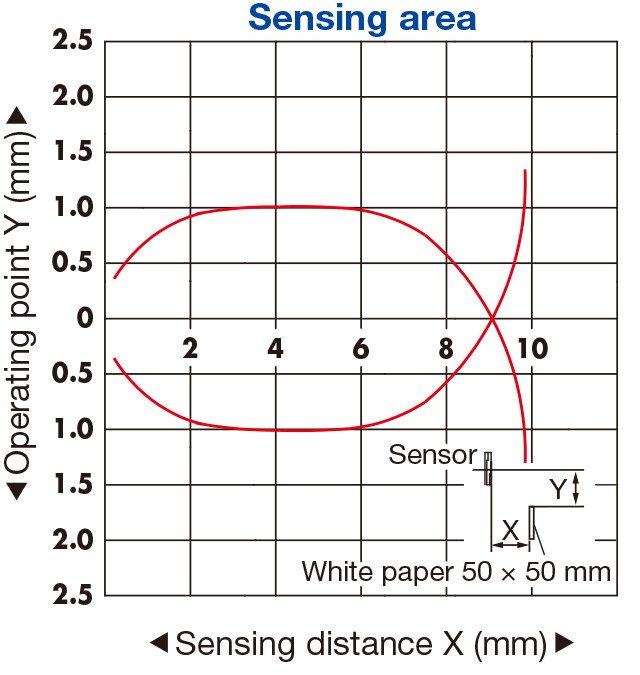

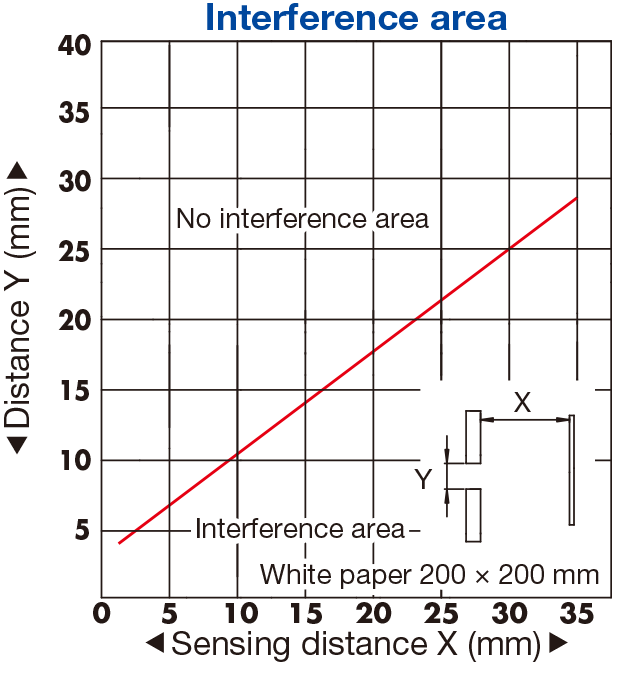

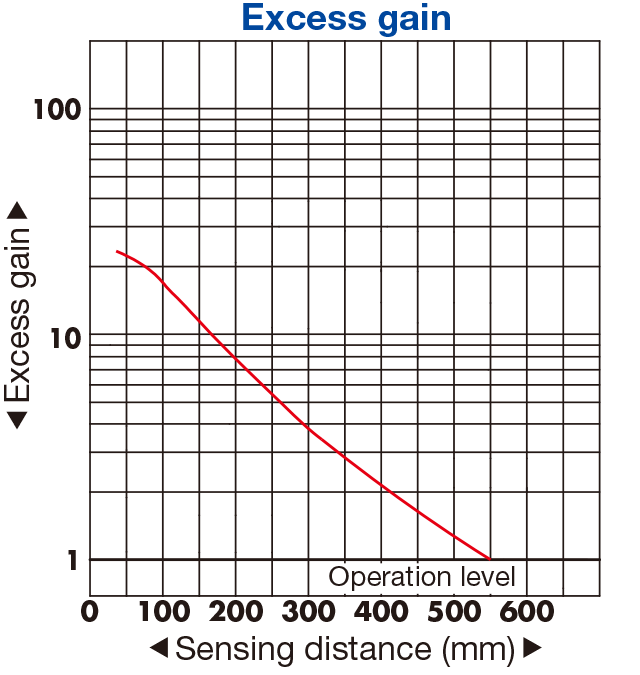

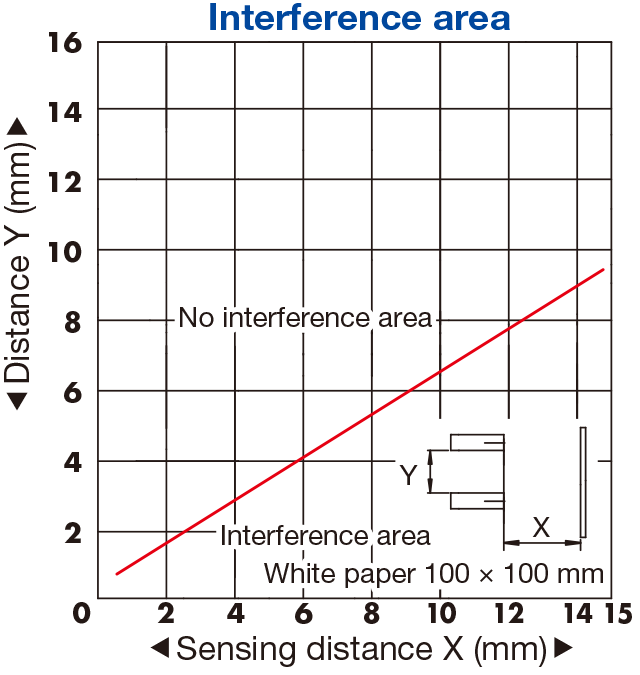

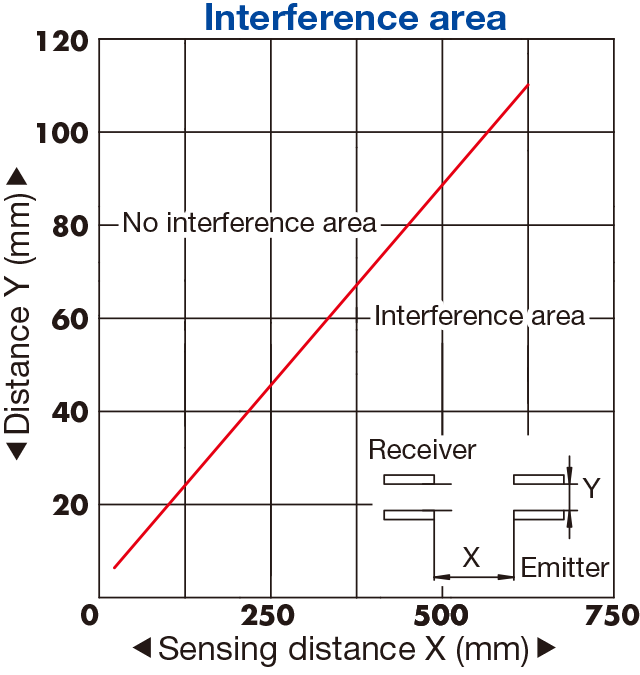

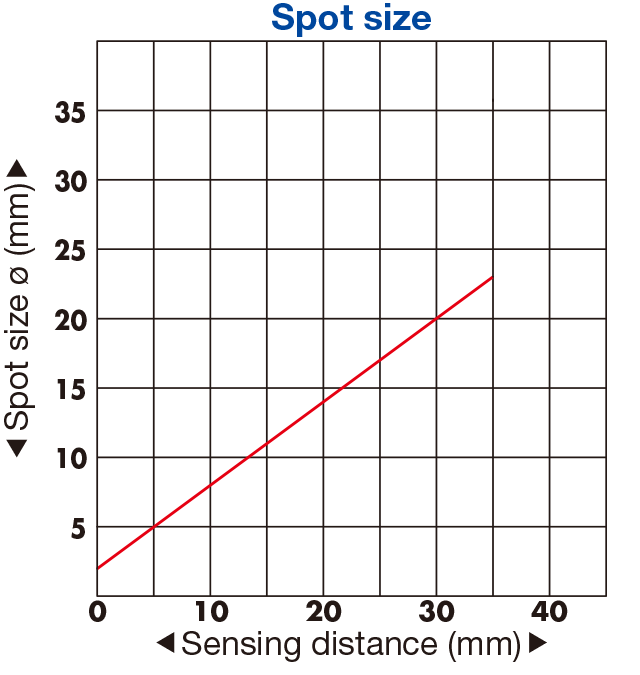

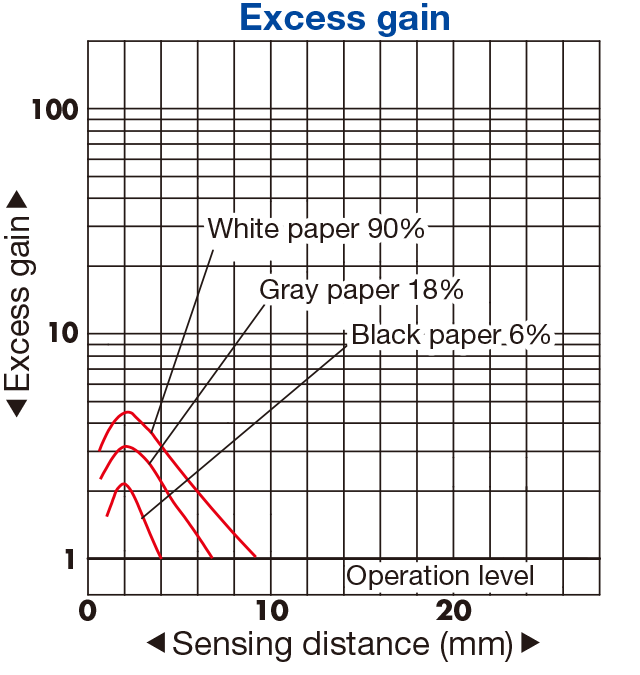

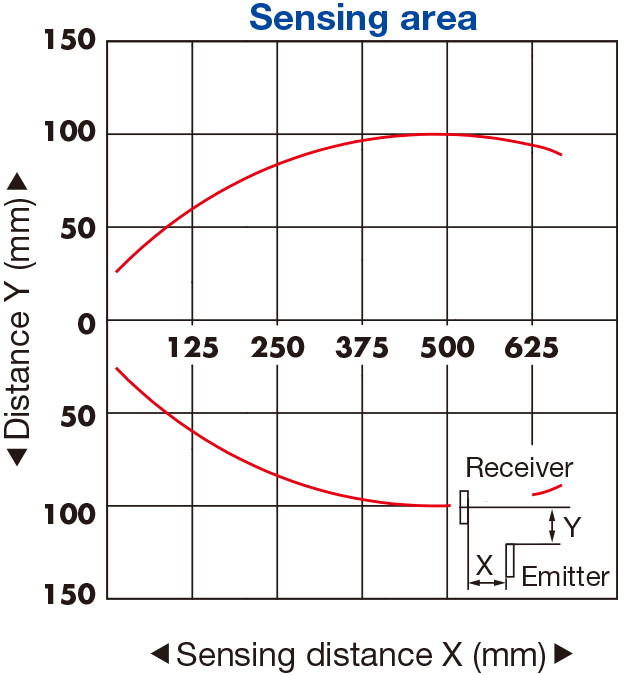

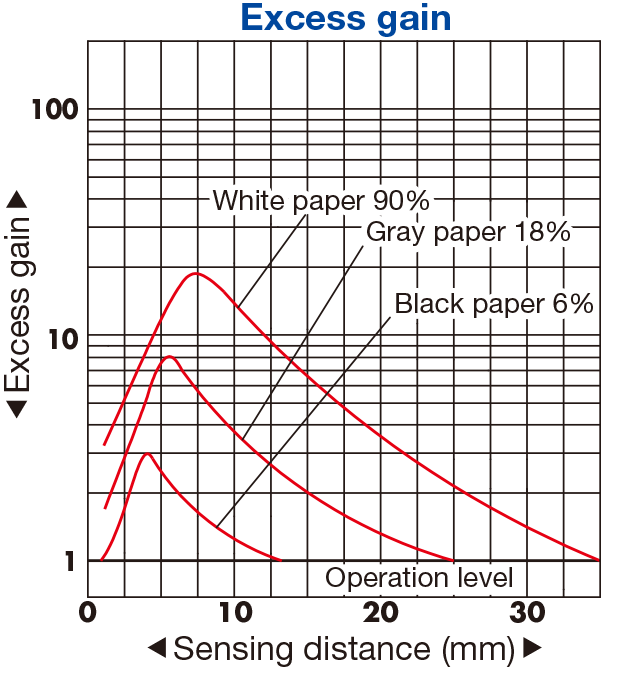

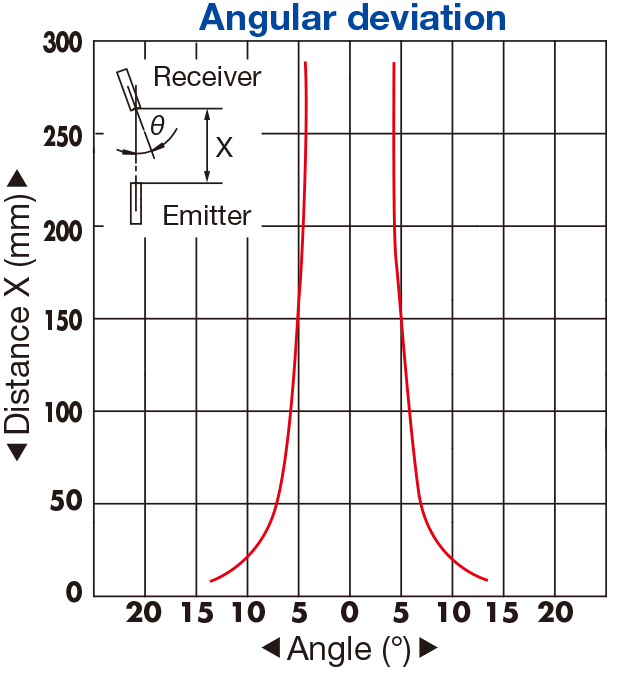

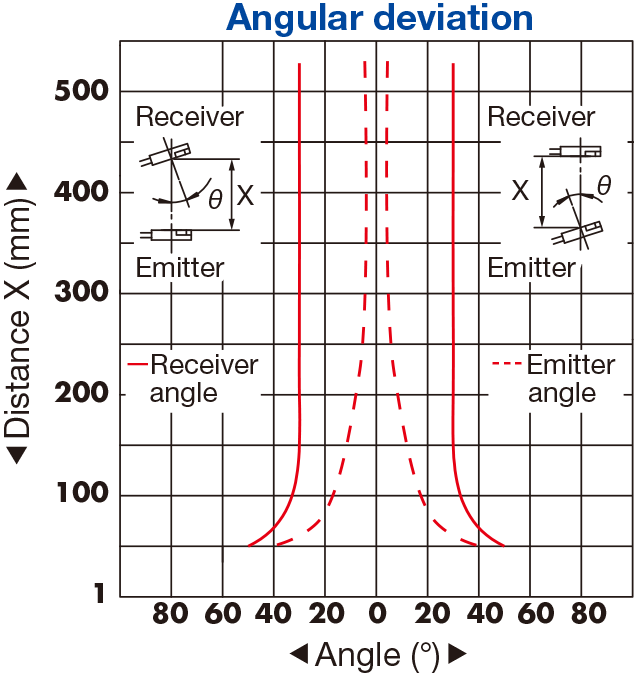

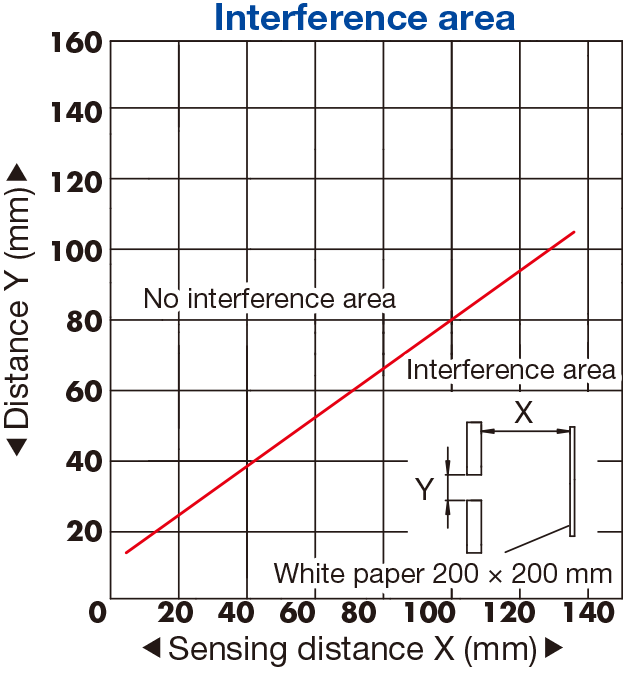

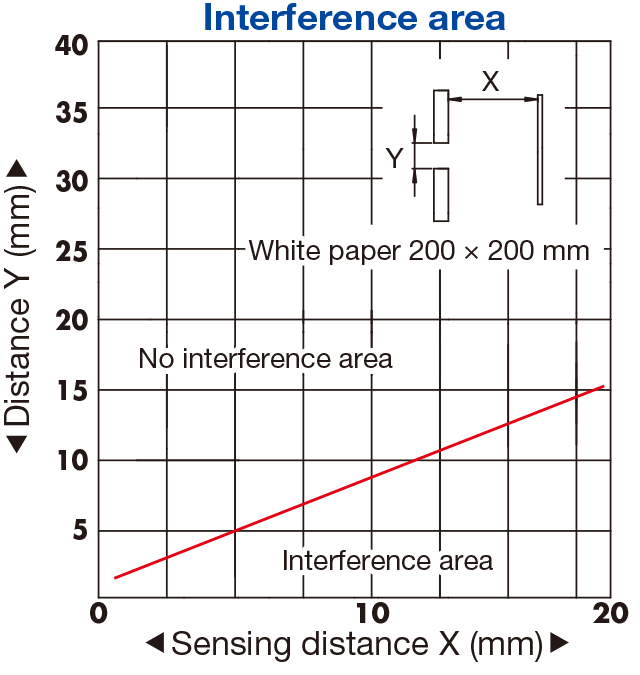

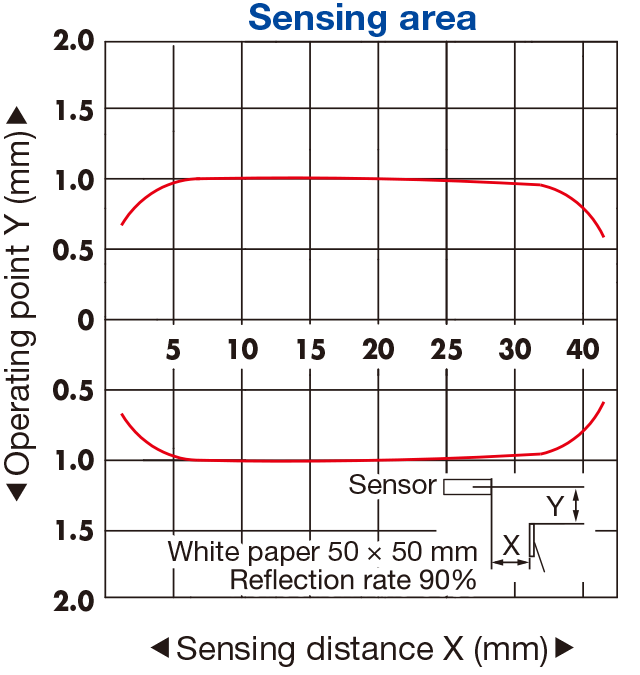

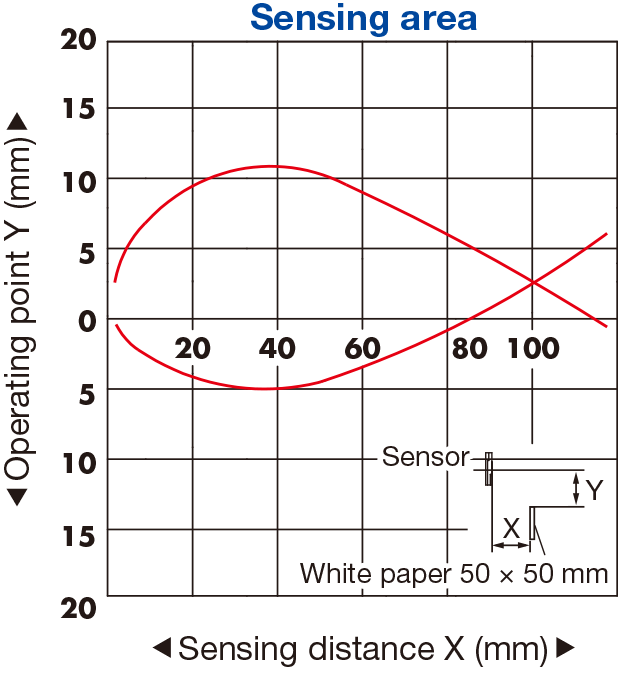

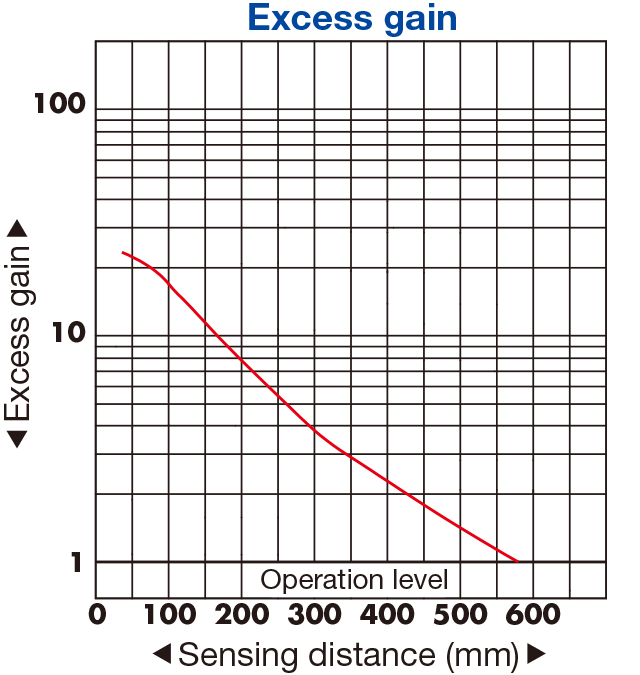

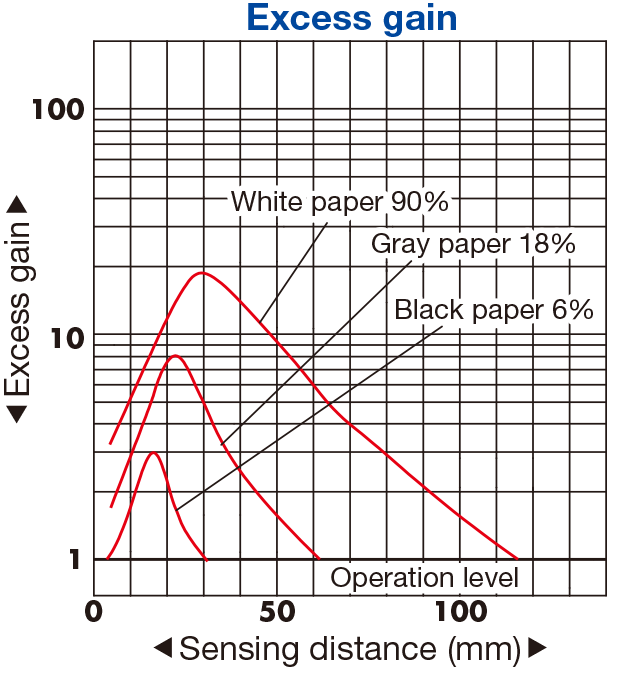

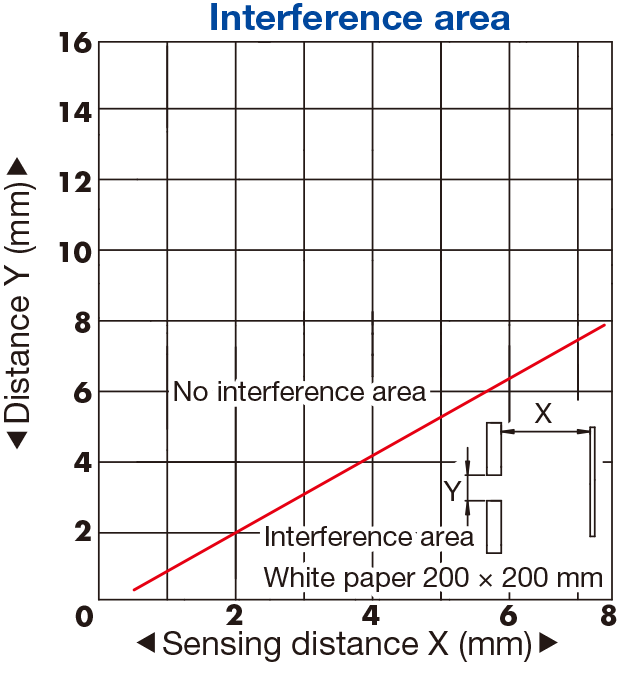

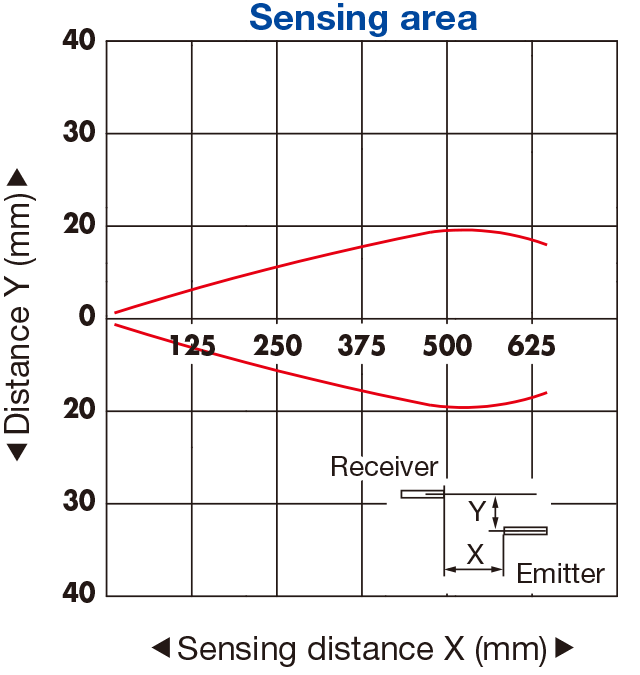

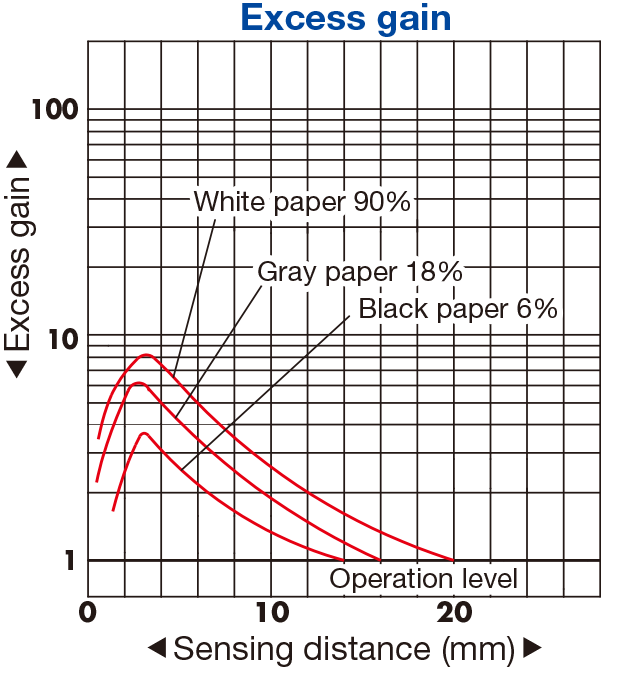

Typical characteristic data

Technical Data

Flat ON type

Type			Through-beam type	Diffuse-reflective type	Limited diffuse reflective type
Type			Through-beam type	Diffuse-reflective type	Long-range	Mid-range	Short-range
Model	NPN	Light ON model	ET-500NL	ED-100NL	EL-30NL	EL-15NL	EL-08NL
	NPN	Dark ON model	ET-500ND	ED-100ND	EL-30ND	EL-15ND	EL-08ND
	PNP	Light ON model	ET-500PL	ED-100PL	EL-30PL	EL-15PL	EL-08PL
	PNP	Dark ON model	ET-500PD	ED-100PD	EL-30PD	EL-15PD	EL-08PD
Sensing distance			500 mm	100 mm*	5 to 30 mm*	2 to 15 mm*	3 to 8 mm*
Light source			Red LED

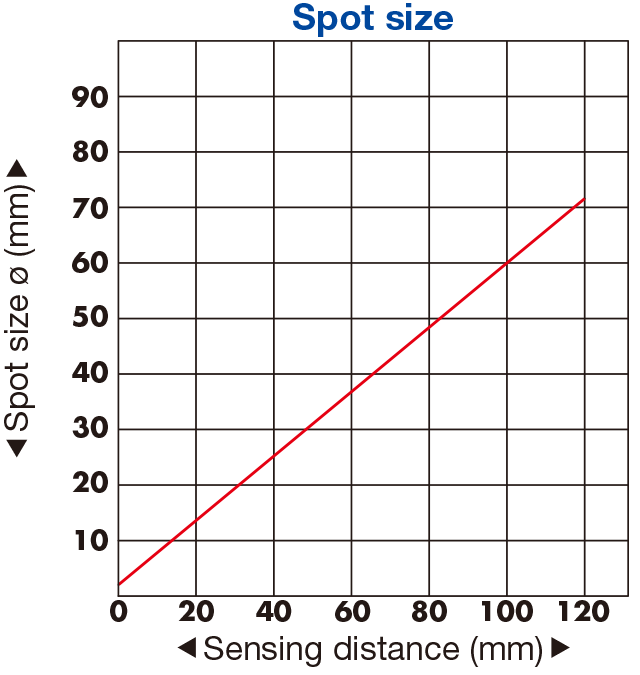

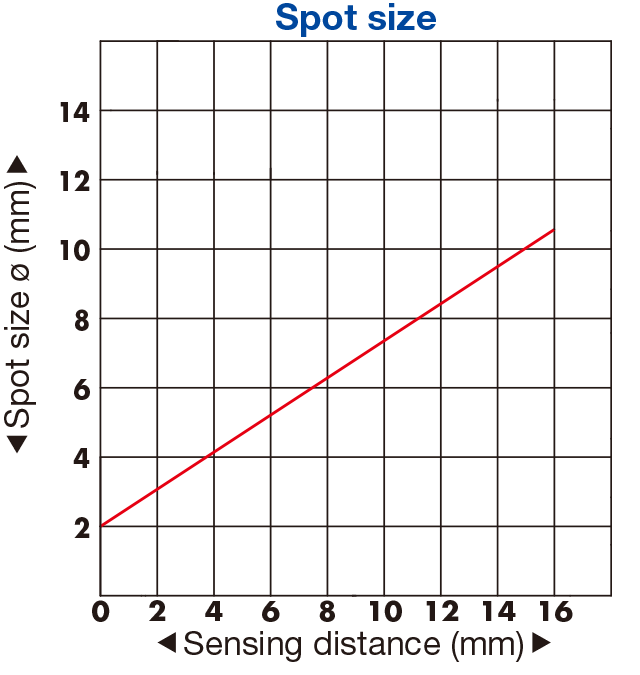

Spot size			Approx. ø140 mm At distance of 500 mm	Approx. ø60 mm At distance of 100 mm	Approx. ø20 mm At distance of 30 mm	Approx. ø10 mm At distance of 15 m	Approx. ø10 mm At distance of 10 mm
Smallest detectable object			ø1.2 mm	-
Response time			0.5 ms or less
Hysteresis			-	15%		10%
Distance adjustment			None
Indicators			Output indicator (orange LED), stability indicator (green LED), power indicator (red LED) (only through-beam type emitter)
Control output			NPN/PNP type Open collector Max. 50 mA/24 VDC
Output mode			Select a model from between Light ON models and Dark ON models
Connection type			Cable type: Cable length: 2 m ø2.5 mm
Rating	Supply voltage		12 to 24 VDC ±10%, including 10% ripple (p-p)
Rating	Current consumption		Emitter: 14 mA or less Receiver: 16 mA or less	20 mA or less
Applicable regulations			EMC directive (2004/108/EC)
Applicable standards			EN 60947-5-2
Company standards			Noise resistance: Feilen Level 3 cleared
Environmental resistance	Ambient temperature/humidity		-25 to +55℃ (no freezing) / 35 to 85% RH (no condensation)
	Ambient illuminance		Sunlight: 10,000 lx Incandescent lamp: 3,000 lx
	Vibration resistance		10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
	Shock resistance		Approx. 50 G (500 m/s²); 3 times in each of the X, Y, and Z directions
	Degree of protection		IP67
Material			PC
Weight without cable			Emitter: Approx. 2 g Receiver: Approx. 3 g	Approx. 3 g
Included accessories			M2 screw, nut × 2 of each

*Using a 50 × 50 mm white sheet of paper.
•Specifications are subject to change without prior notice for product improvement purposes.
•M8 pig tail connector type is also available. Please inquire separately.
•When mounting sensors, always use the included screws.

Side ON type

Type			hrough-beam type	Diffuse-reflective type	Limited diffuse reflective type
Type			hrough-beam type	Diffuse-reflective type	Mid-range
Model	NPN	Light ON model	ET-S500NL	ED-S30NL	EL-S15NL
	NPN	Dark ON model	ET-S500ND	ED-S30ND	EL-S15ND
	PNP	Light ON model	ET-S500PL	ED-S30PL	EL-S15PL
	PNP	Dark ON model	ET-S500PD	ED-S30PD	EL-S15PD
Sensing distance			500 mm	30 mm*	2 to 15 mm*
Light source			Red LED

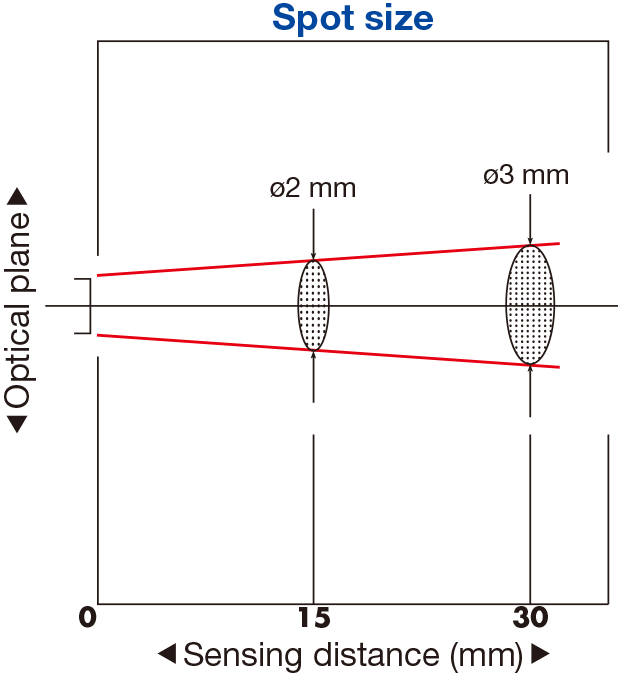

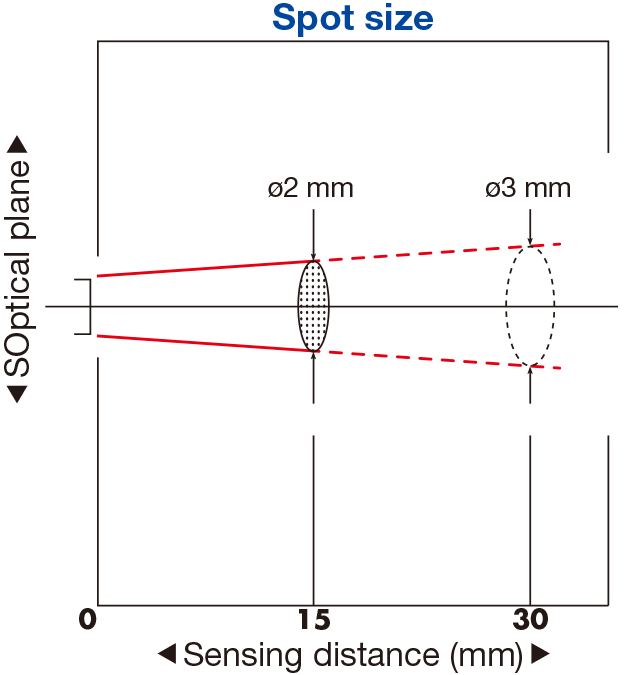

Spot size			Approx. ø60 mm At distance of 500 mm	Approx. ø3 mm At distance of 30 mm	Approx. ø2 mm At distance of 15 mm
Smallest detectable object			ø0.8 mm	-
Response time			0.25 ms or less	0.5 ms or less
Hysteresis			-	10%
Distance adjustment			None
Indicators			Output indicator (orange LED), stability indicator (green LED), power indicator (red LED) (only through-beam type emitter)
Control output			NPN/PNP type Open collector Max. 50 mA/24 VDC
Output mode			Select a model from between Light ON models and Dark ON models
Connection type			Cable type: Cable length: 2 m ø2.5 mm
Rating	Supply voltage		12 to 24 VDC ±10%, including 10% ripple (p-p)
Rating	Current consumption		Emitter: 14 mA or less Receiver: 16 mA or less	20 mA or less
Applicable regulations			EMC directive (2004/108/EC)
Applicable standards			EN 60947-5-2
Company standards			Noise resistance: Feilen Level 3 cleared
Environmenta resistance	Ambient temperature/humidity		-25 to +55℃ (no freezing) / 35 to 85% RH (no condensation)
	Ambient illuminance		Sunlight: 10,000 lx Incandescent lamp: 3,000 lx
	Vibration resistance		10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
	Shock resistance		Approx. 50 G (500 m/s²); 3 times in each of the X, Y, and Z directions
	Degree of protection		IP67
Material			PC
Weight without cable			Emitter: Approx. 2 g Receiver: Approx. 3 g	Approx. 3 g
Included accessories			M2 screw, nut × 2 of each
