Dimensions
Unit: mm
Flat ON type

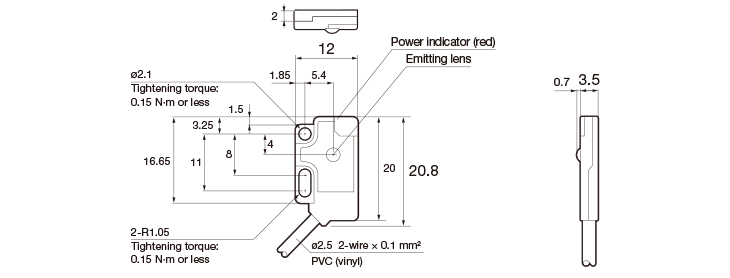

Through-beam type emitter

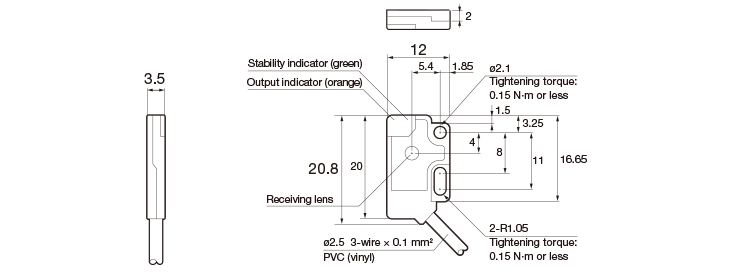

Through-beam type receiver

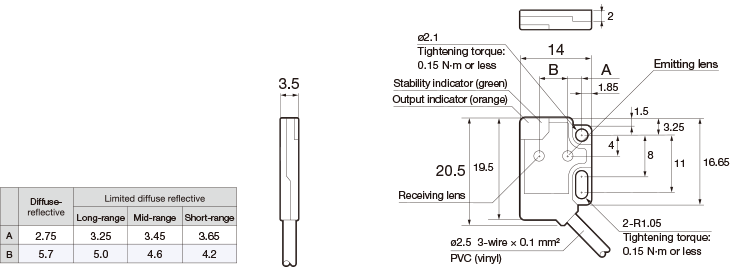

Diffuse-reflective type/limited diffuse reflective type
Side ON type

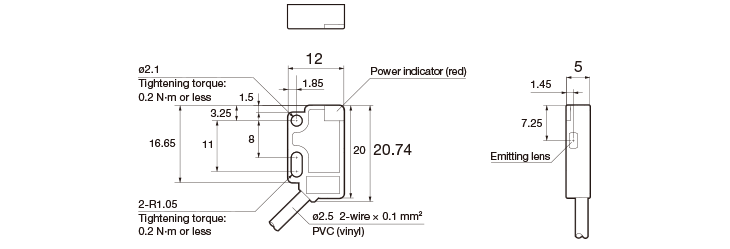

Through-beam type emitter

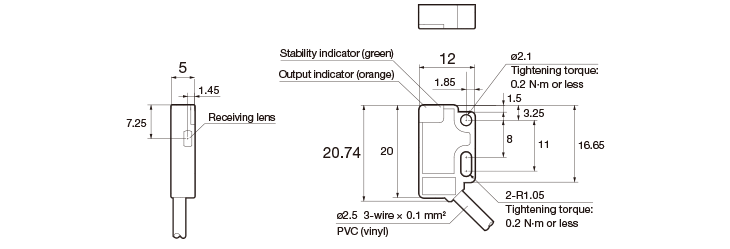

Through-beam type receiver

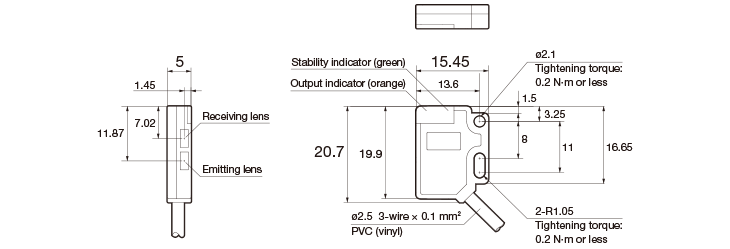

Diffuse-reflective type/limited diffuse reflective type

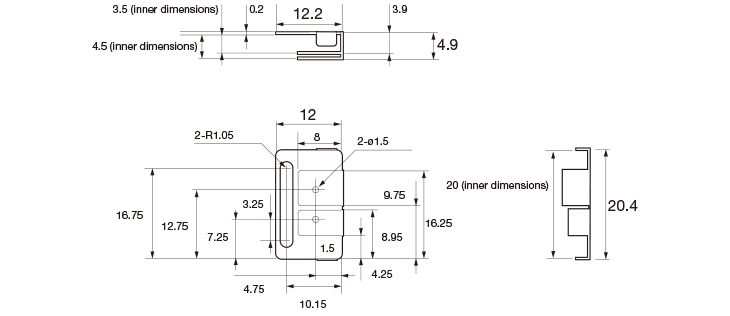

Slit mask (Flat ON through-beam type for ET-500☐☐)
BL-W2F-1.5
BL-W2F-1
