Dimensions

Sensor

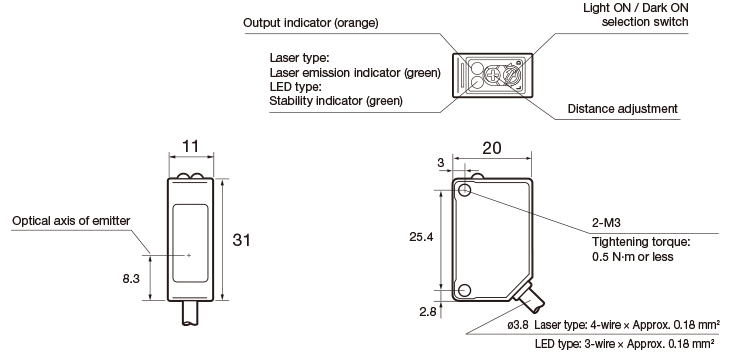

• Cable type

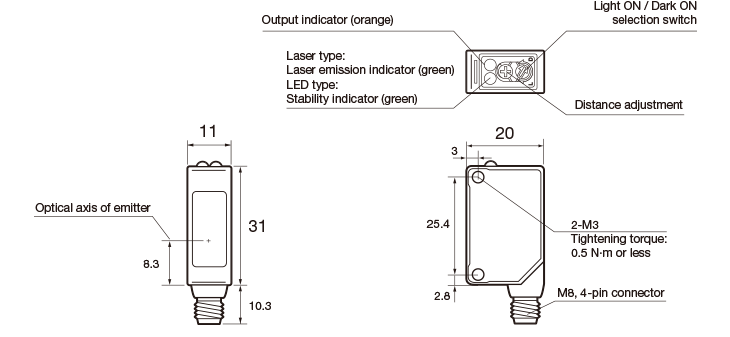

Connector type

Mounting bracket

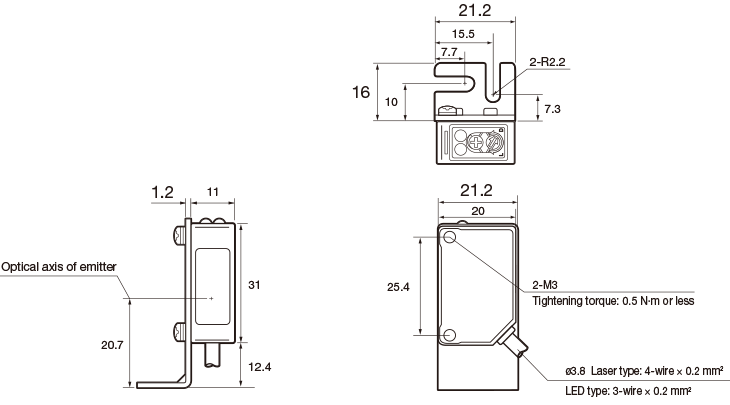

Cable type (when using BEF-W100-B)

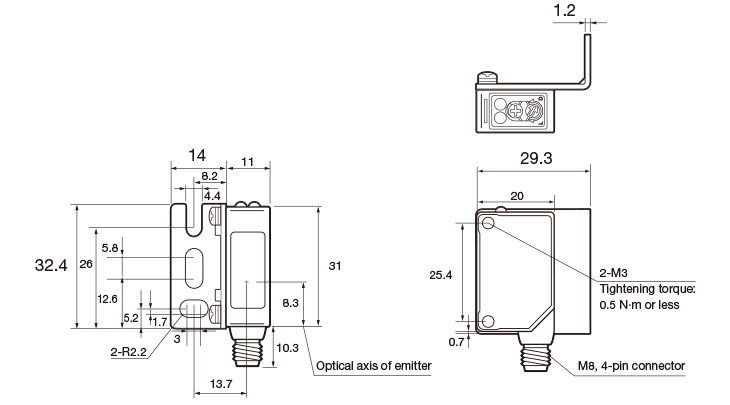

Connector type (when using BEF-W100-A)

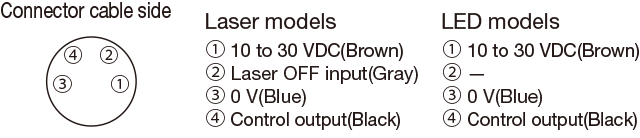

Connector cable (optional)

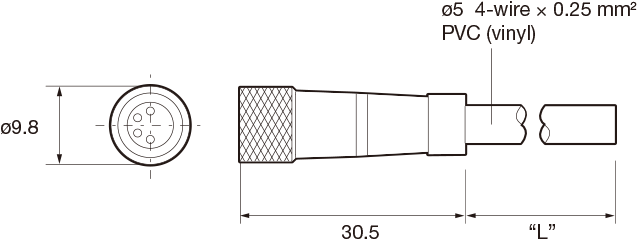

• JCN-S
  JCN-5S
  JCN-10S

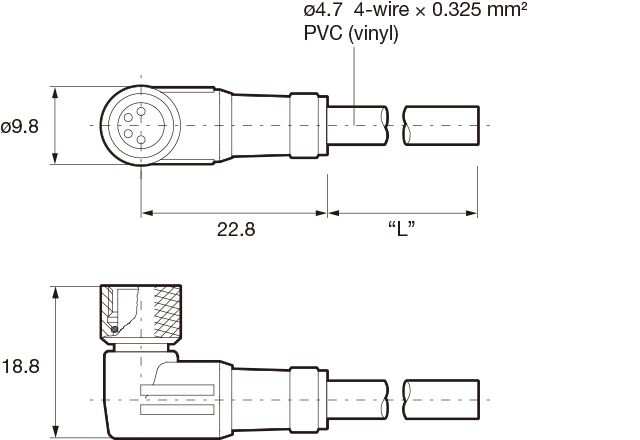

• JCN-L
  JCN-5L
  JCN-10L



Successor models

• M84CN-2S
  M84CN-5S
  M84CN-10S



• M84CN-2L
  M84CN-5L
  M84CN-10L



•

Laser light precautions

• This product emits a Class 1 (II) visible laser beam that is compliant with IEC/JIS, FDA laser safety standards.
  Warning and explanation labels are affixed to the sides of the sensor.



•
