Circuit Diagram

Laser type: BGS-ZL10☐/BGS-ZL30☐

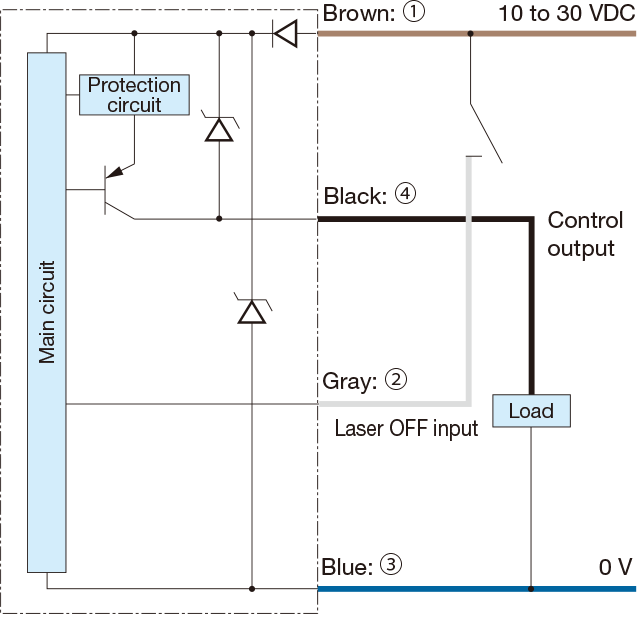

• PNP output type

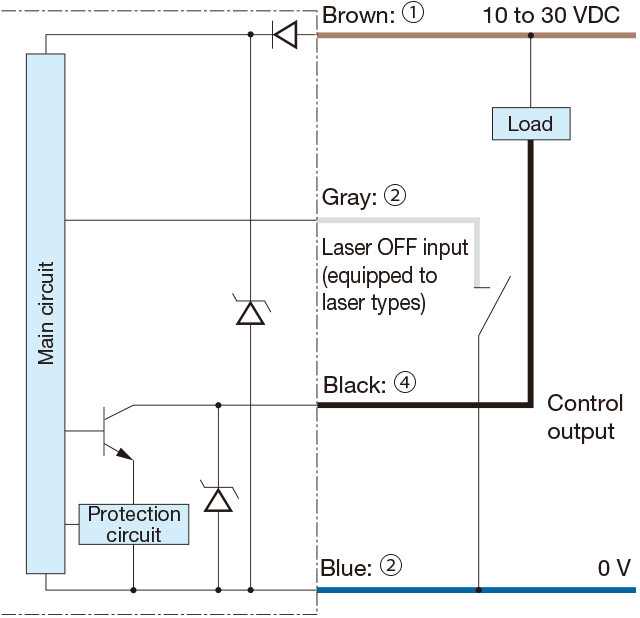

• NPN output type



LED type : BGS-Z10☐/BGS-Z15☐/BGS-Z30☐

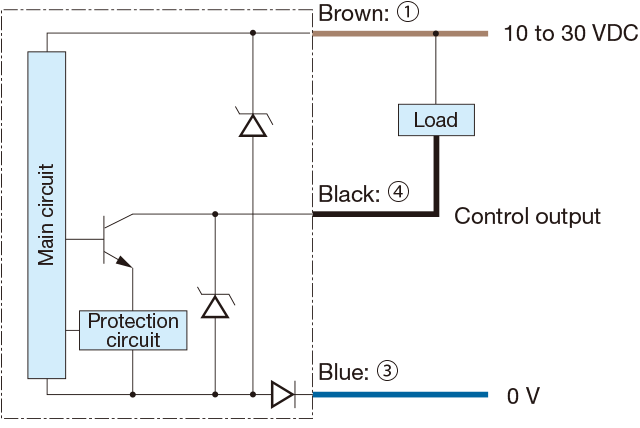

• NPN output type

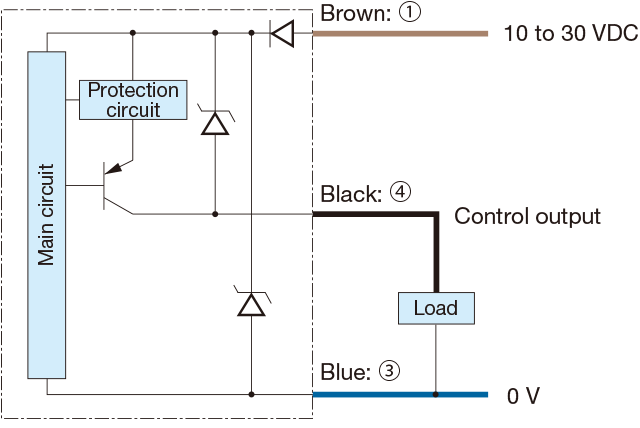

• PNP output type

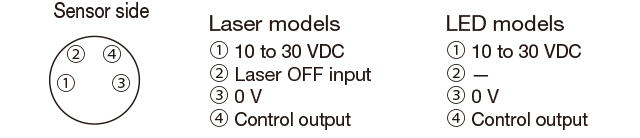

• Connector pin assignment



• Notes

  • Connect frame ground to the earth when the switching regulator is used for power supply.
  • Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  • Avoid using the transient state while the power is on (approx. 100 ms).

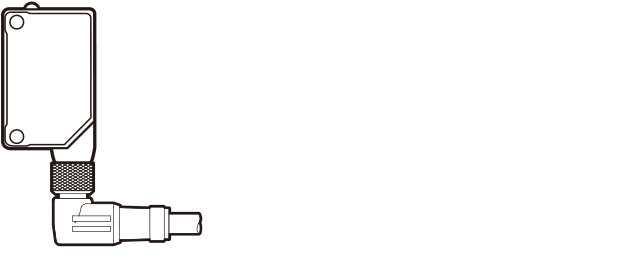

  • The connector direction is fixed as in the drawing to the right when you use L-shaped connector cable. Be aware that rotation is not possible.
