Discontinued Products
- This model has been discontinued.
For suitable alternatives, please feel free to contact us.
- Recommended Alternatives
Specifications

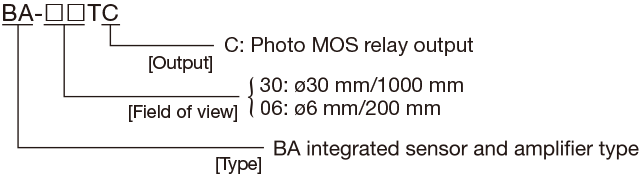

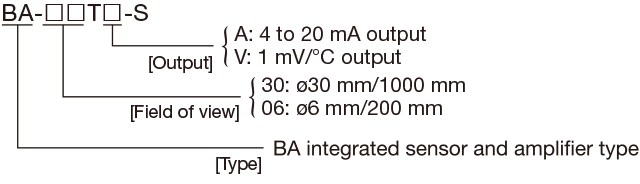

Type key
Technical Data
| Model | BA-30TA-S | BA-30TV-S | BA-06TA-S | BA-06TV-S | BA-30TC
|
BA-06TC
|
|
|---|---|---|---|---|---|---|---|
| Measurement range | 0 to 500°C (32 to 932°F) (Display: −20 to 520°C (−4 to 968°F)) | ||||||
| Field of view | ø30 mm/1000 mm (Refer to field of view) |
ø6 mm/200 mm (Refer to field of view) |
ø30 mm/1000 mm (Refer to field of view) |
ø6 mm/200 mm (Refer to field of view) |
|||
| Optics | Silicone lens | ||||||
| Sensing element/ spectral response |
Thermopile/8 to 14 μm | ||||||
| Response time | 0.1 sec./90% response | 0.5 sec./90% response | |||||
| Accuracy*1 (ε≒1.0) |
(±1% or ±2°C (3.6°F) of reading value, whichever is greater) ±1 digit | ||||||
| Repeatability | ±1°C (1.8°F) | ||||||
| Emissivity (ε) adjustment |
0.10 to 1.20 (0.01 per step) | ||||||
| Digital display resolution |
1°C (1°F) (digital display on back of main unit) | ||||||
| Analog output | 4 to 20 mA, Scalable |
1 mV/°C | 4 to 20 mA, Scalable |
1 mV/°C | - | ||
| Analog output resolution | 0.2°C (0.36°F) | - | |||||
| Relay output | - | Photo MOS, 350 mA/100 VDC or less (1 output) |
|||||
| Output update time | - | 50 ms | |||||
| Functions | Sighting function: Coaxial laser marker Class 2 ( IEC / JIS / FDA ※2 ) Simple emissivity adjustment: TEACH function Response time selection (DELAY) function: 1 (0.5 sec.) to 200 (approx. 10 sec.) |
||||||
| Supply voltage/ current consumption |
12 to 24 VDC ±10%/150 mA or less (at max. load) | ||||||
| Ambient temperature | 0 to 50°C (32 to 122°F) | ||||||
| Ambient humidity | 35 to 85% RH (no condensation) | ||||||
| Storage temperature | −10 to 60°C (14 to 140°F) | ||||||
| Vibration resistance | 3G (20 to 50 Hz, according to IEC 60068-2-6) | ||||||
| Degree of protection | IP65 | ||||||
| Applicable regulations |
EMC | EMC Directive (2014 / 30 / EU) | |||||
| Environment | RoHS Directive (2011 / 65 / EU), China RoHS (MIIT Order No.32) | ||||||
| Safety | FDA Regulations (21 CFR 1040.10 and 1040.11) (except for deviations pursuant to Laser Notice No.50) |
||||||
| Applicable standards | EN 60825-1 | ||||||
| Weight | Approx. 350 g (including cable) | Approx. 360 g (including cable) | |||||
| Material | Ring/housing: Glass-filled PBT, Rear: PSF, Cover: PC | ||||||
| Standard included accessories |
Main unit mounting bracket ×1, mounting screw (M4) ×2 | ||||||
*1 The measurement accuracy in the specification is limited to the calibration conditions of our factory.
*2 This product is classified as Class 2 by IEC 60825-1: 2007 according to Laser Notice No.50, FDA Guidance Document.
• Note that specifications are subject to change without prior notice for product improvement purposes.

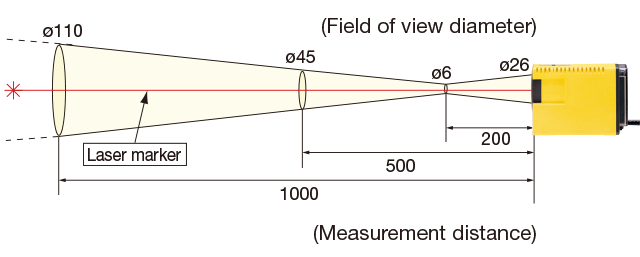

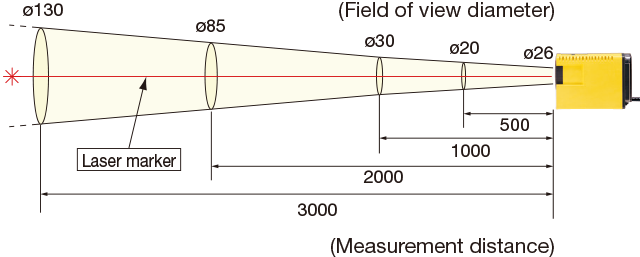

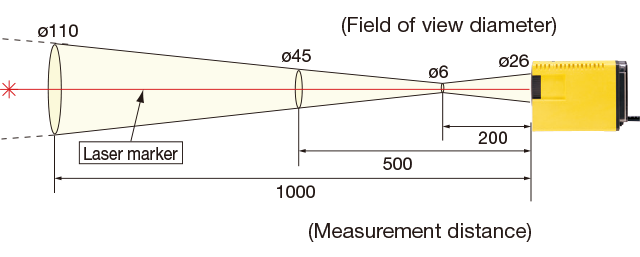

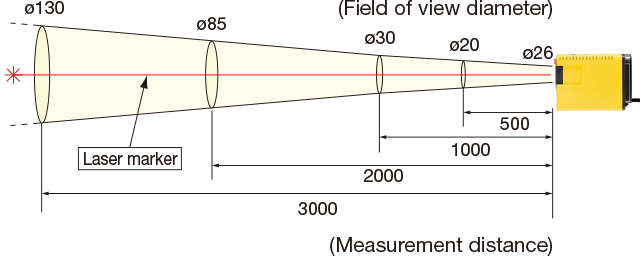

Field of view
The laser marker points directly to the center of the eld of view. The elds of view stated above are measurement diameters with an optical response of 90%. The size of the measuremen

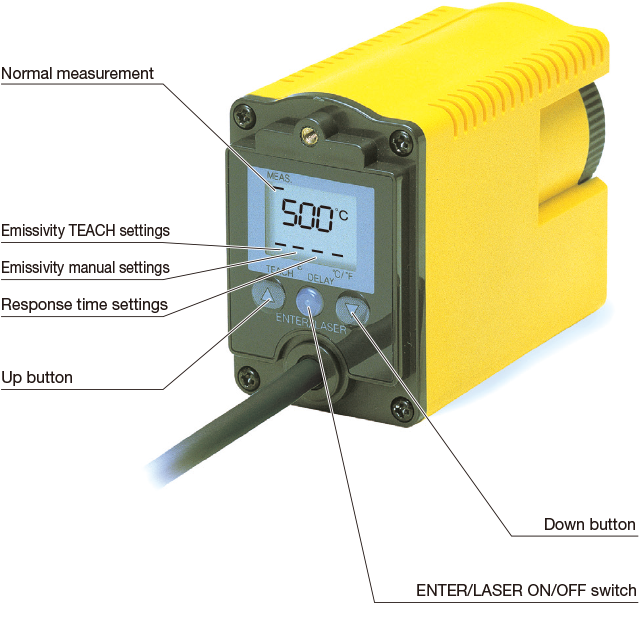

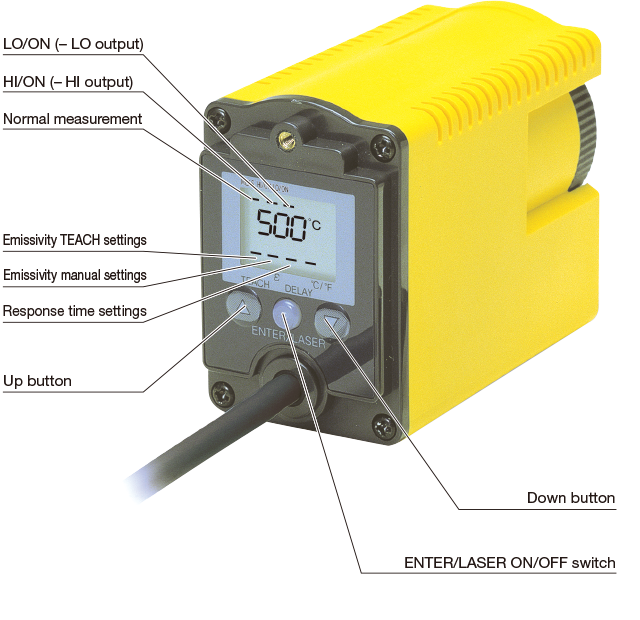

Operating panel
Precautions for installation models of thermometers
Measurement tips
• For measurement of specular surface, such as a polished metal, consider to attach the optional black tape, HB-250, or paint the surface in a matte color.
• Measurement through glass may be difficult.
Laser marker [For applicable models only]
• The markers are equipped with Class 2 lasers that conform to IEC 60825-1.
• Take necessary measurements for use of the products, according to the laser warning labels.
Product calibration
• Annual calibration of non-contact thermometers is recommended. Contact OPTEX FA sales for details.
