Specifications
Technical Data
| Type | PWM type with sensing support | High-brightness type for strobe lighting | Constant current type | |||||
|---|---|---|---|---|---|---|---|---|
| Model | OPS- S20W (-U) |
OPS- S20R (-U) |
OPS- S20B (-U) |
OPS- ST20W |
OPS- ST20B |
OPS- C20W (-U) |
OPS- C20R (-U) |
OPS- C20B (-U) |
| Illumination color | White | Red | Blue | White | Blue | White | Red | Blue |
| Color temperature / Peak wavelength |
6,300 K | 640 nm | 470 nm | 6,300 K | 470 nm | 6,300 K | 640 nm | 470 nm |
| Input | 12 V | 18 V*1 | Constant current control: 700 mA max.*2 | |||||
| Recommended PWM frequency | 50 kHz to 150 kHz | - | ||||||
| Self-oscillation frequency when DC voltage is applied |
50 kHz to 60 kHz | - | ||||||
| Light-emitting surface size | o7 mm | |||||||
| Ambient temperature/humidity | 0 to 40°C / 35 to 85% RH (no condensation) | |||||||
| Storage temperature/humidity | -20 to 70°C / 35 to 95% RH (no condensation) | |||||||
| Vibration resistance | 10 to 55 Hz; amplitude 1.5 mm; 8 hours in each of the X, Y, and Z directions | |||||||
| Shock resistance | 10 G, 3 times in each of the X, Y, and Z directions | |||||||
| Classification (IEC62471: 2006) |
OPS-S20W / OPS-S20B (-U) / OPS-ST20W / OPS-ST20B / OPS-C20W / OPS-C20B (-U): Risk Group 2 (Moderate-Risk) | |||||||
| OPS-S20W-U / OPS-S20R (-U) / OPS-C20W-U / OPS-C20R (-U): Risk Group 1 (Low-Risk) | ||||||||
| Applicable regulations/standards |
EMC (2014/30/EU), RoHS (2011/65/EU, MIIT Order No.32) / EN 61326-1:2013 | |||||||
| Protection rating | IP40 (IEC 60529: 1989 / A1: 1999 + A2: 2013) | |||||||
| Degradation of LED | 40,000 h | 30,000 h | 40,000 h | 30,000 h | 40,000 h | |||
| For brightness to drop 30% (Dimming value setting = 100%, 25°C) *Typical values | ||||||||
| Protection circuit | Automatic shutoff if internal temperature reaches 100°C | None | ||||||
| Material | Housing: ADC12, Lens: PC (UV-resistant) | |||||||
| Options | Condensing lens | |||||||
- *1Applicable power supply: OPPF Series (excluding 500 kHz, luminescence width setting: 1 ms or less)
- *2Applicable power supply: OPPCW Series

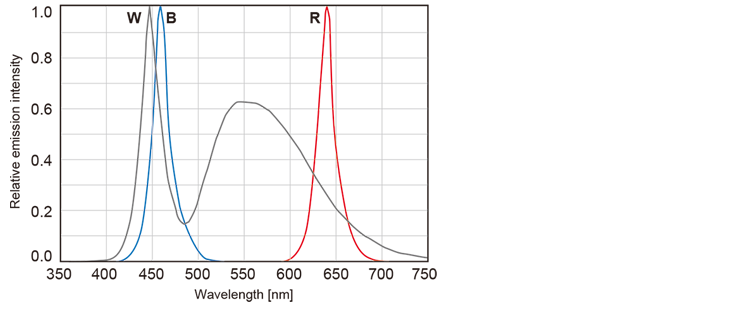

Emission spectrum diagram
