Accessories

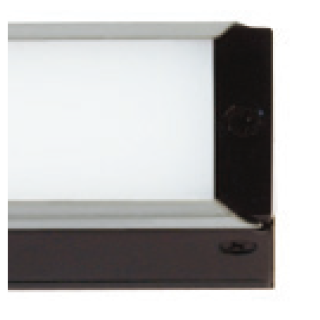

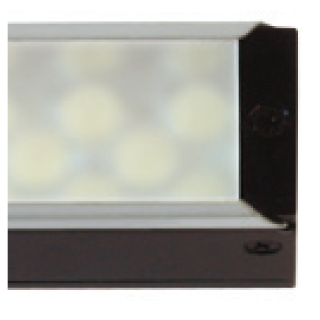

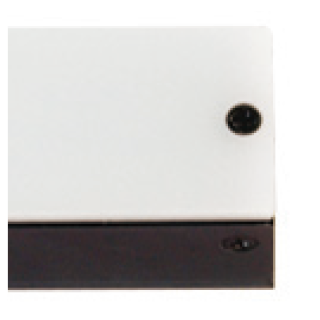

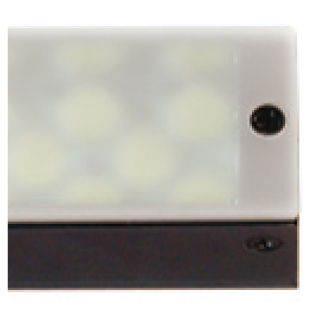

Diffusion plate(transmittance:60%)[for backlight]

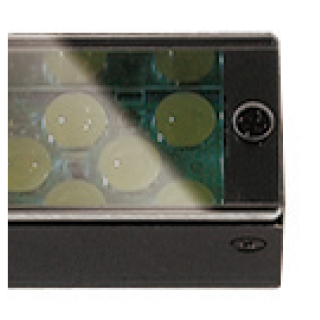

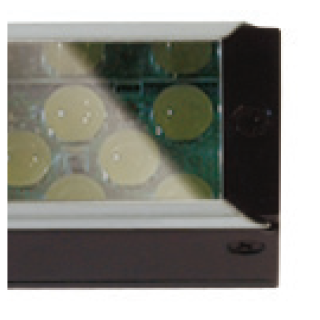

The direction of polarization is parallel to the notches on the corners.

When using multiple lighting units, refer to the figure to the right and mount the polarizing plates so that the notches are all parallel.

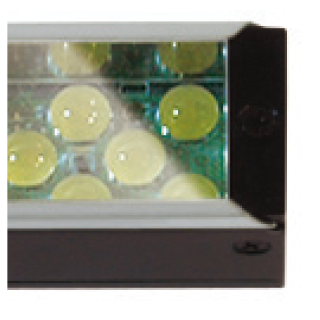

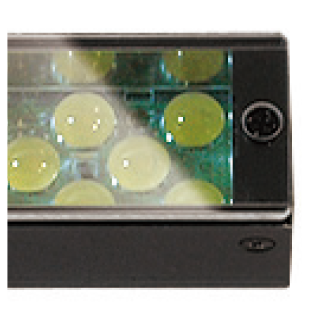

Attach the included transparent covers so that they overlap on the polarizing plates during use.
Reference diagram for mounting polarizing plates

Mode	Applicable Lighting	Shape	Weight[g]	Remarks
BKT-OPB-L	All OPB Series models	L-shaped	20	Lighting angles can also be adjusted between 0 and 90°. Mounting bolts are included.
BKT-OPB-C50	OPB-5015	C-shaped	20
BKT-OPB-C100	OPB-10015	C-shaped	30
BKT-OPB-C150	OPB-15015	C-shaped	40
BKT-OPB-C200	OPB-20015	C-shaped	50
BKT-OPB-Q50	OPB-5015	Square	180	Can be used for mounting up to four lighting devices. Please prepare the same number of BKT-OPB-L brackets as the lighting devices to mount.
BKT-OPB-Q100	OPB-10015	Square	220
