Accessories
Control cables
| Model | Application | Weight [g] |
|---|---|---|
| OP-ECBX9-3 | External lighting control cable (9 open-ends with ferrule/wire markers) | 190 |
| OP-ECBX32-3 | External lighting control cable (32-core flat cable with connectors) | 150 |
Switching power supply
A 24 VDC output switching power supply is available.
Refer to the following and then contact sales staff for details.
| Power supply specifications | Connected lighting capacity of OPPX | ||||
|---|---|---|---|---|---|
| Output power | Output current | Rated output voltage | Rated input voltage | Feedback setting | Total power consumption of connected lighting |
| 240 W | 10 A | 24 VDC ±1% | 100 to 240 VAC | No | 172 W ≤ |
| Yes | 120 W ≤ | ||||
| 480 W | 20 A | 24 VDC ±1% | 100 to 240 VAC | No | 172 W ≤ |
| Yes | 120 W ≤ | ||||
- The total power consumption of connected lighting is for PWM intensity control.
-

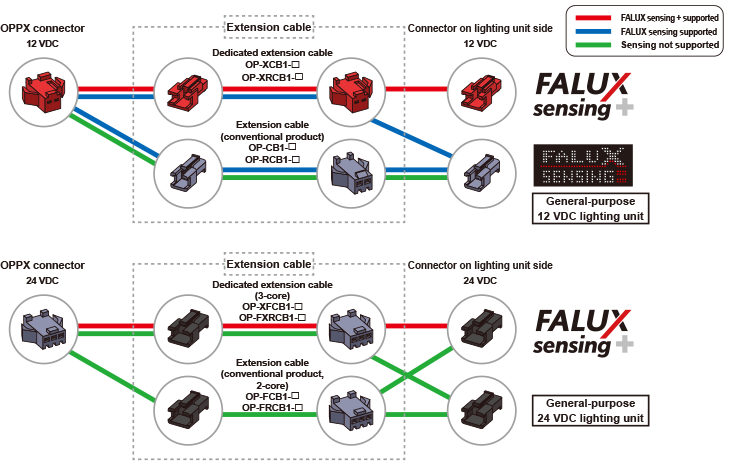

OPPX lighting extension cable combinations
