Dimensions

Sensor

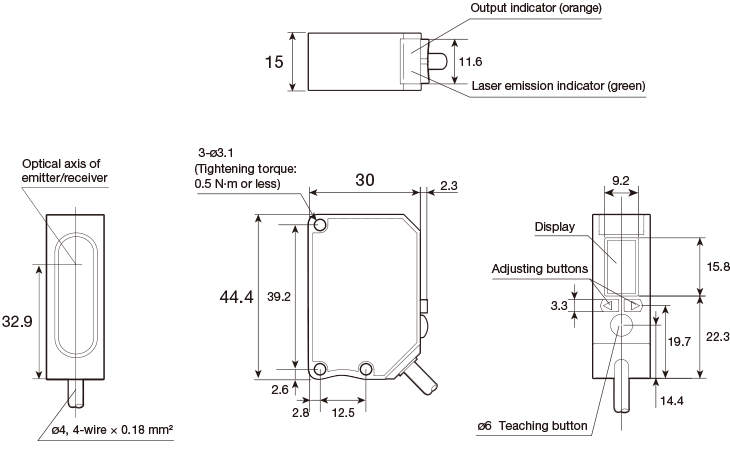

Cable type

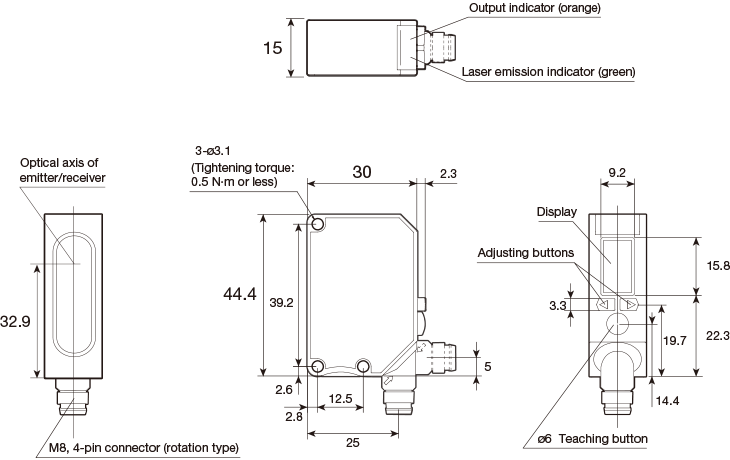

Connector type

Connector cable (optional)

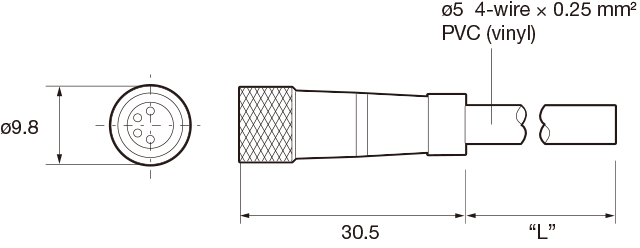

• JCN-S, JCN-5S, JCN-10S

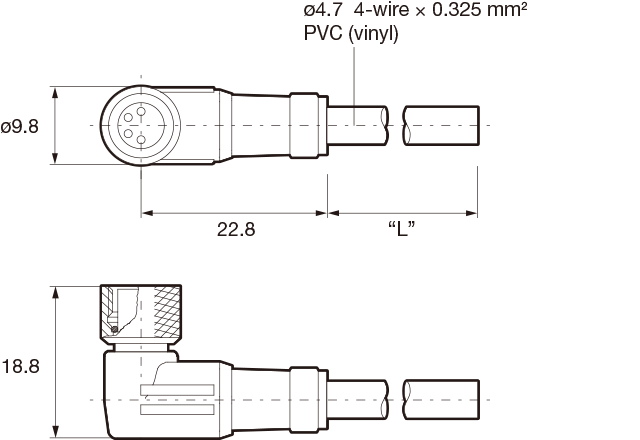

• JCN-L, JCN-5L,JCN-10L



Successor models

• M84CN-2S, M84CN-5S, M84CN-10S



• M84CN-2L, M84CN-5L, M84CN-10L



Mounting bracket

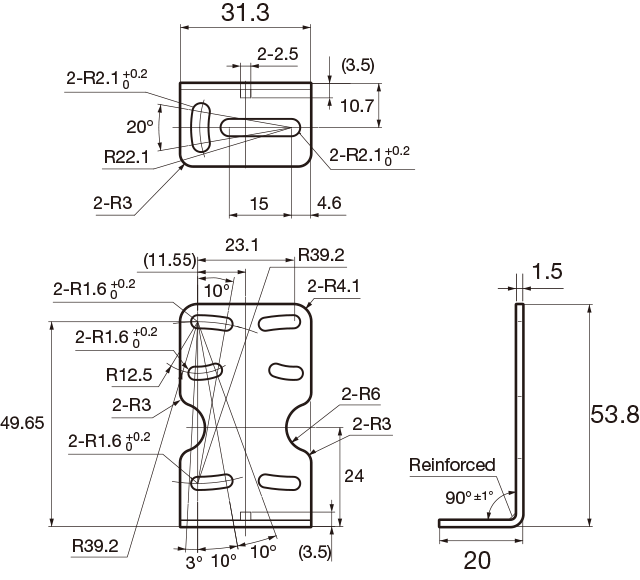

• BEF-WK-190 (included)



Reflector

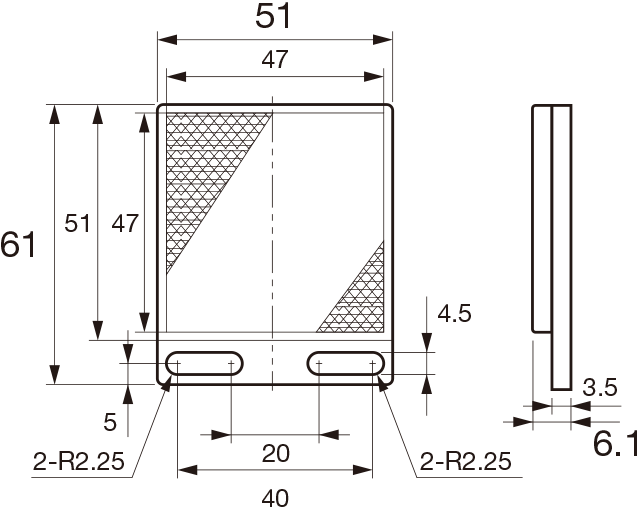

• P250F (included)

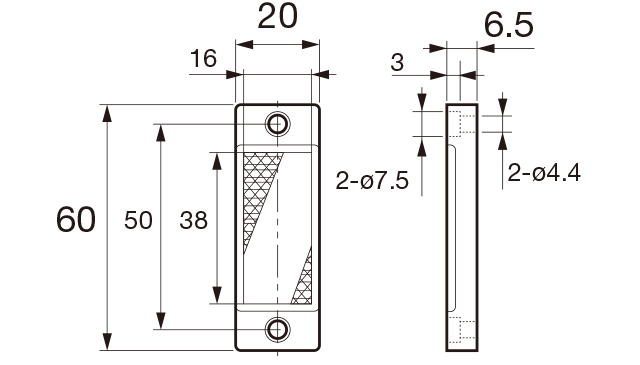

• PL20F (optional)

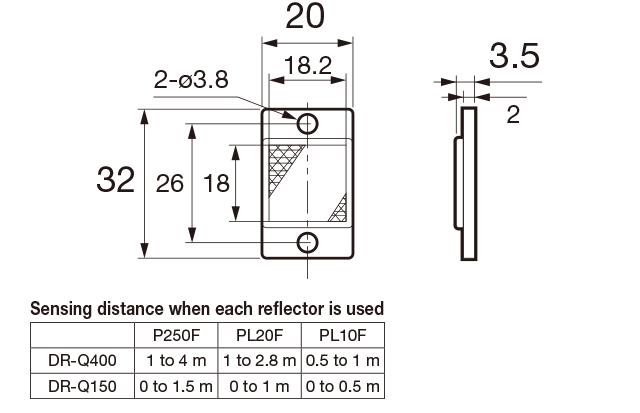

• PL10F (optional)



•

Notes for sensor usage

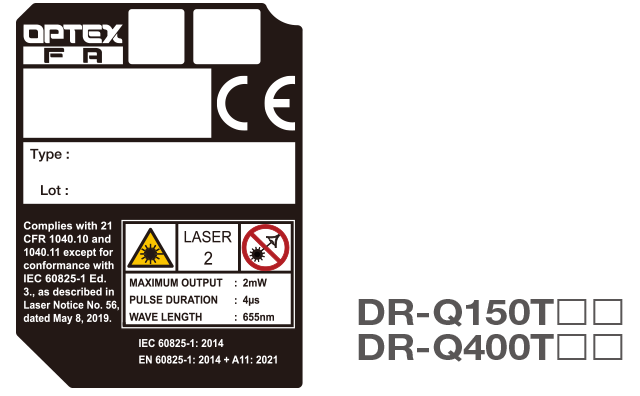

• This product emits a Class 2 (II) visible laser beam that is compliant with JIS C 6802/IEC 60825- 1/FDA laser safety standards.
  Warning and explanation labels are affixed to the sides of the sensor.



•
