Circuit Diagram
CDA-M/CDA-S
-
NPN setting
-
PNP setting
CDA-DM2
-

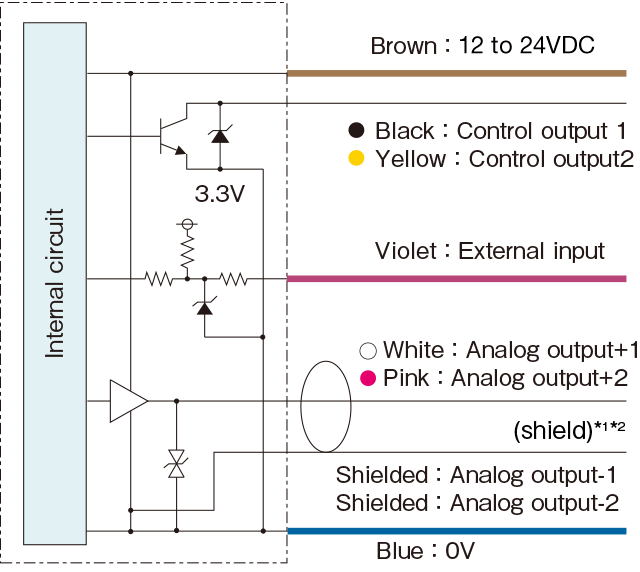

NPN setting
-

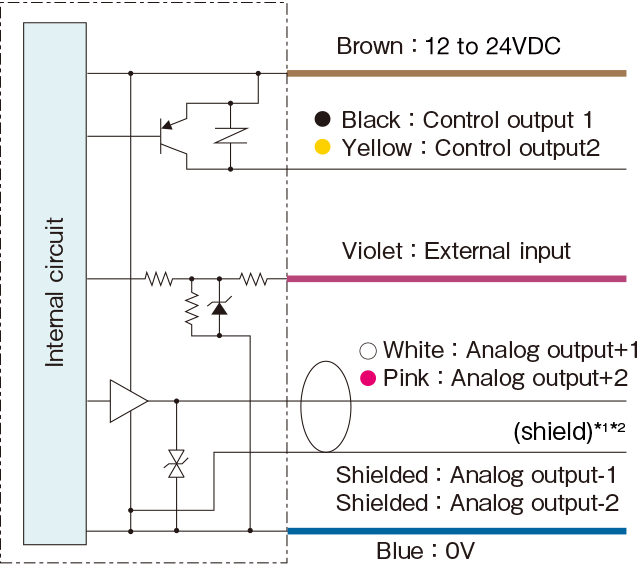

PNP setting
-
*1. Use shielded cables for analog output (+) and analog output (-), and wire as a pair up to the analog input device.
*2. If there is a potential difference between the analog output (-) and the GND of the external device, connect the analog output (-) to the GND of the external device as shown below.
