Discontinued Products
- Discontinued Models
Accessories

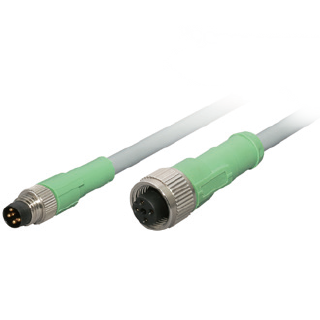

Displacement sensor/amplifier connection cable
-
DSL-1204-G02M
Cable length: 2 mBending resistant cable
Minimum bending radius
R18 mm (when fixed in place)
R34 mm (when movable)Connector cable for connecting a displacement sensor CDX Series or CD22 Series and amplifier unit CDA Series.
*Not required for TD1 Series.

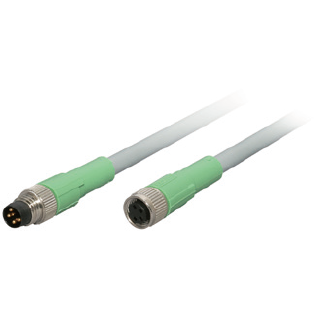

Displacement sensor-to-amplifier extension cable
-
DSL-0804-G02M
Cable length: 2 mDSL-0804-G05M
Cable length: 5 mBending resistant cable
Minimum bending radius
R18 mm (when fixed in place)
R34 mm (when movable)Displacement sensor/amplifier connection cable side: M8 4-pin socket
Amplifier unit side: M8 4-pin plugExtension cable for connection to DSL-1204-G02M.
*Ensure that the total cable length when connecting to a CDA Series
amplifier unit is within 10 m.
