Discontinued Products
- Some models in this product series have been discontinued.
- Discontinued Models
Models
Sensor head
| Type | Measurement range | Repeat accuracy |
Linearity | Light source (JIS laser class) |
Model | |
|---|---|---|---|---|---|---|
| Transparent object/ specular object measurement |
Narrow |
 |
0.37 μm | ±0.08% of F.S. | Red semiconductor laser (CLASS 1) |
CD5-L25A |
| Wide | CD5-LW25A | |||||
| Short range | Narrow |
 |
Diffuse mode 0.46 μm Specular mode 0.23 μm |
±0.08% of F.S. | Red semiconductor laser (CLASS 2) |
CD5-30A |
| Wide | CD5-W30A | |||||
| Middle range |
Narrow |
 |
Diffuse mode 1 μm Specular mode 0.5 μm |
Diffuse mode ±0.05% of F.S. Specular mode ±0.08% of F.S. |
Red semiconductor laser (CLASS 2) |
CD5-85 |
| Wide | CD5-W85 | |||||
| Semi-long range |
Narrow |
 |
2 μm | ±0.05% of F.S. | Red semiconductor laser (CLASS 2) |
CD5-150 |
| Wide | CD5-W150 | |||||
| Long range | Wide |
 |
5 μm | ±0.08% of F.S. | Red semiconductor laser (CLASS 2) |
CD5-W350 |
| Super long range |
Wide |
 |
10 μm | ±0.08% of F.S. | Red semiconductor laser (CLASS 2) |
CD5-W500 |
| Ultra long rang | Wide |
 |
30 μm | ±0.1% of F.S. |
Red semiconductor laser (CLASS 3R) |
CD5-W2000 |
Amplifier unit
| Type | Features | No. of connectable sensor heads |
Interface | Input/output | Model | |
|---|---|---|---|---|---|---|
| Amplifier unit for CD5 Series |
 |
crystal monitor + numeric keypad |
Max. 3 units | Analog output Various inputs RS-232C USB |
NPN | CD5A-N |
| PNP | CD5A-P | |||||

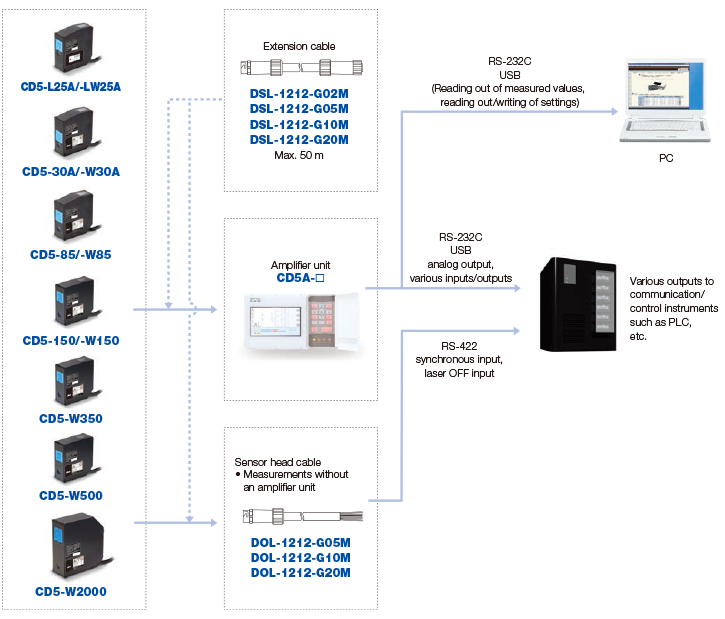

Example of system configuration
