Discontinued Products
- Some models in this product series have been discontinued.
- Discontinued Models
Circuit Diagram
I/O circuit diagram and connections
-

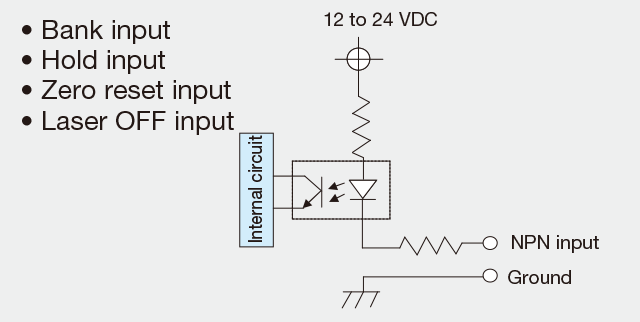

Input circuit diagram (NPN)
-

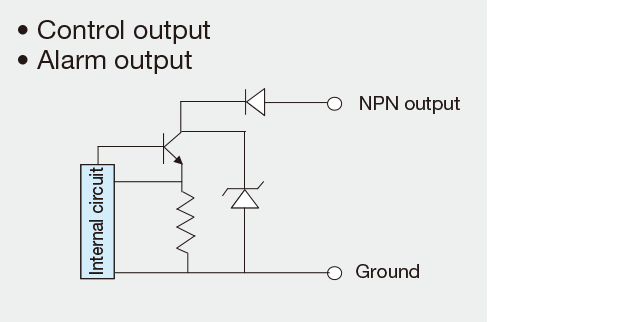

Output circuit diagram (NPN)
-

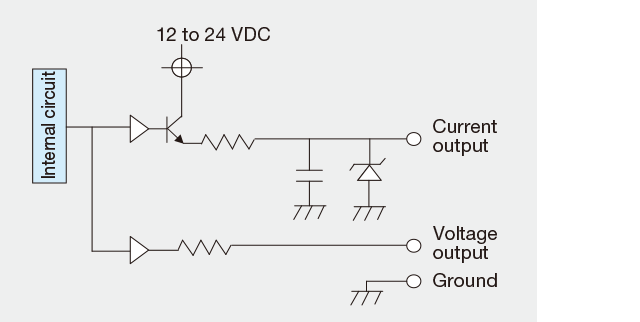

Analog output circuit diagram
-

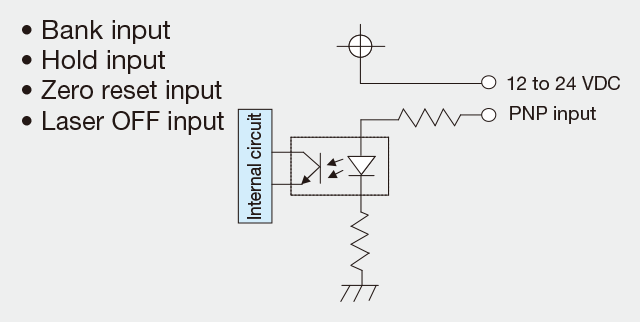

Input circuit diagram (PNP)
-

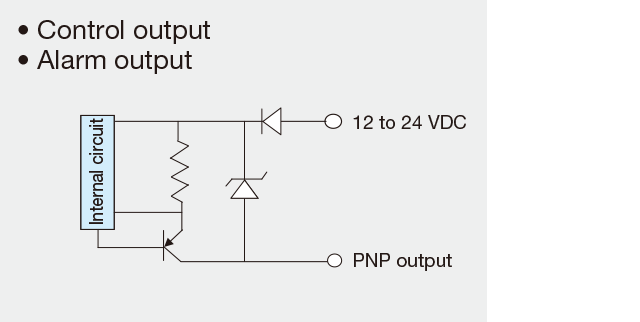

Output circuit diagram (PNP)
-

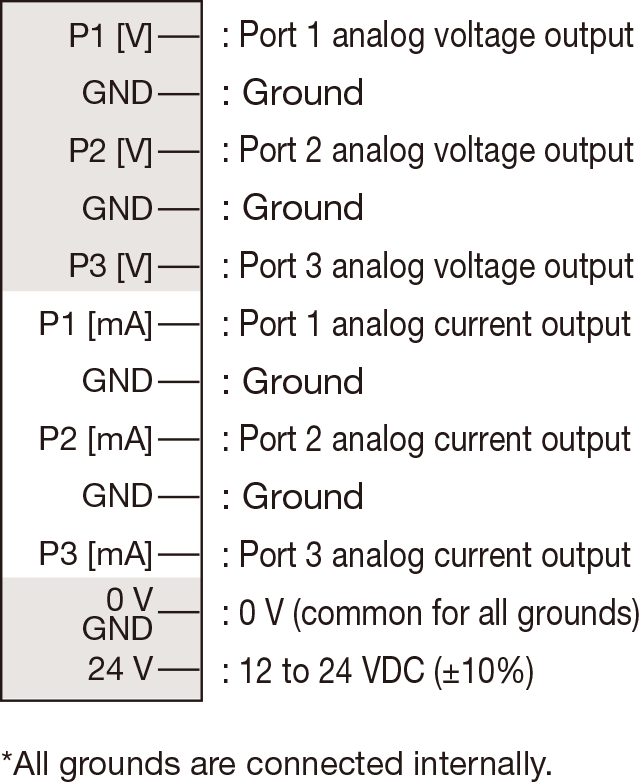

12-pin I/O terminal pin assignment
-
50-pin I/O terminal pin assignment
-
Bank select input
-
Sensor head cable wiring
(DOL-1212-G☐☐M)
