Dimensions

Sensor

Specular reflection type (side view)

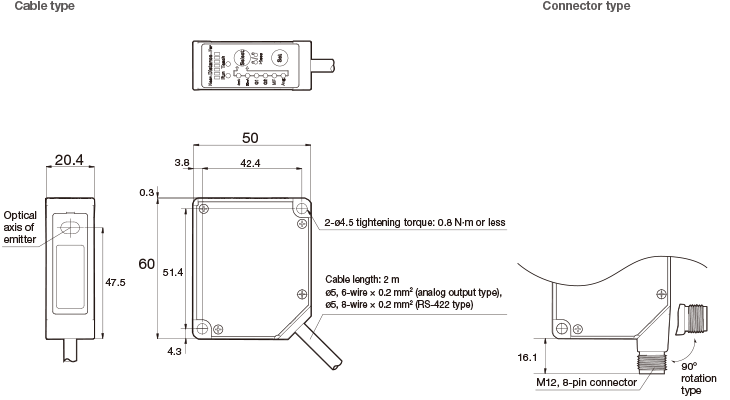

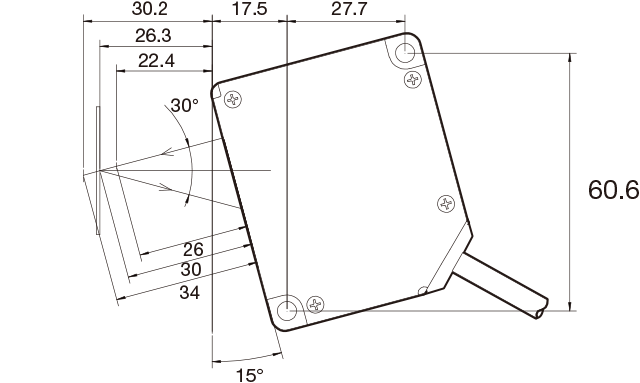

• CD33-L30☐-422

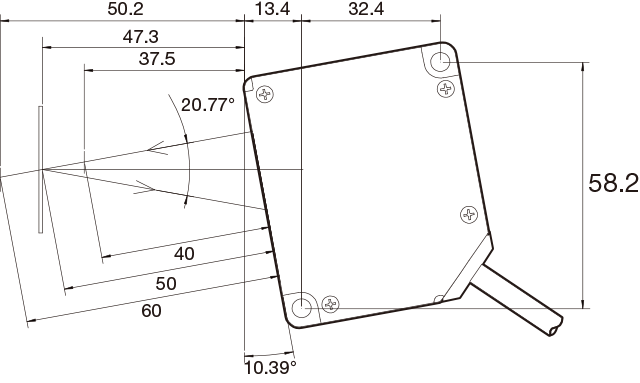

• CD33-L50☐-422

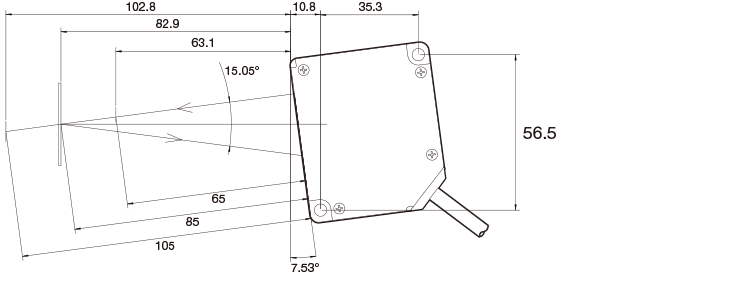

CD33-L85☐-422

Connector cable

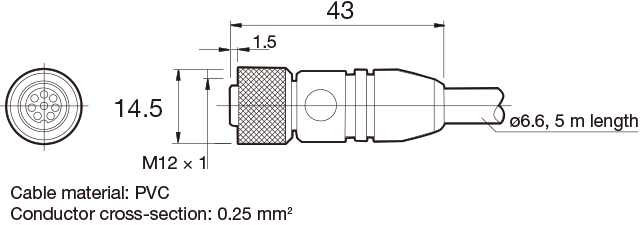

• DOL-1208-G05MF



Installation of sensor

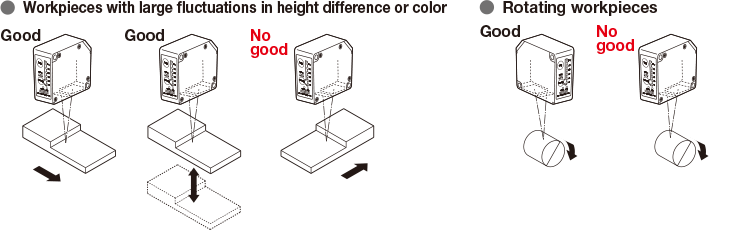

Mount the sensor head so that the detection surface (optical plane) is always parallel to the detection target. Adjust the target so that the spot aligns with the detection position, and ensure that the bar graph distance indicator lights up orange at the reference detection surface (center of change).

Bar graph distance indicator

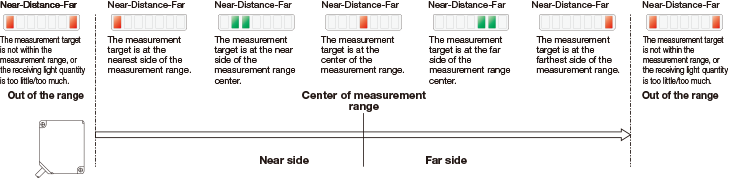

By combining individual lighting/multiple lighting and lighting/flashing patterns, distances will be displayed in 25 steps (the following example shows 5 steps).

Precautions for laser use

• This product emits a Class 1/Class 2 (II) visible laser beam that is compliant with JIS C 6802/IEC/FDA laser safety standards.
  Because English language warnings indicating the sensor as Class 1 or Class 2 (II), as well as explanation labels, are located on the side of the sensor, please replace these warnings/explanation labels with the Japanese language warnings/explanation labels included in the box when using in Japan.

•

• Type of laser used in this product



• If you install this product in a piece of machinery that will then be exported to the United States, it is necessary to follow laser standards as stipulated by the American Food and Drug Administration (FDA).
  This product has already been submitted to the CDRH (Center for Devices and Radiological Health). (Please inquire for details.)
