Circuit Diagram

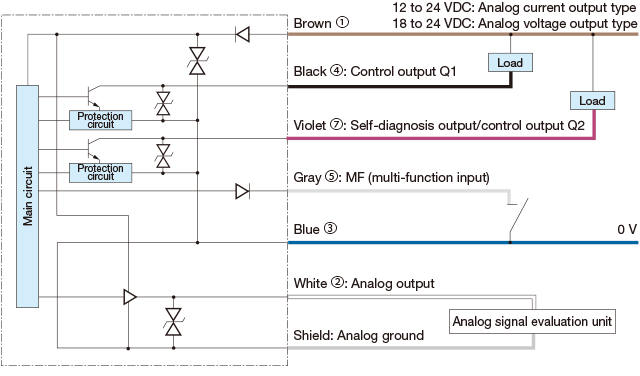

Analog output type (NPN output type)

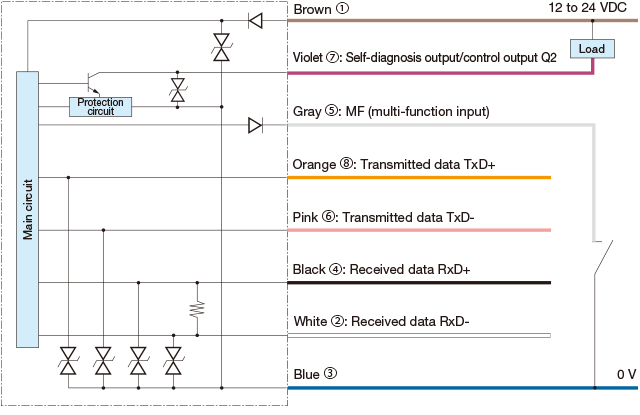

RS-422 type (NPN output type)

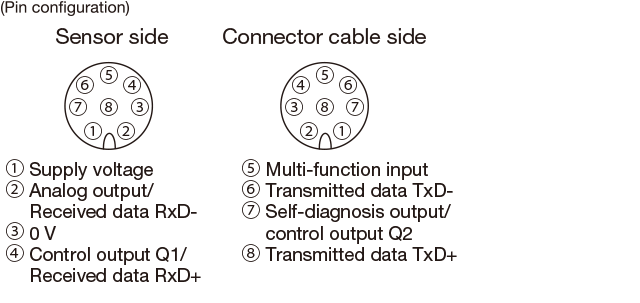

Connector type

Connecting

• 1 to 8 are connector pin No.
• Because the connector type is not equipped with an analog ground wire, please use by connecting the analog ground terminal of the analog input device and 0 V of the sensor power supply.

Notes

• When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
• Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
• Avoid using the transient state while the power is on (approx. 1.5 s).
