Dimensions
Unit: mm

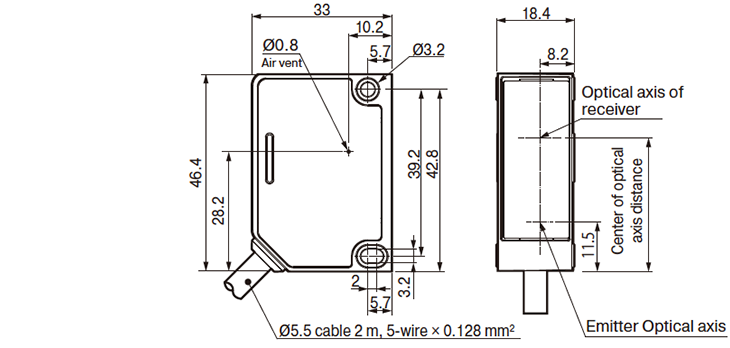

Cable types
Center of optical axis distance per model
(Unit : mm)| Model | CD2S-30 CD2S-30M12 |
CD2S-50 CD2S-50M12 |
CD2S-110 CD2S-110M12 |
| Distance to optical axis of receiver | 27.3 | 29 | 30.3 |

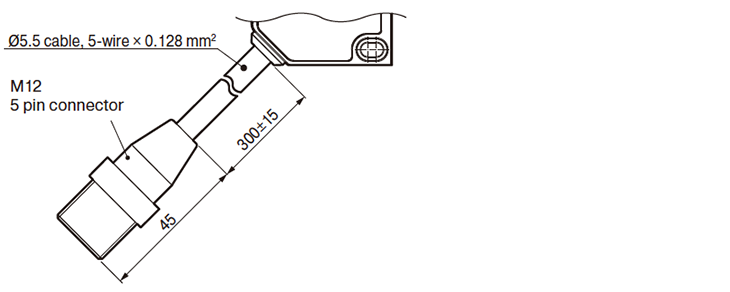

Pigtail types
Connector cables
-

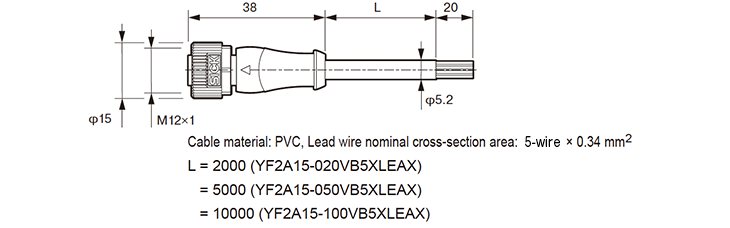

Standard cables
YF2A15-020VB5XLEAX
YF2A15-050VB5XLEAX
YF2A15-100VB5XLEAXMinimum bending radius:
26 mm (when fixed in place)
-

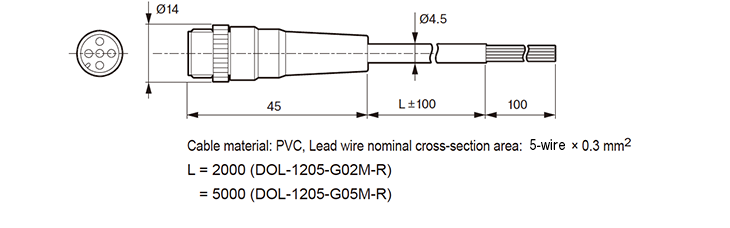

Bend-resistant cables
DOL-1205-G02M-R
DOL-1205-G05M-RMinimum bending radius:
9 mm (when fixed in place)
27 mm (when movable)
