Specifications

Technical Data

Analog output type

Model Analog
Current type		 Cable type CD22-15A CD22-35A CD22-100A2
Pig tail type CD22-15AM12 CD22-35AM12 CD22-100AM122
Analog
Voltage type		 Cable type CD22-15V CD22-35V CD22-100V2
Pig tail type CD22-15VM12 CD22-35VM12 CD22-100VM122
Center of measurement range 15 mm 35 mm 100 mm
Measurement range ±5 mm ±15 mm ±50 mm
F.S. (full scale) 10 mm 30 mm 100 mm
Light
source		 Medium/wavelength Red semiconductor laser, wavelength: 655 nm
Max. output 390 μW 1 mW
Laser
class		 IEC/JIS Class 1 Class 2*1
FDA Class I*2 Class Ⅱ*2
Spot size*3 Approx. 0.5 × 0.7 mm Approx. 0.45 × 0.8 mm Approx. 0.6 × 0.7 mm
Linearity ±0.1% F.S.
Repeat accuracy*4 1 μm 6 μm 20 μm
Sampling period 500 μs/1000 μs/2000 μs/4000 μs/AUTO
Temperature drift ±0.02%/℃ F.S. ±0.05%/℃ F.S.
Indicators Laser emission indicator (green)/zero reset indicator (red)/
output indicator (orange)/mode indicator (red)
External input Laser OFF, teaching, sample & hold, one-shot, zero reset (selectable)
Analog
output		 Current type 4 to 20 mA, Load impedance: 300 Ω or less
Voltage type 0 to 10V, output impedance: 100 Ω
Control output NPN/PNP open collector (selectable by setting),
Max. 100 mA / 30 VDC, residual voltage 1.8 V
Supply voltage 12 to 24 VDC ±10%*5
Current consumption 70 mA or less (at 24 VDC)
Connection type Cable type: Cable length: 2 m, ø4.5
Pig tail type: Cable with M12, 5-pin connector, 300 mm length
Protection circuit Reverse connection protection, overcurrent protection
Environmental
resistance		 Degree of protection IP67 (including joint of pig tail type)
Ambient temperature/humidity -10 to +50℃ / 35 to 85% RH (no freezing or condensation)
Ambient illuminance Incandescent lamp 3,000 lx or less
Vibration resistance 10 to 55 Hz; double amplitude 1.5 mm;
2 hours in each of the X, Y, and Z directions
Shock resistance Approx. 50 G (500 m/s2),
3 times in each of the X, Y, and Z directions
Applicable regulations EMC directive (2004/108/EC) /
FDA regulations (21 CFR 1040.10 and 1040.11)
(except for deviations pursuant to Laser Notice No.56)
Applicable standards EN 60947-5-7
Warm-up time Approx. 5 minutes
Material Housing: Aluminum die-cast Front cover: PPSU
Display: PET Cable: PVC
Weight Cable type: Approx. 90 g Pig tail type: Approx. 60 g

<Measurement conditions> The measurement conditions are as follows unless otherwise designated: Ambient temperature: 23℃ (normal temperature), Supply voltage: 24 VDC, Sampling period: 500 μs, Average number of times: 64, Center of measurement range, Measurement target: white ceramic.
*1 A Class 1 type can also be made available (made-to-order product).
*2 In accordance with the FDA provisions of Laser Notice No. 56, the laser is classified as Class 1 or Class 2 per the IEC 60825-1:2014 standard.
*3 Defined with center strength 1/e2 (13.5%) at the center of measurement range. There may be leak light other than the specified spot size. The sensor may be affected when there is a highly reflective object close to the detection area.
*4 With an average of 512 times
*5 In the case of the analog voltage output type, use a supply voltage of 12.0 VDC Minimum to obtain the proper output.

RS-485 communication type

Model CD22-15-485M12 CD22-35-485M12 CD22-100-485M122
Center of measurement range 15 mm 35 mm 100 mm
Measurement range ±5 mm ±15 mm ±50 mm
F.S. (full scale) 10 mm 30 mm 100 mm
Light
source		 Medium/wavelength Red semiconductor laser, wavelength: 655 nm
Max. output 390 μW 1 mW
Laser
class		 IEC/JIS Class 1 Class 2*1
FDA Class Class I*2 Class Ⅱ*2
Spot size Approx. 0.5 × 0.7 mm Approx. 0.45 × 0.8 mm Approx. 0.6 × 0.7 mm
Linearity ±0.1% F.S.
Repeat accuracy*4 1 μm 6 μm 20 μm
Sampling period 500 μs/1000 μs/2000 μs/4000 μs/AUTO
Temperature drift ±0.02%/℃ F.S. ±0.05%/℃ F.S.
Indicators Laser emission indicator (green)/zero reset indicator (red)/
output indicator (orange)/mode indicator (red)
Serial interface*5 RS-485 half duplex communication (9.6 k to 1,250 kbps)
Supply voltage 12 to 24 VDC ±10%
Current consumption 70 mA or less (at 24 VDC)
Connection type Pig tail type: Cable with M12, 5-pin connector, 300 mm length
Protection circuit Reverse connection protection
Environmental
resistance		 Degree of protection IP67 (including joint of connector)
Ambient temperature/humidity -10 to +50℃ / 35 to 85% RH (no freezing or condensation)
Ambient illuminance Incandescent lamp 3,000 lx or less
Vibration resistance 10 to 55 Hz; double amplitude 1.5 mm;
2 hours in each of the X, Y, and Z directions
Shock resistance Approx. 50 G (500 m/s2),
3 times in each of the X, Y, and Z directions
Applicable regulations EMC directive (2004/108/EC) /
FDA regulations (21 CFR 1040.10 and 1040.11)
(except for deviations pursuant to Laser Notice No.56)
Applicable standards EN 60947-5-2
Warm-up time Approx. 5 minutes
Material Housing: Aluminum die-cast Front cover: PPSU
Display: PET Cable: PVC
Weight Approx. 60 g

<Measurement conditions> The measurement conditions are as follows unless otherwise designated: Ambient temperature: 23℃ (normal temperature), Supply voltage: 24 VDC, Sampling period: 500 μs, Average number of times: 64, Center of measurement range, Measurement target: white ceramic.
*1 A Class 1 type can also be made available (made-to-order product).
*2 In accordance with the FDA provisions of Laser Notice No. 56, the laser is classified as Class 1 or Class 2 per the IEC 60825-1:2014 standard.
*3 Defined with center strength 1/e2 (13.5%) at the center of measurement range. There may be leak light other than the specified spot size. The sensor may be affected when there is a highly reflective object close to the detection area.

  • 15mm type Voltage Output

  • 15mm type Current Output

  • 35mm type Voltage Output

  • 35mm type Current Output

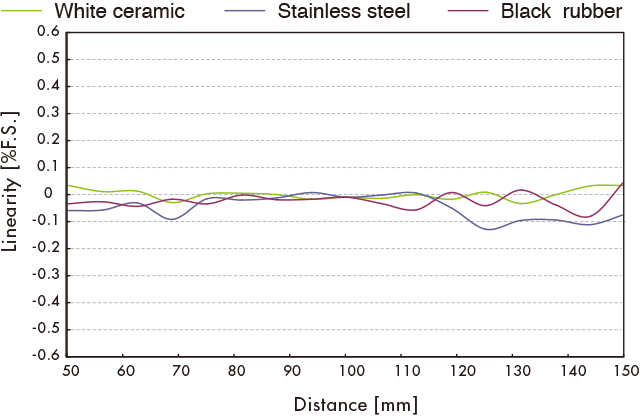

  • 100mm type Voltage Output

  • 100mm type Current Output

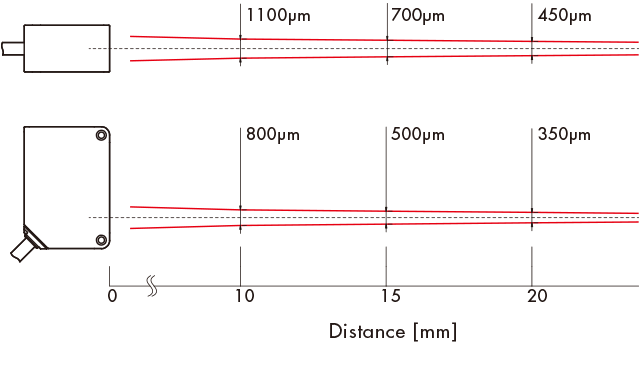

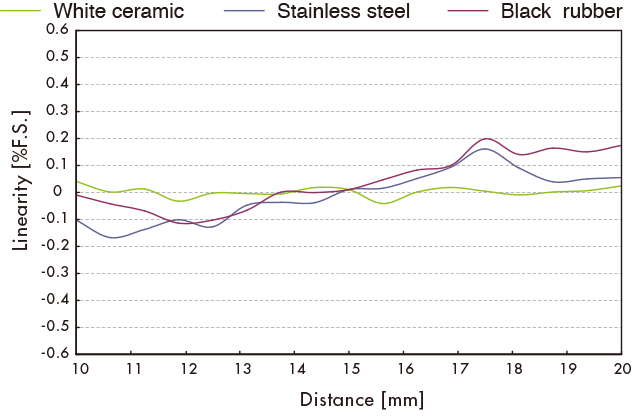

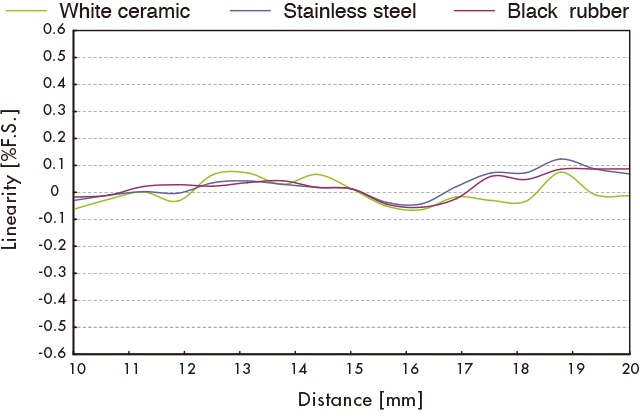

  • CD22□-15□□

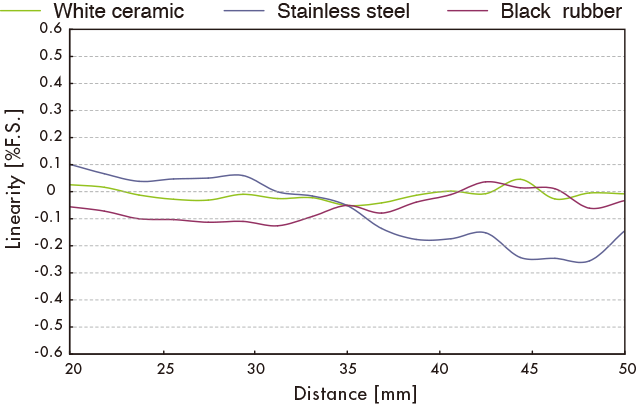

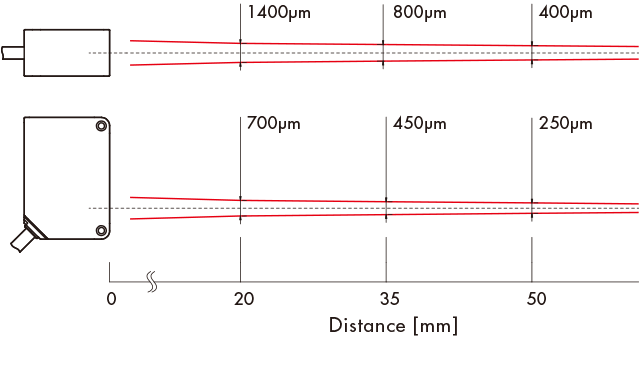

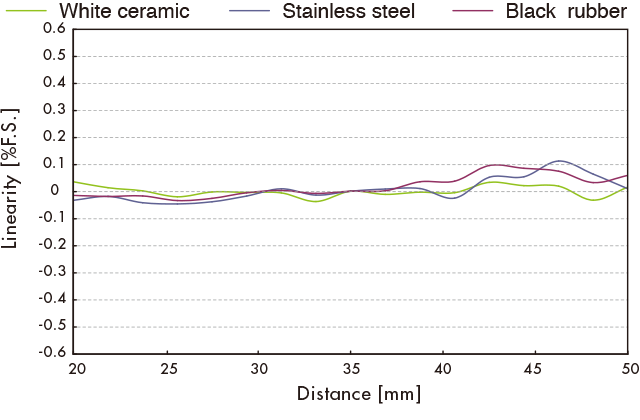

  • CD22□-35□□

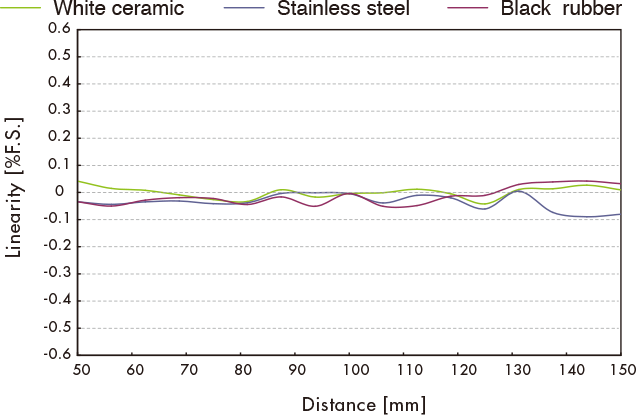

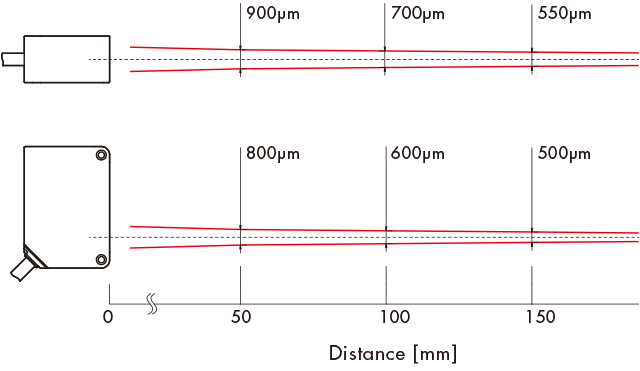

  • CD22□-100□□

  •
*4 With an average of 512 times
*5 Multi-drop connections by way of station number settings are not supported
