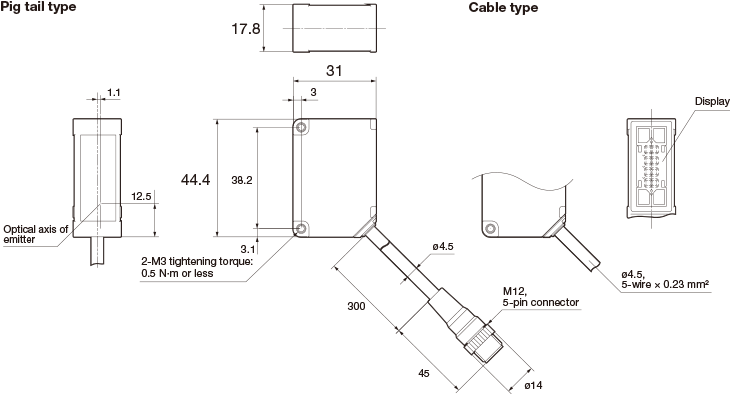

Dimensions

Sensor

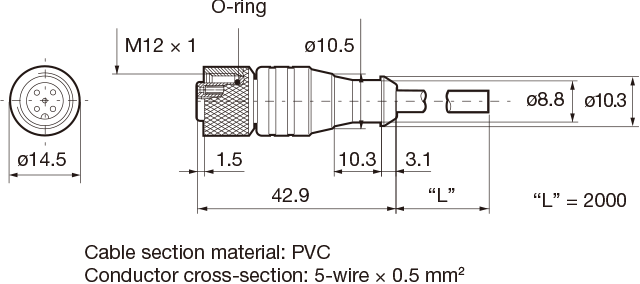

• Connector cables

  DOL-1205-G02M
  DOL-1205-G05M
  DOL-1205-G10M

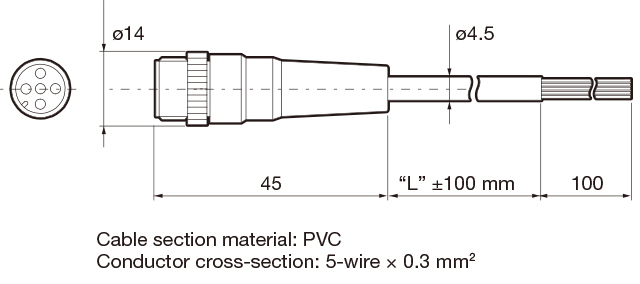

• Connector cable (robot cable specification)

  DOL-1205-G02M-R
  DOL-1205-G05M-R



Successor models

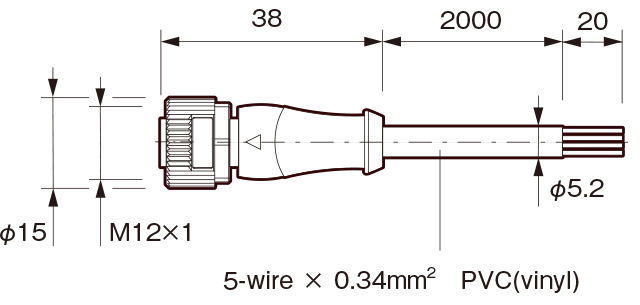

• YF2A15-020VB5XLEAX
  YF2A15-050VB5XLEAX
  YF2A15-100VB5XLEAX



• DOL-1205-G02M-R
  DOL-1205-G05M-R



Precautions for laser use

• This product emits a Class 1 (I) or Class 2 (II) visible laser beam that is compliant with JIS C 6802/IEC 60825- 1/FDA laser safety standards.
  Labels for applicable standards are affixed and attached to the sides of the sensor.



•

•Export to the United States

• If this product is to be exported to the United States, it is necessary to follow laser standards as stipulated by the American Food and Drug Administration (FDA). This product has already been submitted to the CDRH (Center for Devices and Radiological Health). If exporting to the United States, apply the attached seal to the product or replace the seal.
