Basic Knowledge of Vision Sensors
System Configuration
General Vision Sensors and OPTEX FA's Vision Sensors
We have higher performance vision sensor which has separated camera and controller and cost efficient all-in-one type vision sensor.

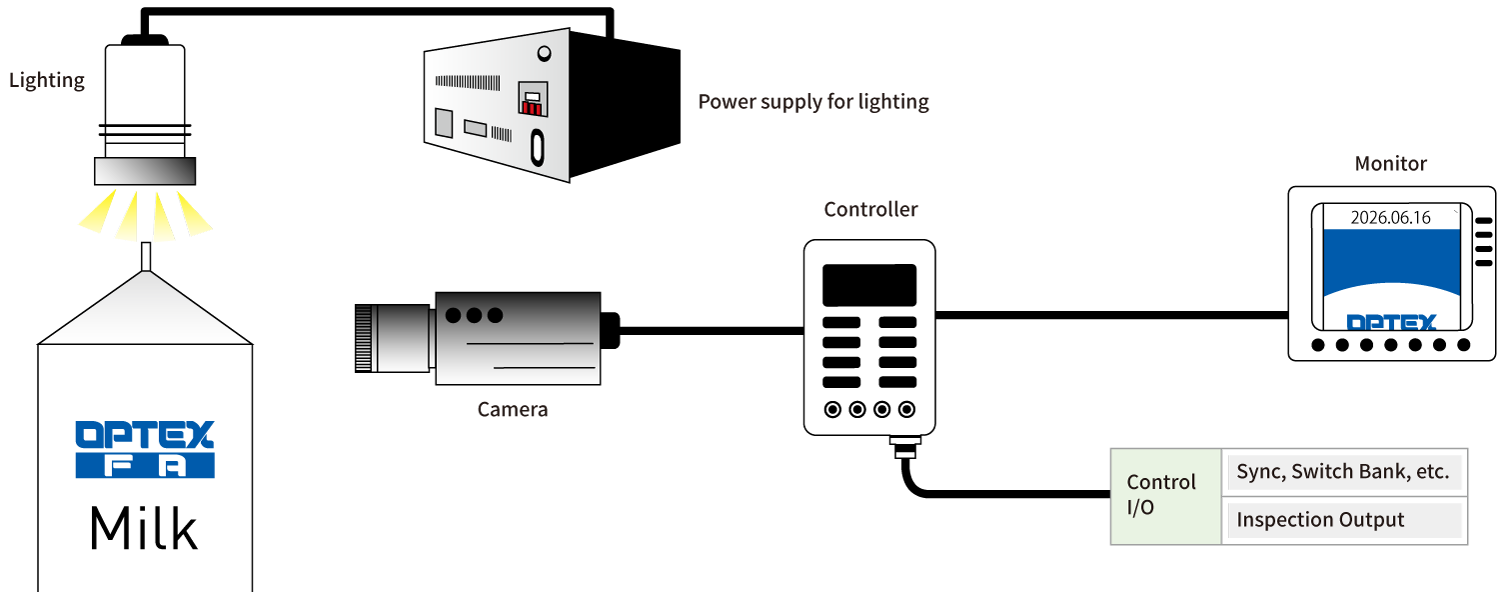

General System Configuration in Industry
It consists of camera, controller, monitor, lighting and power supply for the lighting.

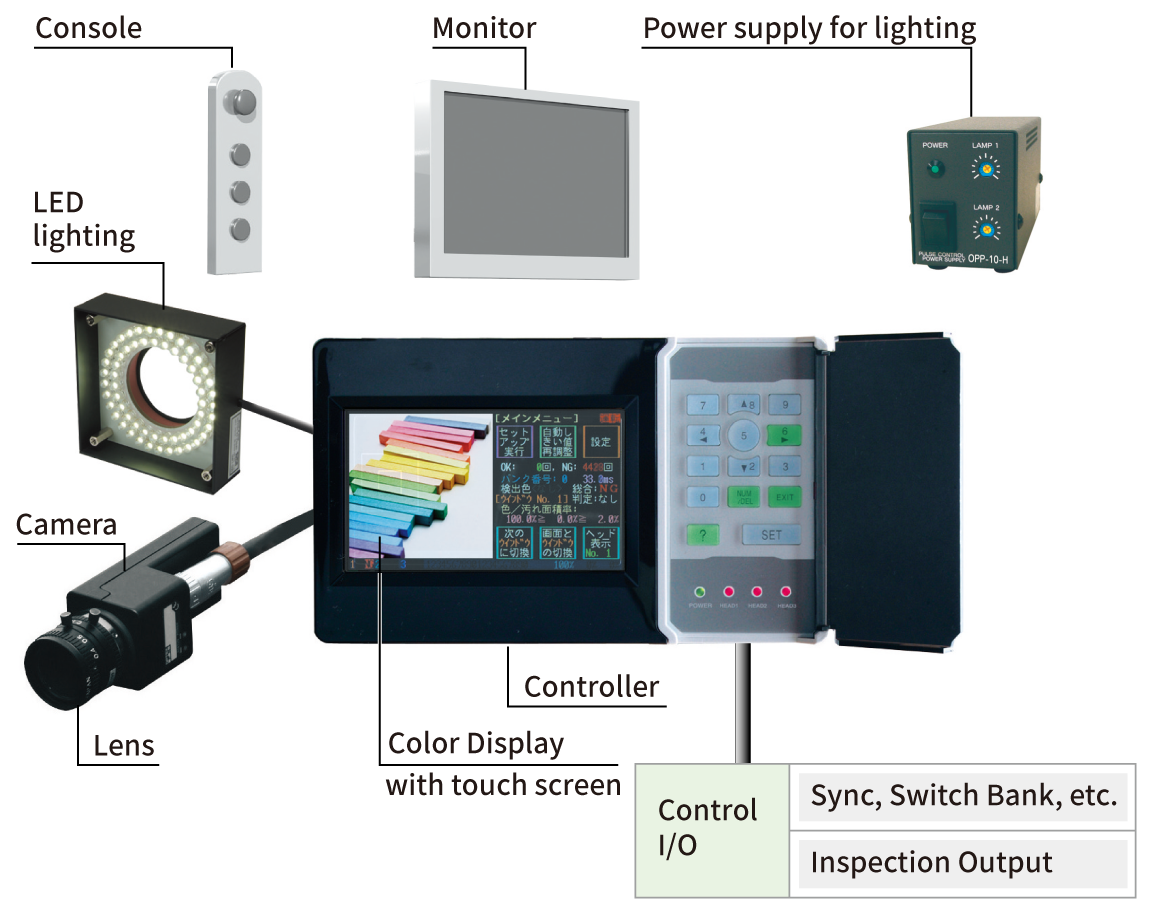

OPTEX FA MVS Vision Sensor
MVS series controller has display and power supply for LED lighting so the system will be configured with the controller, camera and LED lighting. Up to 3 cameras can be connected to a MVS controller which helps efficient installation and easy setup.

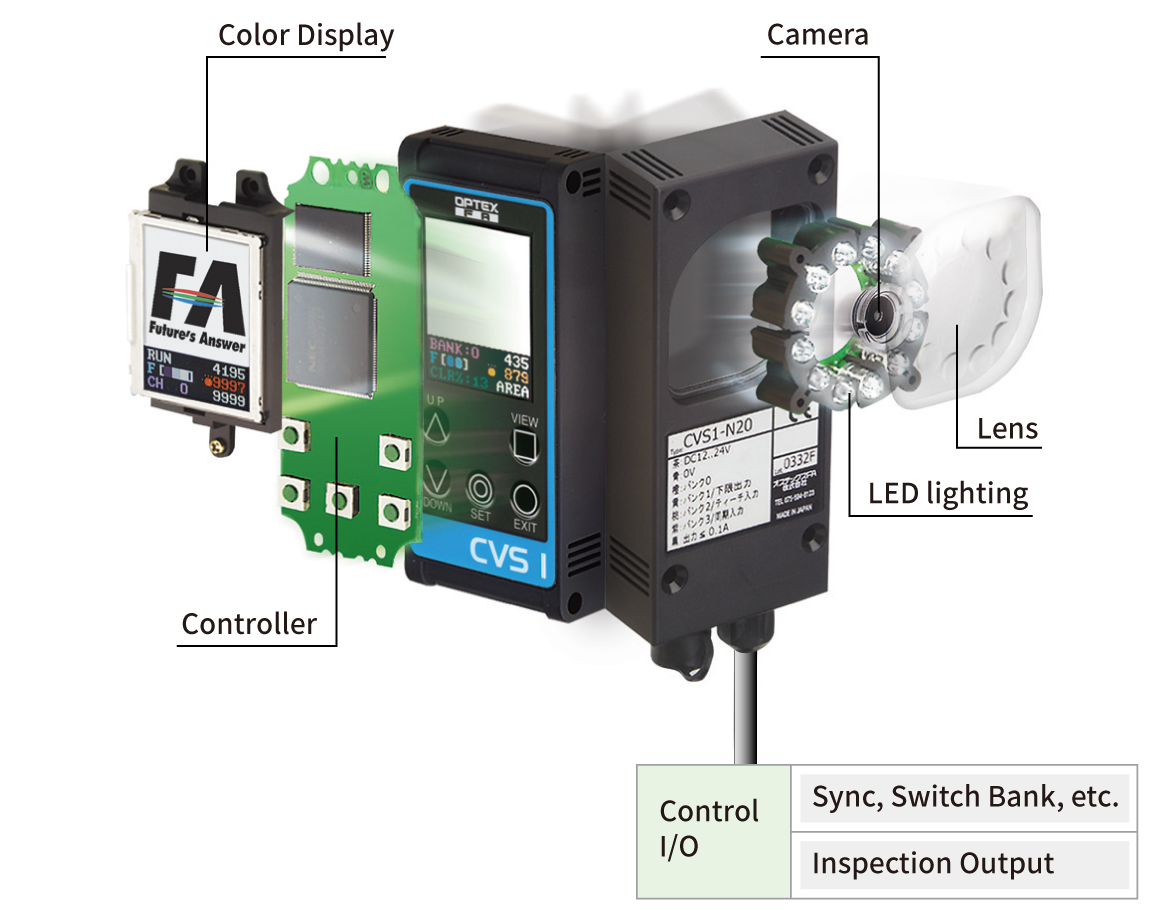

OPTEX FA All-In-One CVS Vision Sensor
CVS series vision sensor has all of camera, LED lighting, controller and display built-in so no other equipments are needed basically. System can be configured easily and cost efficiently.
