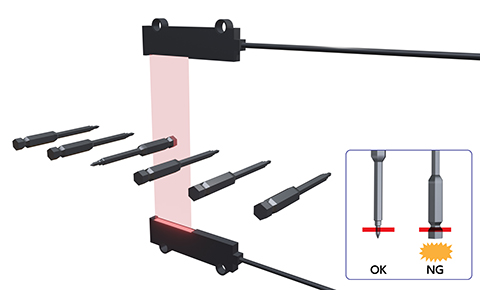

Controlling drill bit direction

The Fiber-Optec Sensor with NF‑TZ07 Screen Fiber‑Optic Cable determines whether the drill bits are being conveyed in the correct orientation. With its 32 mm light‑screen width, the NF‑TZ07 can detect differences in received light caused by the shape differences between the tip and the end of a drill bit, enabling reliable direction detection.

• Fiber-Optic Cables

  NF Series Wide beam type

  Fiber-Optic Cables for detecting with light screen



• Fiber-Optic Sensors

  D4RF/D4IF Series

  Easy-to-Read, Easy-to-Use, Fiber-Optic Sensors
