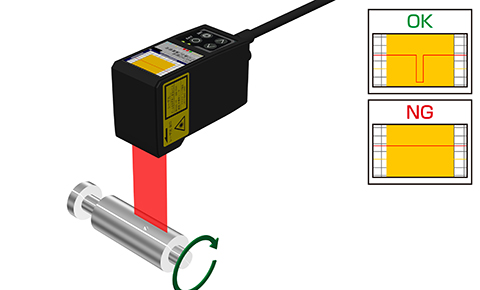

Detecting a hole on the shaft

Holes machined in cylindrical objects are detected and positioned using the LS‑100Cx Series. With a maximum field width of 27 mm, the LS‑100Cx can reliably detect holes even when their machining positions vary. By using a line‑shaped laser beam, it enables hole detection that cannot be achieved with small‑spot laser sensors.

• 2-dimentional Laser Displacement Sensors

  LS Series

  Line beam for fast, accurate measuring of height and width
