Bottle can dent and scratch inspection

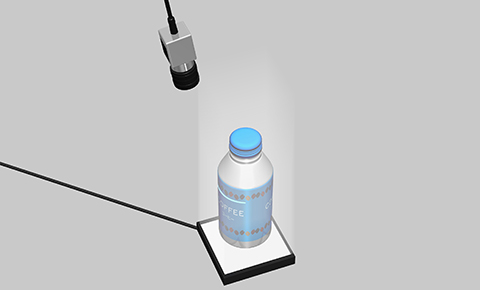

Dents and scratches on the surface of a bottle can are detected using a backlight and camera. When illuminated with bar lighting or low-angle ring lighting, scratches are difficult to detect due to the influence of the bottle can design and glossiness. If the bottle can is illuminated from below by a narrow directivity angle type backlight, the can surface irregularities can be emphasized while also ignoring the design.
Imaging example

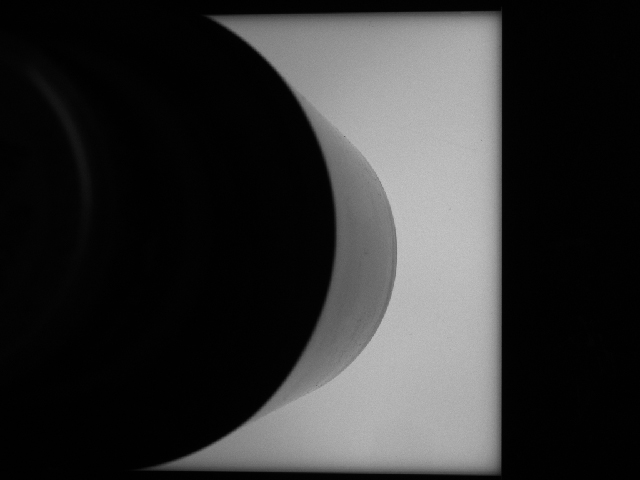

OK: No dents

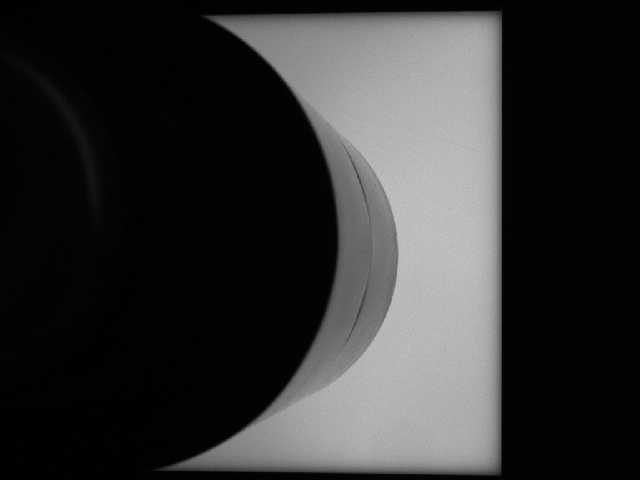

Not acceptable: Linear dent detected
Products Used
-
Sensing LED Backlight
OPF Series
Increased brightness compared with conventional models (narrow directivity angle type: 4×, diffuse type: 2.5×)
