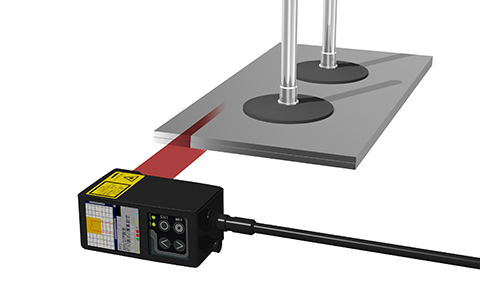

Checking double fed plate

Previously, the thickness of the plate was measured by calculating the values from two displacement sensors installed above and below. However, installing the sensors was difficult, and there was a risk of contact with the picking arm. With the LS Series, thickness and double‑feed detection can be performed with a single sensor. Because measurement can be made from the side or from an oblique angle, there is no need to worry about interference with the picking arm.

• 2-dimentional Laser Displacement Sensors

  LS Series

  Line beam for fast, accurate measuring of height and width
