Inspection of text on side mirrors

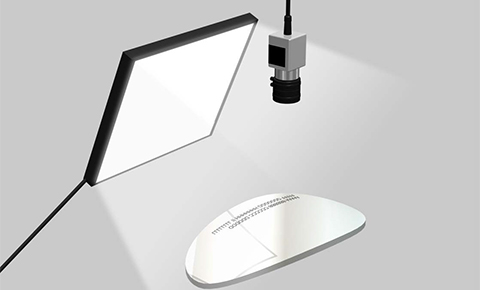

The text engraved on a vehicle side mirror is inspected using a camera and backlight. Coaxial lighting is suitable for capturing glossy surfaces, but the curvature of the mirror in addition to insufficient field of view causes uneven brightness within the viewing area. If a large-size, diffusion type OPF backlight is used, positioning the lighting and camera so that diffused light reflects off the mirror allows a wide area to be captured uniformly, enabling the inspection of the entire text.
Imaging example

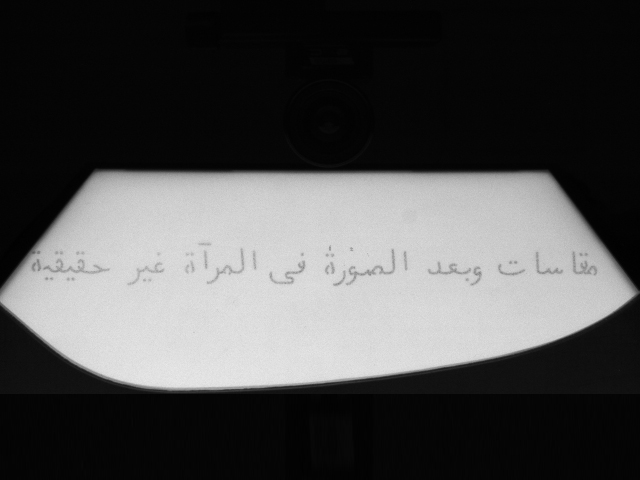

Back lightingOPF‐210 x 200W‐DF
OK: The entire text can be captured without uneven brightness.

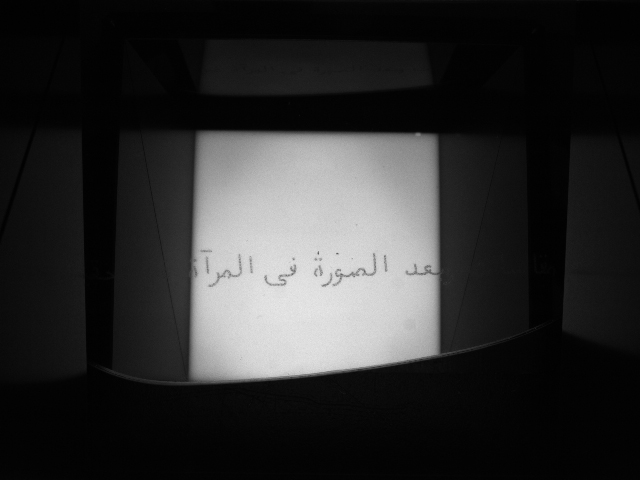

Coaxial lightingOPX - M100W
Not acceptable: The narrow field of view and curvature of the mirror cause uneven brightness.
Products Used
-
Sensing LED Backlight
OPF Series
Increased brightness compared with conventional models (narrow directivity angle type: 4×, diffuse type: 2.5×)
