Chip mounting positioning in high-temperature environment

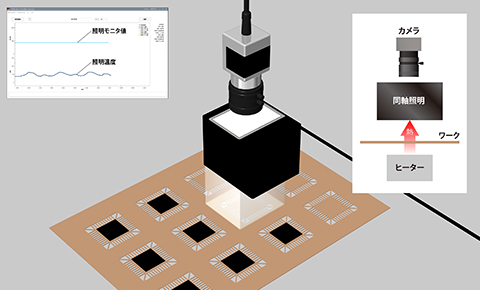

Before placing a chip on to a lead frame, positioning is performed with a camera and coaxial lighting. Since heating is performed from below for adhesion, the rise in ambient temperature causes the lighting brightness to fluctuate, leading to variations in positioning accuracy. With sensing coaxial lighting, not only can the lighting temperature be monitored from the OPPD-30E controller but a feedback function adjusts the brightness so that it remains constant even as the temperature increases. This minimizes the variations in inspection accuracy.

• Sensing Coaxial Lighting

  OPX Series

  Surface light source with a narrow directivity angle



• LED Lighting Controller with Ethernet Connectivity

  OPPD-30 Series

  Easy Ethernet connectivity
