Sheet material meander control/edge measurement

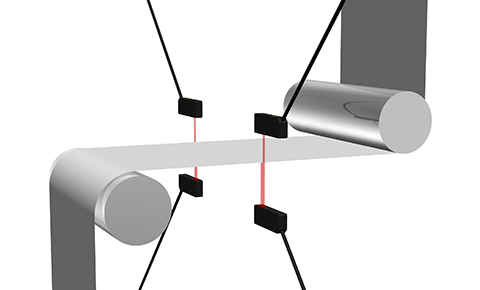

The TD1 Series of through-beam edge sensors help prevent sheet material meandering. Meandering during winding in the manufacturing process can result in abnormal quality, which causes wrinkles and elongation of sheet material. Using two TD1 Series sets allow for simple meander control at up to ±10 μm. Such high-accuracy meander control enables improved yield and predictive maintenance.
Products Used
-
Through-beam Edge Laser Sensors
TD1 Series
Edge Position Measurement for Any Workpiece
