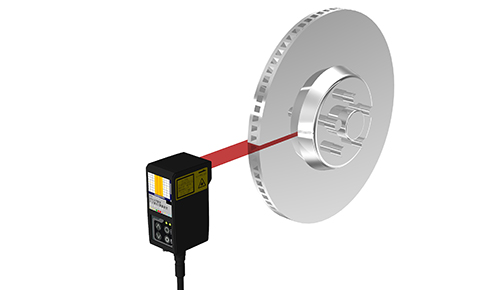

Measuring thickness of brake disk

Conventional measurements required two displacement sensors mounted on opposite sides of the disc to clamp it and measure its thickness. With the LS Series, thickness can be measured with a single unit, eliminating the need for difficult mounting. Since the clamping mechanism is no longer required, the precision‑critical alignment and installation work is also unnecessary.

• 2-dimentional Laser Displacement Sensors

  LS Series

  Line beam for fast, accurate measuring of height and width
