Mega-pixel OCR SensorMVS-OCR2 Series

DOWNLOAD

Easy Operation Mega Pixel OCR Vision Sensor with 8 Times Better Resolution

  • Easy 3 step setup
  • Prevents outflow of wrong printing to the market
MVS-OCR2 Series

Camera unit

  • MVS-OCR2

    Image sensor : CCD(color)
    Capture mode : Color/Monochrome
    *lens is not included. Please order separately

Camera cable

  • MVS-C2S

    2m Cable

    MVS-C5S

    5m Cable

    MVS-C5E

    5m Extension Cable

    MVS-C5SR

    5m Robotic Cable

  • MVS-C5ER

    5m Extension Robotic Cable

    MVS-C5W

    5m Cable with wiring for light (need MVS-LC05)

    MVS-C2S-OCR2

    2m Cable

    MVS-C5S-OCR2

    5m Cable

Controller

  • MVS-DN-E

    Camera No : Max 3
    I / F : Touch panel display,
    Ten-key
    Ethernet
    *PNP output type is MVS-DP-E

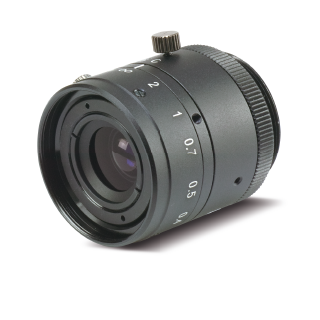

CCTV Lens (C mount)

  • FASV-03514V

    Focal Length : 3.5mm
    F No. : F1.4
    Filter size : -

  • FASV-0813V

    Focal Length : 8mm
    F No. : F1.3
    Filter size : M27 P0.5

  • FASV-1214V

    Focal Length : 12mm
    F No. : F1.4
    Filter size : M27 P0.5

  • FASV-1614V

    Focal Length : 16mm
    F No. : F1.4
    Filter size : M27 P0.5

  • FASV-2514V

    Focal Length : 25mm
    F No. : F1.4
    Filter size : M27 P0.5

  • FASV-5018V

    Focal Length : 50mm
    F No. : F1.8
    Filter size : M30.5 P0.5

Macro Lens for Mega-pixel (C mount)  The item image on the website is of a sample.

  • FASV-LDA4

    Focal Length : 4mm
    F No. : F4.16
    Filter size : M27 P0.5

  • FASV-LDA6.5

    Focal Length : 6.5mm
    F No. : F6.51
    Filter size : M27 P0.5

  • FASV-LDA10

    Focal Length : 10mm
    F No. : F10.27
    Filter size : M27 P0.5

  • FASV-LDA20

    Focal Length : 20mm
    F No. : F20.74
    Filter size : M27 P0.5

  • FASV-LDA30

    Focal Length : 30mm
    F No. : F30.01
    Filter size : M27 P0.5

  • FASV-LDA50

    Focal Length : 50mm
    F No. : F48.46
    Filter size : M30.5 P0.5

Polarizing filter

  • FASV-PL255-RS

    size : M25.5 P0.5

  • FASV-PL270-RS

    size : M27 P0.5

  • FASV-PL305-RS

    size : M30.5 P0.5

IR cut filters

  • FASV-IR270

    size : M27 P0.5

  • FASV-IR305

    size : M30.5 P0.5

Extension ring set

  • FASV-EXR-LT2

    5 piece set

I/O Connector cable

  • MVS-C3I0

    3m IEEE1284 half pitch 50p

Touch panel protective sheet

  • MVS-TP

External light

  • OPR-S55-28W

    Method : Direct ring
    Spec : White LED/DC12V, 5.1W
    Cable : 500mm

  • OPB-5015W2-B/
    OPB-10015W2-B/
    OPB-15015W2-B

    Method : Direct bar
    Spec : White LED/bracket installed
    DC12V, 5.1W
    Cable : 500mm

Filters for light

  • PL-OPR-S55-28

    Polarizing filter for
    OPR-S55-28

    DF80-OPR-S55-28

    Diffuse filter (80%) for
    OPR-S55-28

  • PL-OPB-5015

    Polarizing filter for
    OPB-5015W2-B

    DF80-OPB-5015

    Diffuse filter (80%) for
    OPB-5015W2-B

    DF-OPB-5015

    Diffuse filter (60%) for
    OPB-5015W2-B

  • PL-OPB-10015

    Polarizing filter for
    OPB-10015W2-B

    DF80-OPB-10015

    Diffuse filter (80%) for
    OPB-10015W2-B

    DF-OPB-10015

    Diffuse filter (60%) for
    OPB-10015W2-B

  • PL-OPB-15015

    Polarizing filter for
    OPB-15015W2-B

    DF80-OPB-15015

    Diffuse filter (80%) for
    OPB-15015W2-B

    DF-OPB-15015

    Diffuse filter (60%) for
    OPB-15015W2-B

Light holder

  • OPAU-150A

    Mounting bracket accessory for use with OPR-S55-28W

Mounting br acket for light

  • BKT-MVS-OPR

    Mounting br acket for
    OPR-S55-28W

  • BKT-MVS-OPDB-01

    BKT-MVS-OPDB-01-20

    BKT-MVS-OPDB-02

    Mounting bracket for
    OPB-5015W2-B/
    OPB-10015W2-B/
    OPB-15015W2-B

Cable for light

  • MVS-LC05

    Controller to lighting connection cable,
    500mm length





    OP-CB1-2

    2m Extension cable for light

    OP-CB1-3

    3m Extension cable for light

    OP-CB1-5

    5m Extension cable for light
