Separate ThermometersBS Series

DOWNLOAD

Set-up sensor amp separate type

  • IP67 waterproof sensor head
  • Heat-resistant up to 150°C (302°F)
    (with use of optional accessories)
  • Built-in easy-to-configure digital display
BS Series

Type key

Sensor head Specifications

Model BS-30T BS-05T BS-02T
Measurement
range		 0 to 500°C (32 to 932°F)
(Display: −20 to 520°C (−4 to 968°F))
Field of view ø30 mm/500 mm
(Refer to field of view)		 ø5 mm/100 mm
(Refer to field of view)		 ø2 mm/50 mm
(Refer to field of view)
Optics Silicone lens
Sensing element/
spectral response		 Thermopile/8 to 14 μm
Response time 0.5 sec./90%
Accuracy*1
（ε≒1.0）		 (±1% or ±2°C (3.6°F) of reading value, whichever is greater) ±1 digit
Repeatability ±1°C (1.8°F)
Emissivity (ε)
adjustment		 0.10 to 1.20 (0.01 per step)
Sighting function − Coaxial laser pointer Class 2
(IEC/JIS/FDA*2)
Ambient temperature 0 to 65°C (32 to 149°F),
With air purge/water-cooling jacket installed:
Air-cooled: 0 to 80°C (32 to 176°F),
Water-cooled: 0 to 150°C (32 to 302°F)		 0 to 50°C (32 to 122°F)
Ambient humidity 35 to 85% RH (no condensation)
Storage temperature −20 to 70°C (−4 to 158°F) –20 to 60°C (−4 to 140°F)
Vibration resistance 3G (20 to 50 Hz, according to IEC 60068-2-6)
Degree of protection IP67
Applicable
regulations		 EMC EMC Directive (2014 / 30 / EU)
Environment RoHS Directive (2011 / 65 / EU), China RoHS (MIIT Order No.32)
Environment FDA Regulations (21 CFR 1040.10 and 1040.11)
(except for deviations pursuant to Laser Notice No.56)
Applicable standards EN 60825-1
Weight Approx. 300 g (including connector cable) Approx. 400 g (including connector cable)
Material Aluminum
Standard included
accessories		 - Sensor head mounting bracket

*1 The measurement accuracy in the specification is limited to the calibration conditions of our factory.
*2 This product is classified as Class 2 by IEC 60825-1: 2014 according to Laser Notice No.56, FDA Guidance Document.
・Note that specifications are subject to change without prior notice for product improvement purposes.

Amplifier unit Specifications

Model BS-A BS-V
Analog output 4 to 20 mA 1 mV/°C
Analog output resolution 0.2°C (0.36°F)
Digital display
resolution		 1°C (1°F) (digital display on back of amplifier)
Functions Simple emissivity adjustment: TEACH function
Response time selection (DELAY) function:
1 (0.5 sec.) to 200 (approx. 10 sec.)
Supply voltage/
current consumption		 12 to 24 VDC ±10%/100 mA or less (at max. load)
Ambient temperature 0 to 50°C (32 to 122°F)
Ambient humidity 35 to 85% RH (no condensation)
Storage temperature –20 to 60°C (−4 to 140°F)
Vibration resistance 3G (20 to 50 Hz, according to IEC 60068-2-6)
Degree of protection IP65
Applicable
Regulations		 EMC EMC Directive (2014 / 30 / EU)
Environment RoHS Directive (2011 / 65 / EU)
China RoHS (MIIT Order No.32)
Safty FDA Regulations (21CFR 1040.10 and 1040.11)
(expect for deviations pursuant to Laser Notice No.56)*1
Weight Approx. 320 g (including cable)
Material Ring/housing: Glass-filled PBT, Rear / Cover: PC
Standard included
accessories		 Amplifier mounting bracket ×1,
amplifier mounting screw (M4) ×2

*1 This product is classified as Class 2 by IEC 60825-1: 2014 according to Laser Notice No.56, FDA Guidance Document.
・Note that specifications are subject to change without prior notice for product improvement purposes.

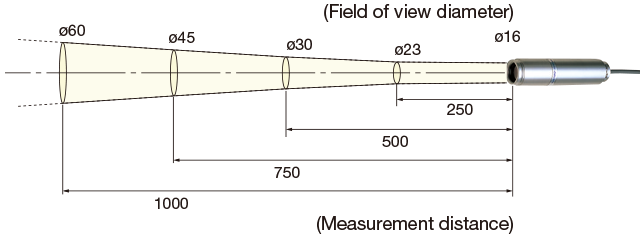

Field of view

(Unit: mm)

  • BS-30T/BS-30T

  • BS-05T/BS-05T

    • The field of view stated above are measurement diameters with an optical response of 90%. The size of the measurement target must be sufciently larger than the gures shown in the above diagram.

  • BS-02T


    • ・The laser marker points directly to the center of the field of view.
    ・The field of view stated above are measurement diameters with an optical response of 90%.
    ・The size of the measurement target must be approx. 1.5 times larger than the measurement diameters shown in the above diagram.

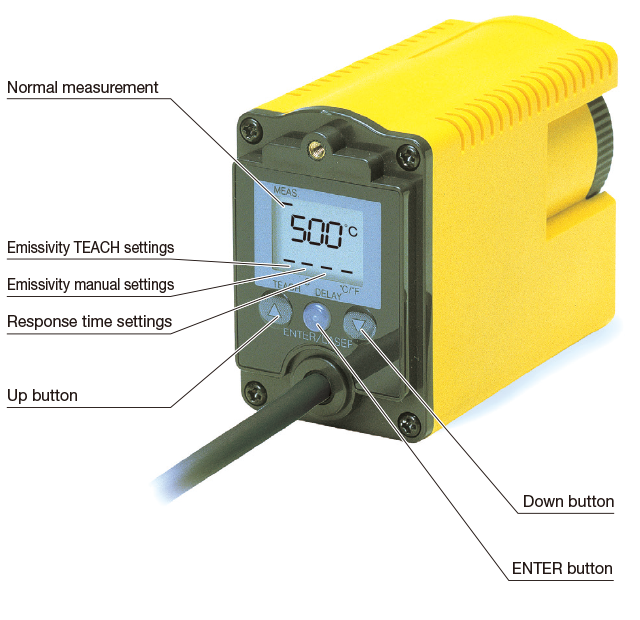

Operating panel
