All-in-one ThermometersBA Series

DOWNLOAD

Measurement temperature range: 0 to 500℃
Integrated sensor / amplifier

  • First-in-class integrated digital display type
  • Built-in coaxial laser marker
  • Two types of analog output
BA Series

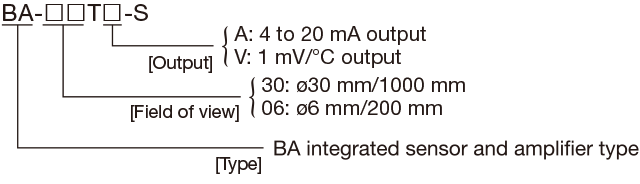

Type key

Specifications

Model BA-30TA-S BA-30TV-S BA-06TA-S BA-06TV-S BA-30TC

[Discontinued]

 BA-06TC

[Discontinued]
Measurement range 0 to 500°C (32 to 932°F) (Display: −20 to 520°C (−4 to 968°F))
Field of view ø30 mm/1000 mm
(Refer to field of view)		 ø6 mm/200 mm
(Refer to field of view)		 ø30 mm/1000 mm
(Refer to field of view)		 ø6 mm/200 mm
(Refer to field of view)
Optics Silicone lens
Sensing element/
spectral response		 Thermopile/8 to 14 μm
Response time 0.1 sec./90% response 0.5 sec./90% response
Accuracy*1
(ε≒1.0)		 (±1% or ±2°C (3.6°F) of reading value, whichever is greater) ±1 digit
Repeatability ±1°C (1.8°F)
Emissivity (ε)
adjustment		 0.10 to 1.20 (0.01 per step)
Digital display
resolution		 1°C (1°F) (digital display on back of main unit)
Analog output 4 to 20 mA,
Scalable		 1 mV/°C 4 to 20 mA,
Scalable		 1 mV/°C -
Analog output resolution 0.2°C (0.36°F) -
Relay output - Photo MOS,
350 mA/100 VDC
or less (1 output)
Output update time - 50 ms
Functions Sighting function: Coaxial laser marker Class 2 ( IEC / JIS / FDA ※2 )
Simple emissivity adjustment: TEACH function
Response time selection (DELAY) function: 1 (0.5 sec.) to 200 (approx. 10 sec.)
Supply voltage/
current consumption		 12 to 24 VDC ±10%/150 mA or less (at max. load)
Ambient temperature 0 to 50°C (32 to 122°F)
Ambient humidity 35 to 85% RH (no condensation)
Storage temperature −10 to 60°C (14 to 140°F)
Vibration resistance 3G (20 to 50 Hz, according to IEC 60068-2-6)
Degree of protection IP65
Applicable
regulations		 EMC EMC Directive (2014 / 30 / EU)
Environment RoHS Directive (2011 / 65 / EU), China RoHS (MIIT Order No.32)
Safety FDA Regulations (21 CFR 1040.10 and 1040.11)
(except for deviations pursuant to Laser Notice No.50)
Applicable standards EN 60825-1
Weight Approx. 350 g (including cable) Approx. 360 g (including cable)
Material Ring/housing: Glass-filled PBT, Rear: PSF, Cover: PC
Standard included
accessories		 Main unit mounting bracket ×1, mounting screw (M4) ×2

*1 The measurement accuracy in the specification is limited to the calibration conditions of our factory.
*2 This product is classified as Class 2 by IEC 60825-1: 2007 according to Laser Notice No.50, FDA Guidance Document.
• Note that specifications are subject to change without prior notice for product improvement purposes.

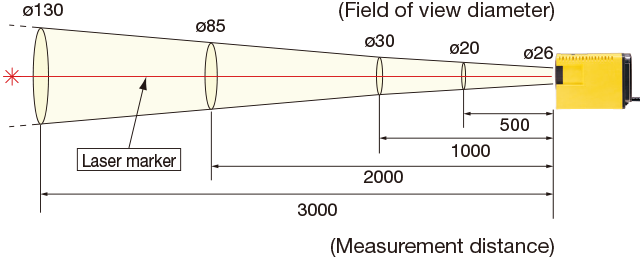

Field of view

(Unit: mm)

  • BA-30TA-S / BA-30TV-S

  • BA-06TA-S / BA-06TV-S

  • BA-30TC

  • BA-06TC


The laser marker points directly to the center of the eld of view. The elds of view stated above are measurement diameters with an optical response of 90%. The size of the measuremen

Operating panel

  • BA-30TA-S / BA-30TV-S /
    BA-06TA-S / BA-06TV-S

  • BA-30TC / BA-06TC


Output settings（BA-30TC / BA-06TC only）

  • HI/ON: Output turns on when the measurement is equal to or greater than the setting.

    LO/ON: Output turns on when the measurement is equal to or greater than the setting.

    1. Align the menu bar to the HI/ON or LO/ON position, and then press the ENTER button.
    2. Press the △ or ▽ button to change the setting, and then press the ENTER button to register the setting.
    3. Press the △ or ▽ button to set ON (enabled) or OFF (disabled), and then press the ENTER button.

    When setting to ON, output will be turned on when the ENTER button is pressed.

    ・During output, the ENTER button will illuminate at the same time the laser is irradiated.
    When the HI setting is smaller than the LO setting, output will turn on only between HI and LO.
