Digital Amplifier Separate TypeDS Series

DOWNLOAD

Water resistant sensor head usable even in water-splashing areas

  • Various sensor heads
  • Visible red laser
  • Coaxial reflective design
DS Series

Options/Accessories

Reflector

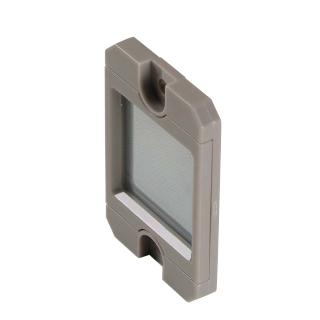

  • MP-45

    Included with DSR-800 and DSR-5000

  • P250F

    Included with DSR-5000

  • MP225

    225 × 225 mm reflective sheet Can be cut to any size freely using scissors. (Adhesive type)

Connector cableDiscontinued and successor models of connector cables

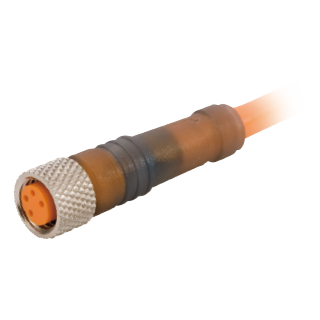

  • Straight

    JCN-S

    Cable length: 2 m

    JCN-5S

    Cable length: 5 m

    JCN-10S

    Cable length: 10 m

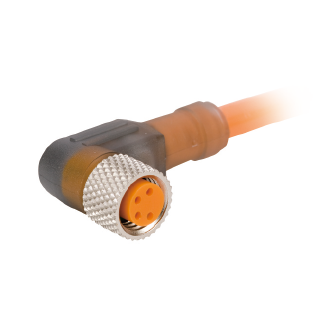

  • L-shaped

    JCN-L

    Cable length: 2 m

    JCN-5L

    Cable length: 5 m

    JCN-10L

    Cable length: 10 m

  • Successor models

    • Straight

      M84CN-2S

      Cable length: 2 m

      M84CN-5S

      Cable length: 5 m

      M84CN-10S

      Cable length: 10 m

    • L-shaped

      M84CN-2L

      Cable length: 2 m

      M84CN-5L

      Cable length: 5 m

      M84CN-10L

      Cable length: 10 m

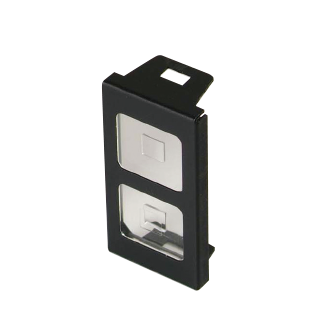

Lens attachment

  • BL-W130L-1

    Line beam approx. 40 × 1 mm (at a distance of 300 mm)
    Area beam approx. 35 × 35 mm (at a distance of 300 mm)

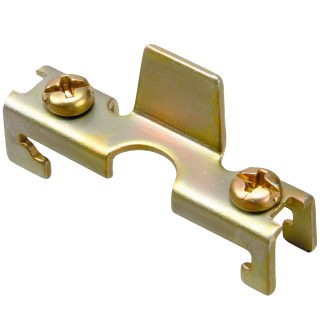

End plate

  • BEF-EB01-W190

    (2 pieces)

Extension cable for emitter

  • DSCN-T3-M8

    Cable length: 3 m
    Connects to the connector type through-beam type sensor head emitter, cable extends to 5 m.

  • DSCN-D3-M8

    Cable length: 3 m
    Connects to the connector type through-beam type sensor head receiver, cable extends to 5 m.
