Potentiometer Fiber-Optic SensorsV2RF series

DOWNLOAD

Simple & cost effective

  • Potentiometer type
  • Degree of protection: IP66
  • Mounting holes for M3 screws
V2RF series

Circuit diagram

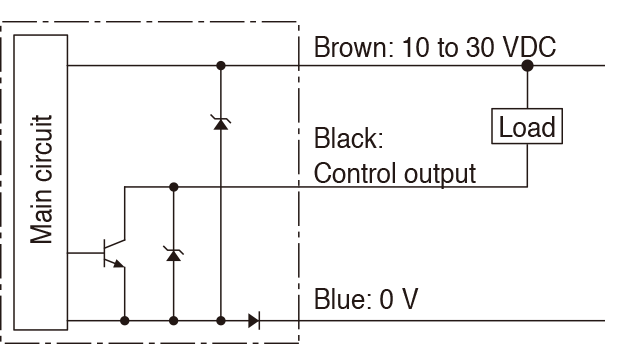

  • NPN type

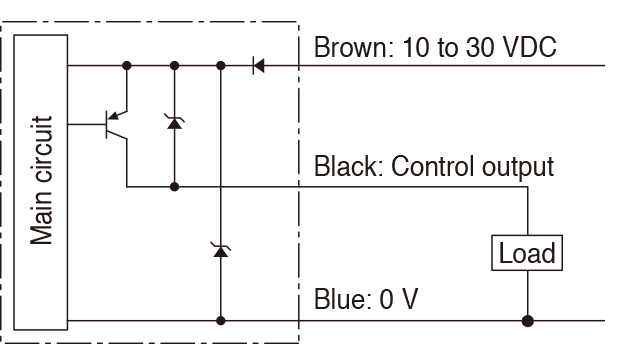

  • PNP type

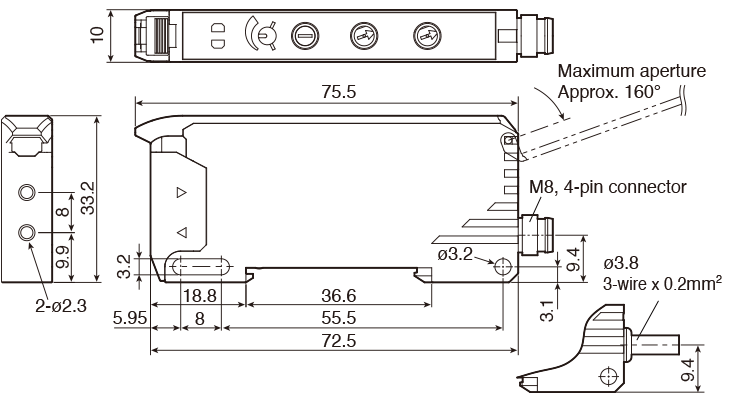

Dimensions

Unit : mm

Connector cable (optional)

  • JCN-S, JCN-5S, JCN-10S

  • JCN-L, JCN-5L, JCN-10L

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L
