EtherNet/IP Communication UnitUC1-EP

DOWNLOAD

Management and control of sensors over a network

  • Compact slave adapter to EtherNet/IP network
  • Mixed connection with fiber sensor and displacement sensor amplifiers
  • Wiring and space saving
UC1-EP

Connector Pin Assignments

  • UC1

    Network connector
    (Port 1 / Port 2, M12)    		 Power connector (M8)
    1 Tx+ 12 to 24 VDC
    2 Rx+ No connection
    3 Tx− GND
    4 Rx− No connection


    * Make sure to turn off power supply, befor connecting or disconnecting a network cable or sensor to / from the UC1 unit.

  • M8 Connector cable

    M84CN Series
    1 12 to 24 VDC (Brown)
    2 No connection
    3 GND (Blue)
    4 No connection

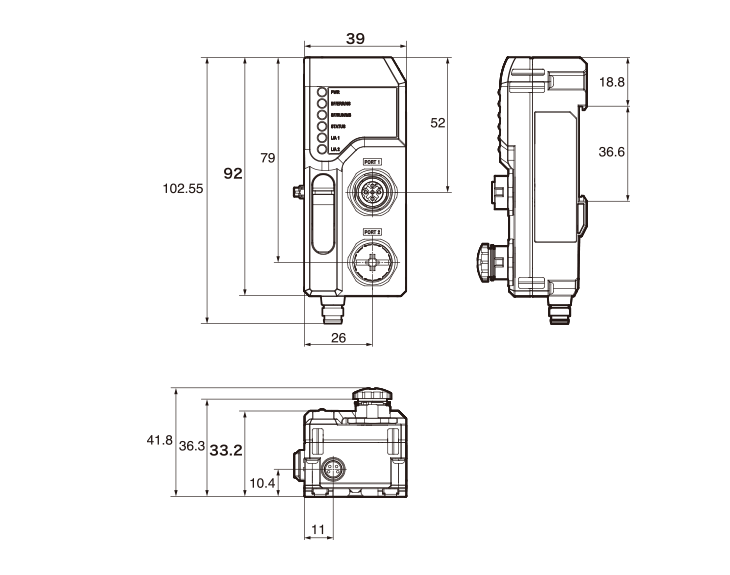

Dimensions

Unit : mm

  • UC1-EP
