Small object detection with spot lens and fine core

  • A small spot focus lens with adjustable spot size is available
  • Suitable for handling small objects with a ø0.125 mm fine core (NF-DP01)
SMALL OBJECT DETECTION Series

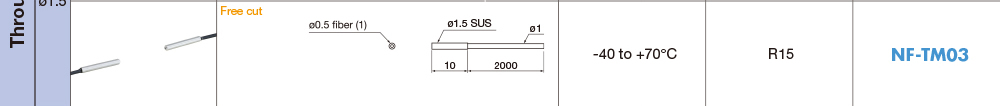

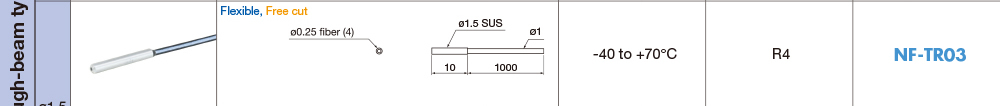

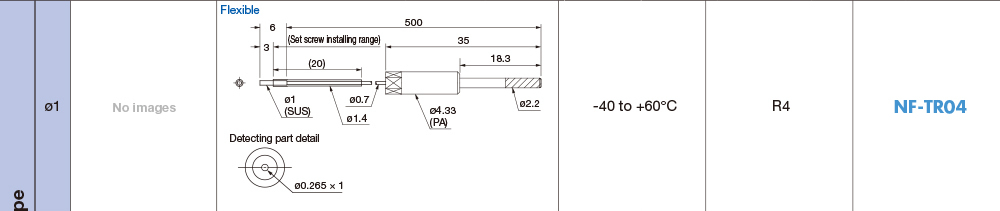

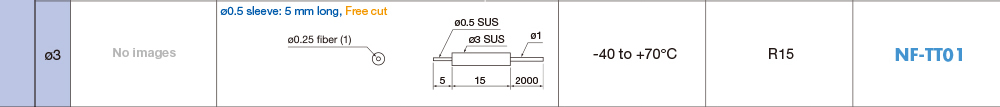

Small object detection fiber units (through-beam type)

Download of Sensing Distance List.

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40°C.
•The values for the smallest detectable object are typical values when set for the best to detect small objects on the fiber amplifier side.
