Fiber-Optic CablesNF Series Sleeve/Side view type

DOWNLOAD

The fine tip makes mounting highly flexible
and adjusting position very easy

  • Long sleeve type can be bent (Straight view type)
  • Side angle light beam provides optimal detection in narrow places (Side view type)
NF Series Sleeve/Side view type

Flexible mounting

Long sleeve type can be bent (up to R10 mm). Fine tuning of the sensing position is possible even after the mounting position has been determined.

Easy position adjustment

Position adjustment for the detection point can be easily performed when mounting due to the fact that the sleeve type has a fine tip and the workpiece is not hidden by the tip even when approaching the workpiece for detection.

Possible to detect objects in narrow space

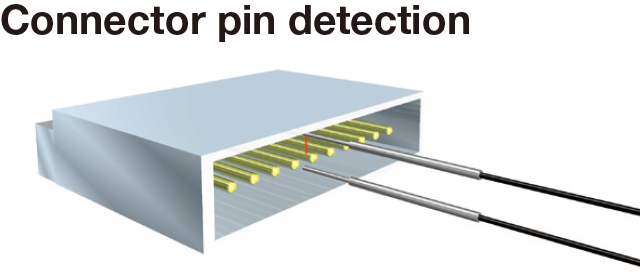

  • The fine tipped side view sleeve type eliminates mounting space problems. Optimal for detection in complex areas, such as for connector pin detection.

Ultra-narrow view and ultra-thin types

Aperture angle of 2° or less

  • The ultra-narrow view, made possible by limiting the light spread as much as possible, minimizes light diffusion, making this type ideal for wafer mapping.

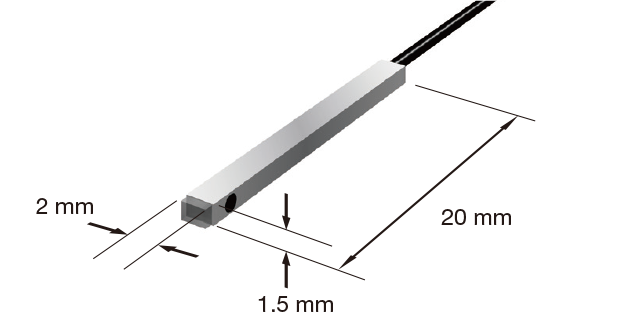

Ultra-thin type: NF-TG04

  • At just 1.5 mm thick, the ultra-thin design enables installation even with extremely limited space. The side view type also makes handling fiber cables incredibly easy.
